Overview

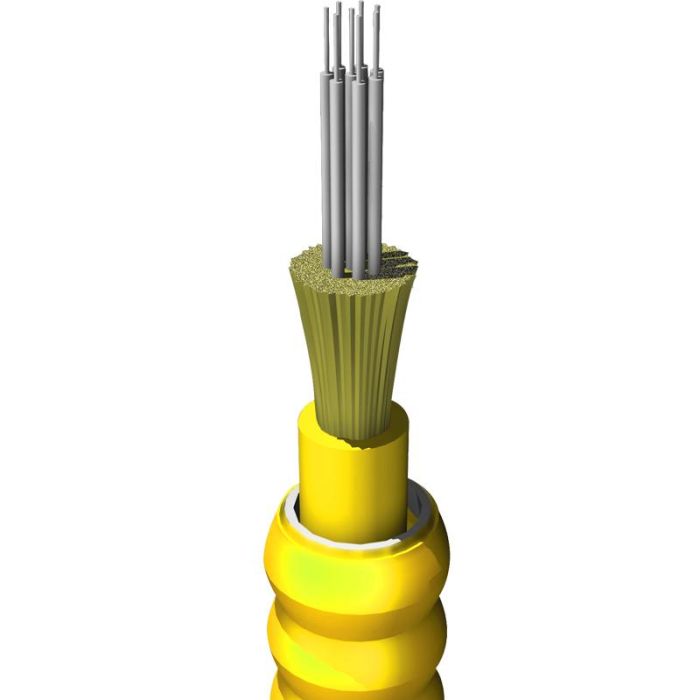

The AFL Armored Tight Buffered Circular Premise Cable is a high-performance fiber optic cable designed for reliable communication in demanding environments. Featuring a 6-fiber configuration with 9/125um singlemode fiber, this cable is engineered to provide the necessary protection for data transmission in industrial settings.
The cable incorporates an ETL-listed, flame-retardant jacketed aluminum interlocking armor. This construction offers an optimal balance of structural ruggedness, installation flexibility, and low weight, making it well-suited for routing inside buildings where additional durability or rodent resistance is required. It is not intended for direct burial applications.
Key Features
-
6-Fiber Construction
Features 6 individual fibers for efficient signal distribution in premise networking. -
9/125um Singlemode Fiber
Optimized for long-reach, high-bandwidth data transmission with minimal signal loss. -
Aluminum Interlocking Armor
Provides exceptional mechanical protection against physical impact and crushing. -
Flame Retardant Jacket
Ensures safety and compliance for indoor installation environments. -
Rodent Resistance
Added protection helps maintain network integrity in areas prone to pest damage. -
Optimized Flexibility
Interlocking armor design allows for easier routing through conduits and cable trays compared to rigid alternatives.
Applications
- Indoor/Outdoor premise networking
- Industrial manufacturing plants
- Routing in environments requiring extra cable ruggedness
- Building backbones where rodent resistance is essential
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Fiber Count | 6 |
| Fiber Type | Singlemode (9/125um) |
| Cable Diameter | 4.4mm |
| Armoring | Aluminum Interlocking Armor |
| Jacket Type | Flame Retardant |
| Length | 1640ft |
| Rating | ETL Listed |
Frequently Asked Questions
Is this cable suitable for direct burial?
No, this cable is specifically designed for indoor or premise applications and is not recommended for direct burial.
What is the fiber count for this cable?
This specific unit contains 6 fibers.
What is the primary benefit of the interlocking armor?
The armor provides a balance of rugged protection, flexibility, and low weight for easier installation in industrial sites.
Does this cable provide protection against rodents?
Yes, the aluminum interlocking armor provides increased resistance against rodent damage.
Is the cable length guaranteed?
The allowable cable length for shipping and billing is -0/+10% of the stated length.
