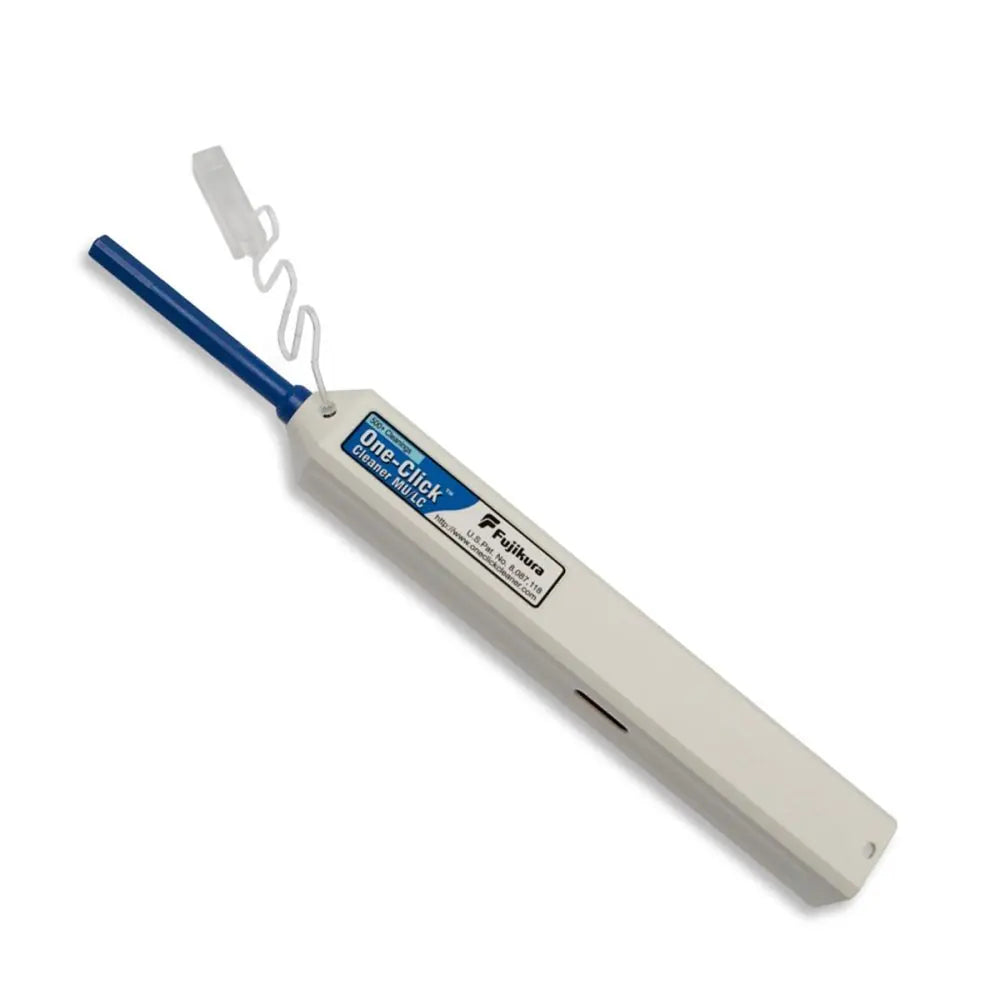

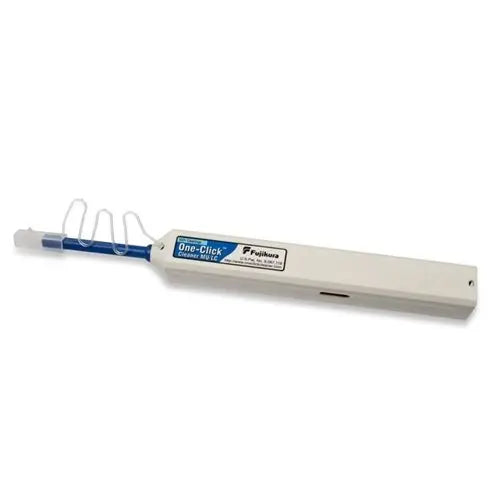

AFL 8500-05-0002MZ One-Click Cleaner LC/MU 1.25mm Ferrule

Overview

The AFL 8500-05-0002MZ One-Click® Cleaner is a specialized cleaning tool designed for fiber optic connectors with a 1.25 mm ferrule, specifically LC and MU connectors. It features a patented, push-to-clean design that rotates optical grade tape across the connector end-face, effectively removing dust, oil, and various contaminants in a single, consistent stroke.

Designed for both field and laboratory environments, this cleaner is built to perform effectively in high-density panels. It is capable of cleaning connectors on exposed patch cables as well as those seated deep within bulkhead adapters, supporting both dry and wet cleaning applications. The tool provides over 500 cleanings, offering a cost-effective and repeatable solution for maintaining signal integrity.

Key Features

• Single-Action Design
  A simple push-to-clean motion provides a reliable, repeatable cleaning stroke every time.
• Rotating Cleaning Tip
  The tip rotates during the cleaning stroke to sweep the entire end-face, preventing debris from being ground into the fiber.
• Audible Click Confirmation
  An audible indicator signals that the cleaning cycle is complete, ensuring consistency for the technician.
• High-Density Compatibility
  The slender design is optimized for reaching into tightly packed fiber panels and bulkhead adapters.
• Extended Tip Range
  The cleaning tip is adjustable from 1.77 inches to 3.15 inches to suit different installation depths.
• Integrated Tape Advance
  The internal mechanism automatically advances fresh cleaning tape for each new connection, maintaining optimal hygiene.
• Dry or Wet Cleaning
  Supports standard dry cleaning for dust or wet cleaning for stubborn oil deposits when used with compatible cleaning fluids.

Applications

• LC and MU connector cleaning
• Data center high-density fiber patching
• Field maintenance of fiber optic networks
• Laboratory testing environments
• Cleaning connectors inside bulkhead adapters

Technical Specifications

Frequently Asked Questions

What connectors is this tool compatible with?
It is specifically designed for LC and MU connectors that use a 1.25 mm ferrule.

Can I use this cleaner in a bulkhead adapter?
Yes, it is designed to clean connectors both on jumpers and inside bulkhead adapters.

How many cleanings can I get from one tool?
Each cleaner provides over 500 cleaning cycles.

Does this support wet cleaning?
Yes, it supports dry cleaning for loose dust and can be used for wet cleaning when paired with appropriate fiber optic cleaning fluid.

How do I know the cleaning is done?
The tool emits an audible click when a full, successful cleaning stroke has been performed.
