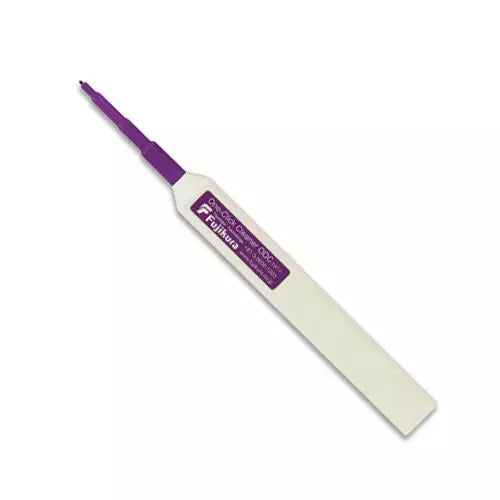

The AFL 8500-05-0004MZ One-Click Cleaner is a specialized tool engineered for cleaning ODC-style outdoor fiber optic connectors and exposed 1.25mm ferrules. Designed for high-density environments and field use, this tool removes common contaminants such as dust and oils from fiber end-faces.
Its mechanical cleaning action provides consistent results with every use. Each click automatically advances the cleaning tape to a fresh surface, ensuring that dirt is not redistributed. The device features an adjustable tip length to accommodate different access requirements, making it a versatile tool for network technicians and installers.
Key Features
-
Mechanical Cleaning Action
Ensures consistent and effective removal of contaminants on the fiber end-face with every cycle. -
Automated Tape Advance
Automatically shifts the cleaning tape to a fresh section, preventing recontamination of the connector. -
High Capacity
Capable of performing up to 500 cleanings per unit, providing long-term value for maintenance tasks. -
Adjustable Cleaning Tip
Extends from 1.77 inches to 3.15 inches, allowing for precise cleaning in varied access scenarios. -
Compact Design
The tool has an overall length of 6.88 inches, making it easy to carry in field technician kits. -
Versatile Application
Specifically designed for both plug and socket styles of ODC connectors, as well as standard 1.25mm ferrules.
Applications
- ODC outdoor connector maintenance
- Cleaning 1.25mm ferrule fiber endpoints
- Field installation and repair of fiber optic networks
- Data center fiber infrastructure maintenance
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | 8500-05-0004MZ |
| Cleaning Capacity | 500 cleanings |
| Tip Extension | 1.77" to 3.15" |
| Overall Length | 6.88" |
| NSN | 7920016091522 |
Frequently Asked Questions
What type of connectors is this tool compatible with?
It is designed for ODC plug and socket styles, as well as exposed 1.25mm fiber ferrules.
How many cleans can I get from one tool?
The tool is designed to deliver up to 500 cleanings before needing replacement.
Does the device require any cleaning solvents?
No, the One-Click Cleaner uses a dry micro-fiber cleaning tape and does not require the use of external solvents.
Is the cleaning tip adjustable?
Yes, the tip length can be adjusted between 1.77 inches and 3.15 inches.
Does it clean automatically?
The mechanical action provides the cleaning, and the device automatically advances the tape after every click.
