Overview

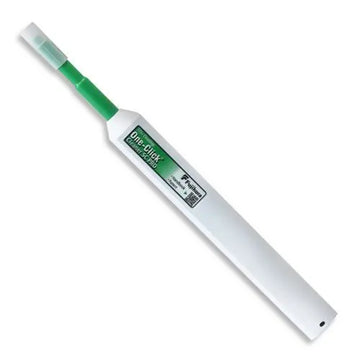

The AFL 8500-05-PRO-SC One-Click® Cleaner SC PRO is a high-performance fiber optic cleaning tool designed for rapid, effective decontamination of SC connector end-faces. Engineered for professional use in data centers, telecommunications facilities, and field environments, this cleaner handles both patch cords and bulkhead-mounted adapters with ease.
Featuring a proprietary integrated guide cap, the tool removes the need for constant cap switching, significantly increasing efficiency during large-scale network maintenance. Each actuation advances fresh, optical-grade cleaning tape and rotates the cleaning tip to thoroughly remove dust, oil, and debris from the fiber surface without causing damage. The unit is rated for 775+ cleanings, offering an extended service life for high-volume network tasks.
Key Features
-
Integrated Guide Cap
Eliminates the need for manual cap adjustments, reducing total cleaning time by up to 50%. -
High Capacity
Delivers over 775 cleanings per unit for extended usage in busy environments. -
Rotational Cleaning Action
Tip rotates during the cleaning cycle to ensure full coverage of the fiber ferrule face. -
Dry and Wet Compatibility
Supports dry cleaning or can be used with compatible cleaning fluids for stubborn residue. -
Durable Housing
Ergonomic, rugged construction facilitates use in tight rack spaces and high-density environments. -
Safe Operation
Gentle on delicate fiber end-faces while effectively removing microscopic oil and dust.
Applications
- Data Center maintenance
- FTTH (Fiber to the Home) network installs
- Factory and manufacturing testing
- Field maintenance of SC-based fiber networks
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | 8500-05-PRO-SC |
| Part Number | 812X912 |
| Cleaner Type | One-Click IBC (In-Bulkhead Cleaner) |
| Connector Compatibility | SC |
| Cleans per Unit | 775+ |
Frequently Asked Questions
Can this cleaner be used for wet cleaning?
Yes, it supports wet cleaning when used in combination with an approved fiber connector cleaning fluid.
Is the guide cap included?
Yes, the unit features an integrated, switchable guide cap for both adapters and patch cords.
How many cleans does each unit provide?
This cleaner provides 775+ cleans.
What connector types is this compatible with?
The 8500-05-PRO-SC is specifically designed for SC connectors.
Can I replace the cleaning tape?
These units are typically designed as single-use, non-refillable devices for optimal performance.
