AFL Apex™ X-2 Fiber Optic Closure with Slack Basket, Strain Relief Kits and Ground Lugs

Overview

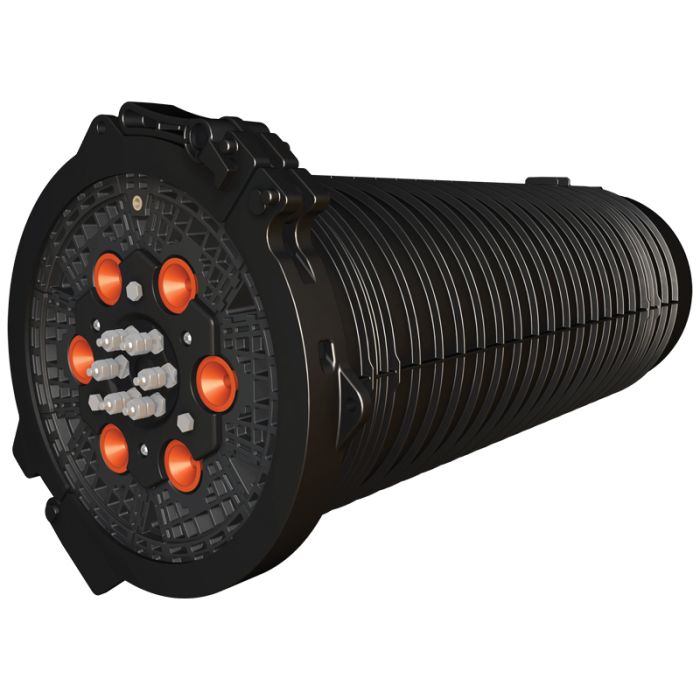

The AFL Apex™ X-2 is a robust, sealed fiber optic splice closure engineered for the protection of optical fiber splices in both above-grade and below-grade environments. Utilizing a butt configuration, this closure is built for demanding outside plant conditions, providing reliable environmental protection for high-density fiber networks.

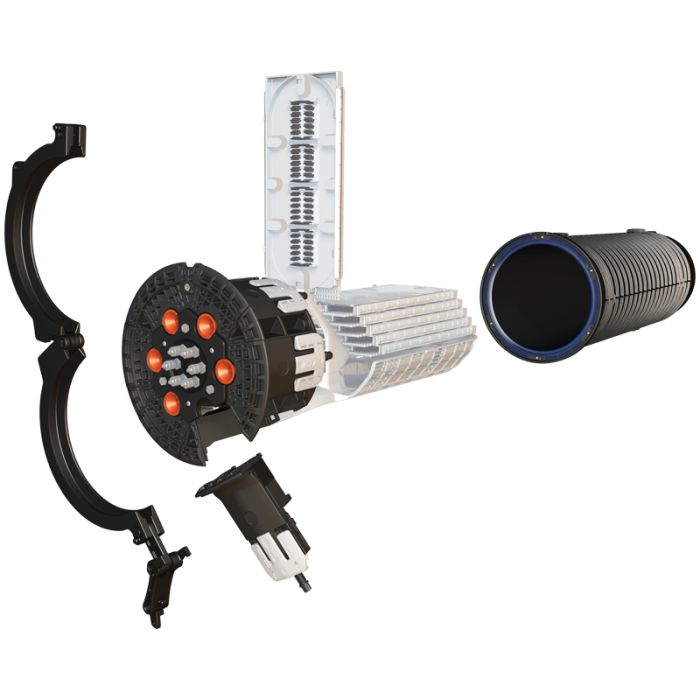

The Apex X-2 features a unique wedge-based cable sealing system that allows for individual cable port management without disturbing existing fibers. Its internal design includes a dedicated slack storage basket with integrated tie-down points and hinged, lockable splice trays, facilitating organized fiber and tube management for long-term maintenance accessibility.

Key Features

• Tool-Less Cable Ports
  Features individual cable sealing ports with a tool-less release mechanism for simplified installation.
• Gel-Based Sealing
  Employs a gel sealing system that ensures environmental integrity and protects against moisture ingress.
• Hinged Splice Trays
  Includes hinging, lockable splice trays that provide secure, organized storage and easy access to splices.
• Integrated Slack Management
  Equipped with a plastic slack storage basket with multiple tie-down points for effective tube and fiber slack control.
• High-Capacity Splicing
  Supports up to 432 single fusion or 864 mass fusion splices, accommodating standard and rollable ribbon fibers.
• Modular Design
  Supports up to six cable ports with ground lugs and allows for multi-drop entry kits for increased drop cable capacity.
• Dome-to-Base Seal
  Features a retained O-ring seal in the dome to prevent component loss and ensure a consistent, durable seal.

Applications

• Outside Plant (OSP) Fiber Networks
• Above-Grade and Below-Grade Installations
• Fiber-to-the-x (FTTX) Distribution
• Butt Splice Configurations

Technical Specifications
