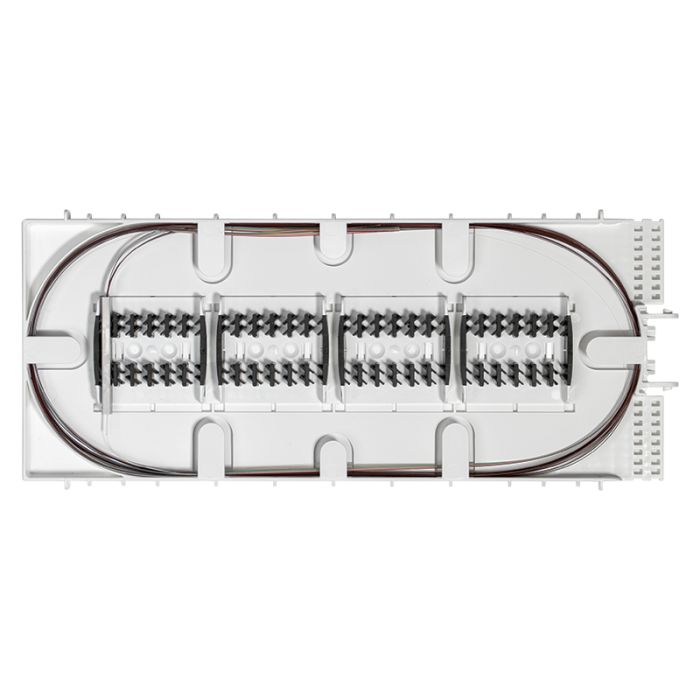

AFL Apex™ X-2 Splice Tray with (2) Splice Modules (36 Single Splices or 144 Ribbon Fiber Splices)

Overview

The AFL Apex™ X-2 Splice Tray is a versatile fiber management component designed for organized, secure fiber splicing within network enclosures. This tray features universal splice modules that support a wide range of splicing requirements, including single fusion, mass fusion, and mechanical splices, as well as the integration of passive optical components like PLC splitters.

Engineered for high-density environments, the trays are organized in a hinging array. These trays automatically lock when tilted into the upward position, providing technicians with unobstructed access for both splicing operations and the storage of fiber slack below the tray level.

Key Features

• Universal Splice Modules
  Supports multiple splice types including single fusion, mass fusion, and mechanical, reducing the need to stock multiple tray versions.
• Hinging Array Design
  Trays hinge and lock in an upward position to improve technician access during maintenance.
• Integrated Slack Storage
  Dedicated space below the trays allows for tidy and protected management of fiber slack.
• Component Flexibility
  Compatible with passive optical devices such as PLC splitters, streamlining installation in various network architectures.
• High Capacity
  Accommodates up to 36 single fusion splices or 144 ribbon fiber splices in a compact footprint.
• Simplified Inventory
  Provides a versatile solution that minimizes the requirement for site-specific splicing hardware.

Applications

• Fiber optic network enclosures
• Central office and headend installations
• Outside plant (OSP) fiber distribution hubs
• Data center fiber management

Technical Specifications

Frequently Asked Questions

Does this tray support PLC splitters?
Yes, the universal splice modules are designed to hold passive optical components, including PLC splitters.

Can I use this for ribbon fiber?
Yes, the tray supports up to 144 ribbon fiber splices.

How do I access the slack storage?
The trays hinge upward and lock into place, allowing easy access to the slack storage area located below the trays.

Is the module capacity fixed?
The modules are universal, designed to accommodate various splice counts depending on the fiber type being used.

Is this tray compatible with mechanical splices?
Yes, the module is capable of holding mechanical splices as well as fusion splices.
