The AFL CKD2-00-0902PR Contractor Series Test Kit is an all-in-one solution designed for accurate insertion loss measurements across both multimode and single mode fiber optic networks. This professional-grade kit provides the necessary components to verify network integrity in the field, ensuring compliance with TIA/EIA performance requirements.

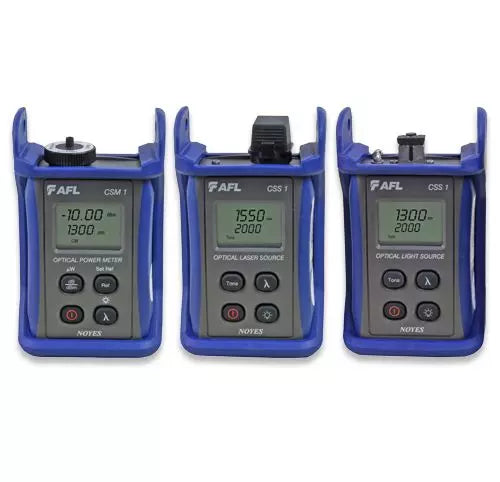

The kit features the CSS1-MM dual LED source for multimode testing and the CSS1-SM dual laser source for single mode applications, paired with the CSM1-2 optical power meter. Designed for convenience, the system components are compact, portable, and come equipped with user-friendly features like reference power level storage and long battery life.
Key Features
-
Dual Mode Operation
Supports both continuous wave (CW) and modulated tone modes for versatile testing applications. -
Multi-Wavelength Testing
The meter supports measurements at 850, 1300, 1310, and 1550 nm for comprehensive fiber analysis. -
Reference Storage
Stores optical references for each calibrated wavelength to speed up repetitive testing. -
Universal Connector Interface
The SM light source features a UCI base with an SC adapter for flexible connectivity. -
Test Tone Detection
Identifies fibers using 270-, 330-, 1000-, and 2000-Hz test tone detection for efficient troubleshooting. -
Rugged Portability
Includes a soft carrying case for secure transport of all components in field environments. -
Backlit Displays
Both light sources feature backlit LCD screens for visibility in low-light conditions. -
Automatic Power Management
Includes an automatic power-off function and battery gauge to extend runtime.
Applications
- Insertion loss measurement for multimode fiber links
- Insertion loss measurement for single mode fiber links
- Fiber optic network verification and certification
- Field troubleshooting and fiber identification
Package Contents
- CSS1-MM Dual LED Source
- CSS1-SM Dual Laser Source
- CSM1-2 Optical Power Meter
- 2.5-mm universal adapter cap
- UCI-SC connector
- 50-µm mandrel
- 62.5-µm mandrel
- Six AA alkaline batteries
- User's guide
- Soft carrying case
Technical Specifications
| Specification | Value |
|---|---|
| Model | CKD2-00-0902PR |
| Included Source (MM) | CSS1-MM |
| Included Source (SM) | CSS1-SM |
| Included Meter | CSM1-2 |
| Operating Wavelengths | 850, 1300, 1310, 1550 nm |
| Dimensions | 13.25" x 9" x 4.25" |
| Weight | 3.6 lbs |
| Power Source | 6 x AA Alkaline Batteries |
| Warranty | 1 Year |
Frequently Asked Questions
Does this kit include patch cords?
No, patch cords are not included with the test kit.
Are the units NIST traceable?
Yes, all units in this kit are fully N.I.S.T. traceable.
What is the primary function of this kit?
This kit is designed to perform insertion loss measurements on both multimode and single mode fiber optic links.
What connector type is on the CSS1-MM output port?
The CSS1-MM output port features a fixed SC connector.
What tone frequencies can be detected?
The CSM1-2 power meter supports 270-, 330-, 1000-, and 2000-Hz test tone detection.
