Overview

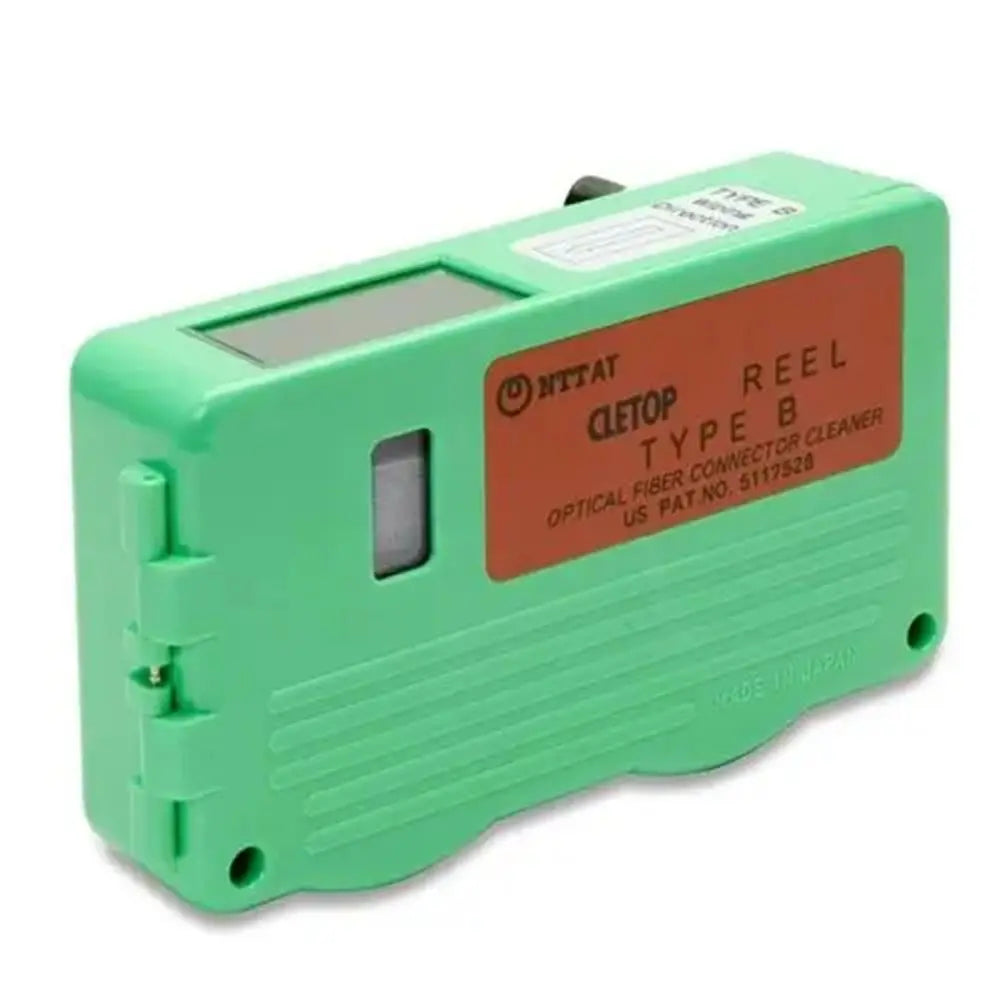

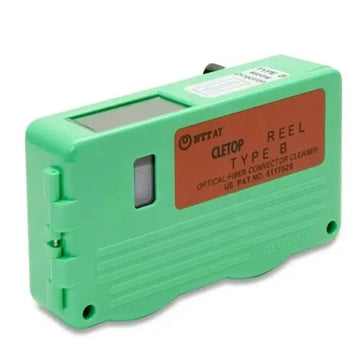

The AFL CLETOP 8500-10-0014MZ is a Type B ferrule cleaning cassette designed for efficient, dry fiber optic connector maintenance. It utilizes a specialized 2-µm fiber weave tape that cleans connectors through capillary action, effectively trapping contaminants in micro-pockets to ensure high-quality signal transmission. This tool is a standard solution for field and manufacturing environments where consistent results are required without the use of solvents.
The cleaner is engineered for ease of use, featuring a lever-actuated mechanism that exposes cleaning slots for quick, two-pass cleaning of connector end-faces. Its compact, anti-static construction makes it suitable for demanding network maintenance tasks.
Key Features
-
Dry Cleaning Technology
Uses a 2-µm fiber weave that eliminates the need for alcohol or flammable solvents, ensuring safe operation. -
High-Capacity Cleaning
Each replaceable tape reel provides over 400 cleanings per cassette for long-term operational efficiency. -
Anti-Static Design
Minimizes the risk of static discharge during the cleaning of sensitive fiber end-faces. -
Wide Compatibility
Supports a broad range of connector types including SC, FC, ST, LC, MU, and MPO/MTP variants. -
Micro-Pocket Trap
Traps oils, grease, and dust particles securely within the tape weave to prevent re-contamination. -
Portable and Rugged
Compact, lightweight form factor allows for easy transport and use in tight network rack spaces or field kits.
Applications
- Data center connector maintenance
- Fiber optic patch panel cleaning
- Field termination and testing procedures
- Fiber optic manufacturing quality control
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | 8500-10-0014MZ |
| Series | CLETOP Type B |
| Tape Type | White (Fine Weave) |
| Cleanings per Reel | 400+ |
| Cleaning Method | Dry (Solvent-free) |
| Connector Support | SC, FC, SC2, ST, DIN, D4, LC, MU, MT, MPO, MTP, MTRJ (no pins), Biconic |
| NSN | 5120015536821 |
Frequently Asked Questions
Does this cleaner require alcohol?
No, the CLETOP system is a dry cleaning tool that utilizes a specialized microfiber cloth to lift contaminants without the need for IPA or other solvents.
How many cleans can I get from one reel?
Each replacement reel is rated for over 400 cleaning cycles.
Is the tape replaceable?
Yes, replacement white tape reels (Part 8500-10-0015MZ) are available separately.
Can this clean MPO connectors?
Yes, this Type B unit is compatible with MPO/MTP connectors that do not have pins.
Is the device anti-static?
Yes, the unit is constructed with anti-static materials to protect optical components.
