Overview

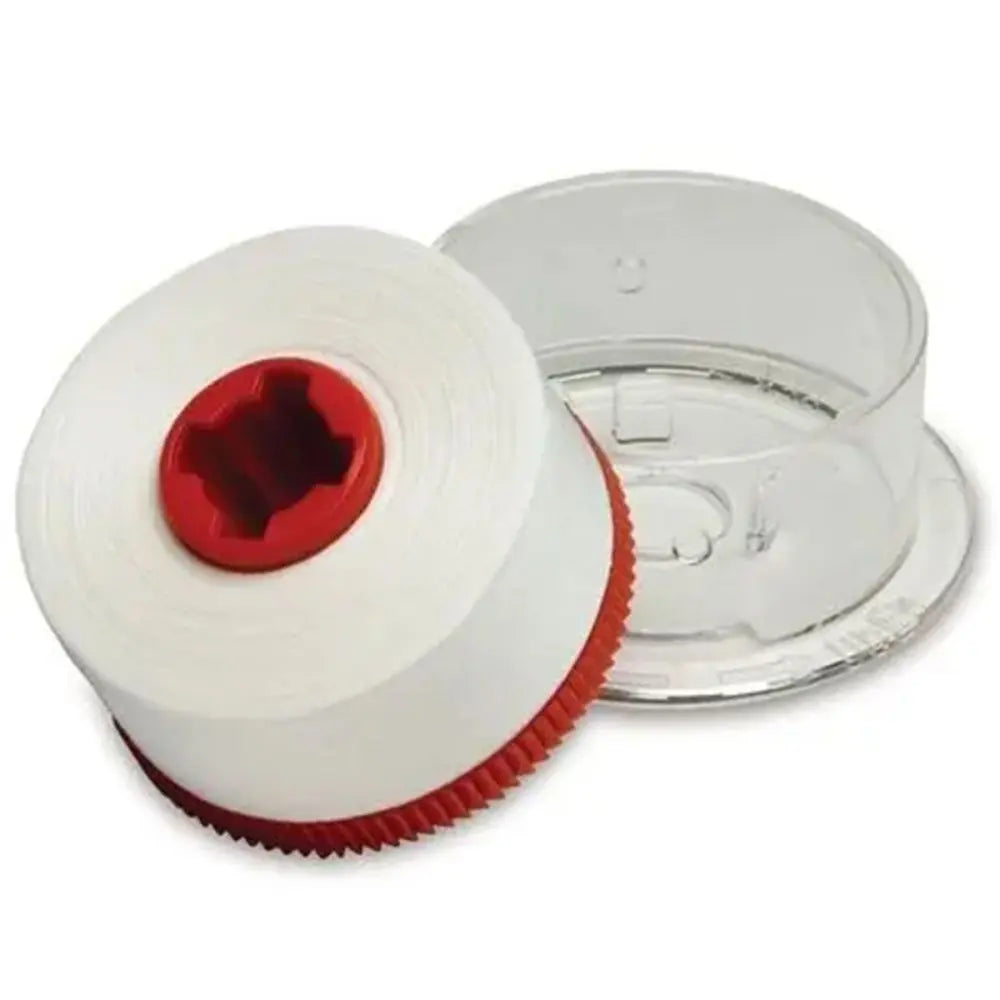

The AFL CLETOP 8500-10-0015MZ is a white tape replacement reel specifically engineered for use with the Classic CLETOP ferrule cleaning cassettes. This replacement system enables the continuous maintenance of fiber optic connectors by ensuring that technicians have a fresh, effective cleaning surface readily available.
Utilizing a specialized 2-µm fiber weave dry cloth, this tape effectively lifts contaminants such as oil, grease, and dust from ferrule surfaces through capillary action, trapping particles within its micro pockets. This method provides a more thorough cleaning process compared to standard 15-µm fiber weave cleaners, which can often leave residual debris behind. It is intended for field and data center environments where maintaining optimal signal integrity is critical.
Key Features
-
Precision Cleaning Media
Features a specialized 2-µm fiber weave dry cloth for superior extraction of surface contaminants compared to standard 15-µm alternatives. -
High-Capacity Refill
Designed to provide over 400 cleaning cycles per replacement reel, minimizing the frequency of maintenance. -
Effective Contaminant Removal
Engineered to lift and trap oil, grease, and dust from ferrule surfaces using capillary action. -
Optimized Compatibility
Specifically designed for compatibility with Classic CLETOP series ferrule cleaning cassettes. -
Simple Installation
The reel is designed for easy replacement, reducing downtime for technicians in the field. -
Enhanced Signal Integrity
Helps prevent signal degradation by ensuring pristine connector end-face cleanliness.
Applications
- Cleaning 1.25-mm fiber optic ferrules
- Data center fiber maintenance
- Fiber optic network installation
- Field maintenance of fiber connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | 8500-10-0015MZ |
| Tape Color | White |
| Cleaning Capacity | 400+ wipes |
| Fiber Compatibility | 1.25-mm ferrules |
| Cloth Weave | 2-µm fiber |
Frequently Asked Questions
What is the primary benefit of the 2-µm weave cloth?
The 2-µm weave is designed to lift and trap contaminants into micro pockets, preventing the re-deposition of dirt common with coarser 15-µm cloths.
Is this reel compatible with all CLETOP cleaners?
This specific reel is designed for the Classic CLETOP ferrule cleaning cassettes.
How many cleans can I get from one reel?
Each replacement reel is rated for over 400 cleaning cycles.
Does this require the use of cleaning solvents?
No, this is a dry cleaning system that uses capillary action to remove contaminants without the need for additional chemicals.
What size ferrules is this designed for?
This white tape replacement is designed for cleaning 1.25-mm ferrules.
