Overview

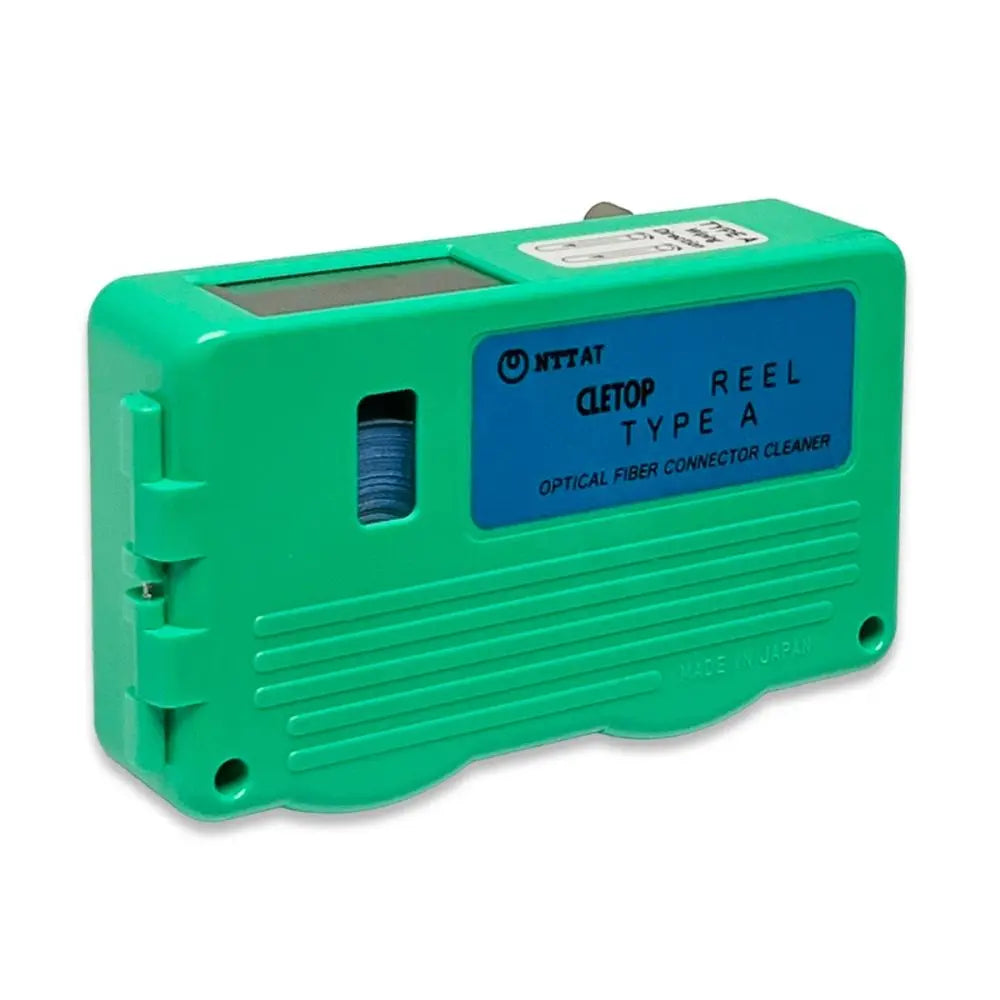

The AFL CLETOP 8500-10-0027MZ is a classic-style fiber optic ferrule cleaning cassette designed to provide effective, dry cleaning for fiber optic connectors. It utilizes a coarse-weave 2-µm blue cloth that employs capillary action to lift and trap contaminants, such as dust, oil, and grease, into micro-pockets within the fabric. This dry cleaning method eliminates the need for alcohol or other solvents, making it a safe and environmentally friendly solution for both field technicians and manufacturing facilities.
This Type A cleaner is specifically engineered for 2.5-mm ferrules, supporting a wide range of connector types including SC, SC2, FC, ST, DIN, and D4. The cassette design features an easy-to-use lever that advances the cleaning tape to ensure a fresh surface for each operation, providing over 400 cleanings per reel.
Key Features
-
2-µm Coarse-Weave Cloth
Uses a dry, high-density fiber weave to trap contaminants, ensuring a more thorough clean than standard 15-µm cloths. -
Solvent-Free Operation
Cleans effectively without the need for IPA, alcohol, or other flammable chemicals. -
Anti-Static Material
Helps prevent re-attraction of dust particles to the ferrule face after cleaning. -
High Capacity
Each replaceable tape reel provides more than 400 individual cleaning operations. -
Double-Slot Design
Allows for two separate cleaning wipes per connector, maximizing effectiveness. -
Compact and Lightweight
Designed for portability in field tool kits or for efficient use on assembly benches.
Applications
- SC, SC2, FC, ST, DIN, and D4 connector cleaning
- Fiber optic patch panel maintenance
- Manufacturing facility ferrule cleaning
- Field termination and installation sites
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | 8500-10-0027MZ |
| Type | Type A (Blue) |
| Supported Ferrule Size | 2.5 mm |
| Compatible Connectors | SC, SC2, FC, ST, DIN, D4 |
| Cleaning Method | Dry (Capillary Action) |
| Cleaning Capacity | 400+ per reel |
Frequently Asked Questions
Does this cleaner require alcohol?
No, the CLETOP 8500-10-0027MZ is a dry cleaning system and does not require alcohol or other solvents.
What ferrule size is this designed for?
This model is designed for 2.5-mm ferrules (e.g., SC, FC, ST).
Are replacement reels available?
Yes, replacement reels for the blue tape are available separately.
How many cleanings can I get from one cassette?
Each reel provides over 400 cleanings.
Is it anti-static?
Yes, the materials are anti-static to reduce the re-attraction of dust after cleaning.
