Overview

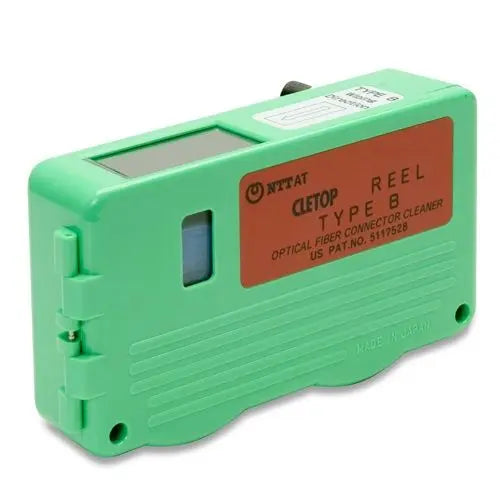

The AFL CLETOP 8500-10-0028MZ Type B is a professional-grade cassette-style fiber connector cleaner. This device is specifically engineered to remove oil, grease, and dust from fiber optic connector ferrules using a specialized 2-µm fiber weave dry cloth. By utilizing capillary action to trap contaminants within micro-pockets, it ensures a clean, residue-free connector face.
The Type B design is optimized for a wide variety of connector types, including MU, LC, MT, MPO, MT-RJ (without pins), and Biconic connectors. Its coarse-weave blue tape is specifically formulated for 2.5-mm ferrules. The system is designed for both field and manufacturing environments, providing a solvent-free cleaning solution that avoids the need for hazardous chemicals like alcohol or freon.
Key Features
-
High-Capacity Cleaning
Each replaceable tape reel provides over 400 cleanings per cassette, offering a cost-effective solution for high-volume maintenance. -
Efficient Contaminant Removal
The 2-µm fiber weave cloth effectively lifts oil, grease, and dust, trapping particles in micro-pockets to prevent re-deposition. -
Solvent-Free Operation
Ensures safe cleaning without the use of IPA alcohol or other flammable chemicals, reducing environmental impact and safety risks. -
Versatile Compatibility
Compatible with a wide array of connectors including LC, MU, MT, MPO, MT-RJ (without pins), and Biconic types. -
Anti-Static Design
Prevents static buildup during the cleaning process, which helps minimize the re-attraction of airborne dust to the ferrule surface. -
Compact and Portable
The lightweight, ergonomic cassette design is ideal for use in data centers, field repair kits, and manufacturing assembly lines.
Applications
- Data center cable maintenance
- Fiber optic assembly and manufacturing
- Field installation of fiber networks
- Cleaning MU, LC, MT, MPO, and MT-RJ connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | 8500-10-0028MZ |
| Series | Type B CLETOP |
| Cleaning Capacity | 400+ cleanings per reel |
| Tape Type | Blue (Coarse-weave) |
| Cleaning Material | 2-µm fiber weave dry cloth |
Frequently Asked Questions
Is the tape reel replaceable?
Yes, the cleaning tape reels are replaceable, allowing for continuous use of the cassette housing.
Does this cleaner require alcohol?
No, the CLETOP system uses a dry cloth mechanism and requires no solvents or alcohol for effective cleaning.
Which connectors can be cleaned with this unit?
It is designed for MU, LC, MT, MPO, MT-RJ (without pins), and Biconic connectors.
How many cleanings can I get from one reel?
Each tape reel provides over 400 cleaning operations.
Why use the blue tape version?
The blue tape is specifically formulated with a coarse-weave designed for 2.5-mm ferrules to ensure optimal contact and debris removal.
