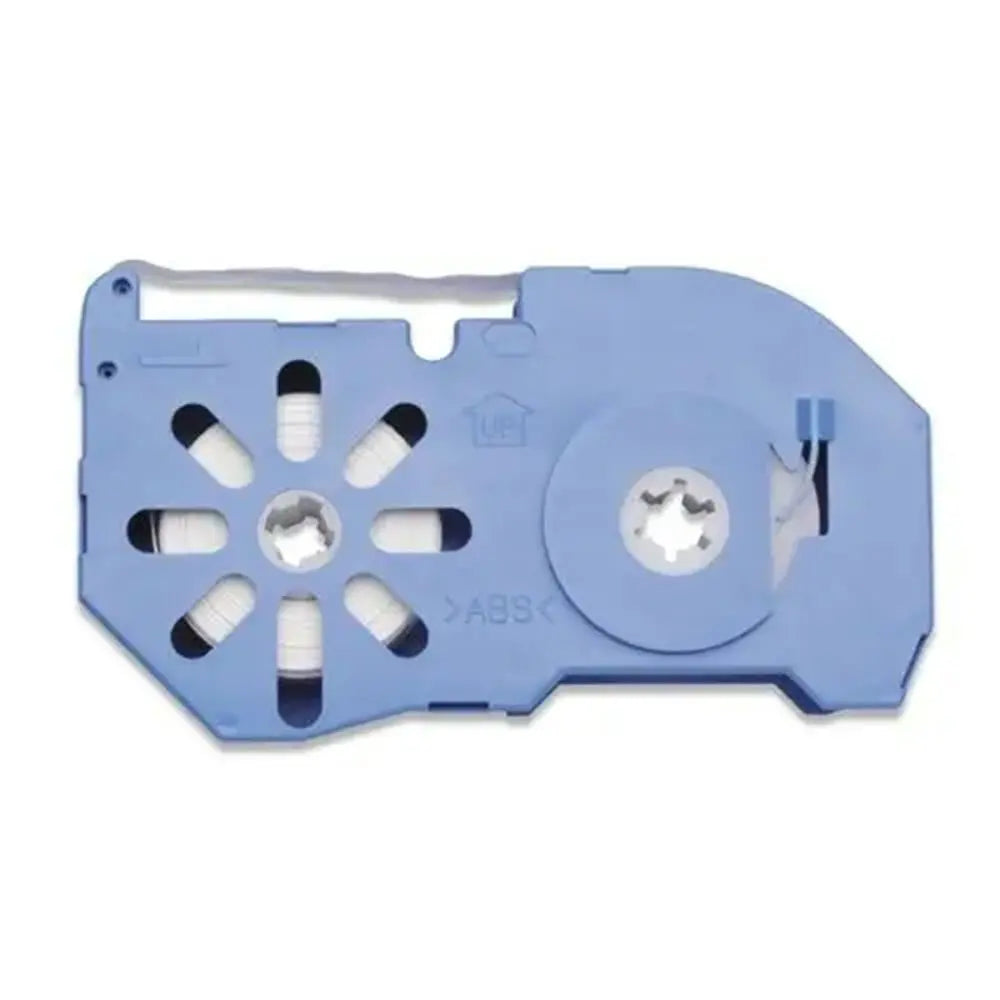

AFL CLETOP-S 8500-10-0017MZ White Tape Replacement Reel

Overview

The AFL CLETOP-S 8500-10-0017MZ is a white replacement tape cartridge designed for the second-generation CLETOP-S Series optical fiber connector cleaners. This drop-in cartridge provides a rapid, tool-free reload process, allowing technicians to replenish their cleaning supplies in seconds without interrupting work in the field or on the assembly bench.

Engineered for efficiency, the cartridge delivers over 400 cleanings per tape using a dry, alcohol-free medium. By eliminating the need for solvent-based cleaners, it minimizes exposure to hazardous chemicals while its anti-static properties help prevent dust from re-attaching to the connector end-face after cleaning. This consumable is essential for maintaining the performance of CLETOP-S Type SA and Type SB cleaning platforms.

Key Features

• Drop-in Cartridge System
  Snap-in design enables fast, tool-free reloading of the cleaning tape to maintain high productivity.
• Alcohol-Free Dry Cleaning
  Uses a dry medium to clean end-faces, removing the need for handling, storing, or transporting flammable and toxic isopropyl alcohol.
• Anti-Static Properties
  Constructed with anti-static material to reduce dust re-attraction on static-sensitive fiber surfaces.
• High Capacity
  Each cartridge provides over 400 cleaning operations, ensuring a low cost per clean for high-throughput environments.
• Wide Connector Compatibility
  Supports a variety of connector types including SC, FC, ST, D4, DIN, MU, LC, MT, and MPO/MTP without pins.
• Consistent Cleaning
  Delivers reliable, repeatable results to maintain low attenuation and prevent signal degradation caused by contamination.

Applications

• Fiber optic connector cleaning in labs and assembly lines
• Field maintenance for telecom carriers and network contractors
• Cleaning static-sensitive fiber end-faces
• Routine maintenance of SC, FC, LC, and MPO connectors

Technical Specifications

Frequently Asked Questions

Is this cartridge compatible with the original CLETOP series?
No, it is specifically designed for the second-generation CLETOP-S Series (Type SA and Type SB). It is not interchangeable with the original CLETOP series which uses a threaded reel.

Does this tape require the use of solvents?
No, the CLETOP-S tape uses a dry cleaning medium, eliminating the need for solvents like isopropyl alcohol.

How many cleans does one cartridge provide?
Each cartridge is rated for over 400 cleaning operations.

What connectors can be cleaned with this product?
It supports a wide range of connectors including SC, FC, ST, D4, DIN, MU, LC, MT, and non-pinned MPO/MTP.

Is there a difference between the white and blue cartridges?
Yes, the tape color corresponds to different cleaning applications and medium types. This is the white tape version. Consult the manufacturer guidelines for your specific cleaning requirements.
