Overview

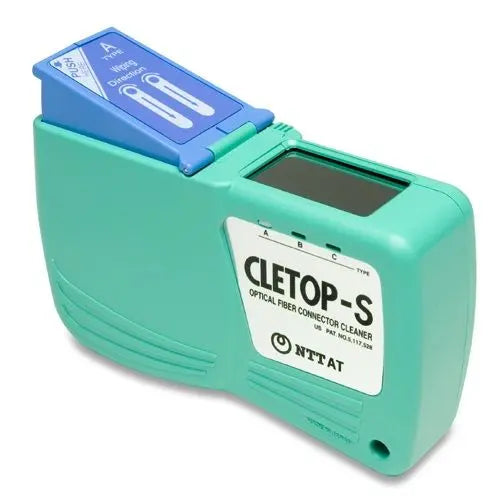

The AFL CLETOP S 8500-10-0020MZ Type A Anti-Static Ferrule Cleaning Cassette is an industry-standard solution for maintaining optimal fiber optic signal integrity. Designed for field and manufacturing environments, this tool uses a specialized 2-µm coarse-weave blue fiber tape to effectively remove oil, grease, and dust from ferrule surfaces through capillary action.
This cleaner is specifically engineered for 2.5-mm ferrules, making it suitable for SC, SC2, FC, ST, DIN, and D4 connectors. Its rugged, ESD-compliant housing and intuitive lever-operated tape advancement ensure consistent, high-quality cleaning results without the need for toxic or flammable solvents.
Key Features
-
Dry Cleaning Technology
Uses a dry 2-µm fiber weave to lift contaminants without alcohol or solvents, preventing residue buildup on connectors. -
Anti-Static Design
Constructed from ESD-compliant materials to protect sensitive fiber components during the cleaning process. -
High Capacity
Each replaceable tape reel provides over 400 cleanings, offering an economical solution for high-volume maintenance. -
Dual-Slot Operation
Top-mounted lever exposes cleaning slots for quick, double-sided ferrule cleaning per connector. -
Rugged Housing
Durable, compact case is optimized for both portable field use and stationary benchtop applications. -
User-Friendly Maintenance
Features a drop-in cartridge system, allowing for fast and simple replacement of used cleaning tapes.
Applications
- Field fiber optic network installation
- Fiber optic manufacturing facility inspection
- Data center maintenance
- Routine cleaning of SC, SC2, FC, ST, DIN, and D4 connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | 8500-10-0020MZ |
| Type | Type A (Blue Tape) |
| Ferrule Compatibility | 2.5 mm |
| Supported Connectors | SC, SC2, FC, ST, DIN, D4 |
| Cleanings per Reel | 400+ |
| Cleaning Method | Dry (Capillary Action) |
| Static Protection | Anti-Static / ESD-Compliant |
Frequently Asked Questions
What connectors can I clean with this tool?
The Type A cleaner is designed for 2.5-mm ferrules, specifically SC, SC2, FC, ST, DIN, and D4 connectors.
Does this require the use of cleaning solvents?
No, it uses a dry cleaning method with a specialized fiber weave cloth to trap debris without solvents.
How many cleanings does one tape provide?
Each replacement reel provides more than 400 cleanings per cassette.
Is the cleaner ESD-safe?
Yes, the CLETOP-S housing and internal components are constructed from anti-static materials.
How do I replace the tape?
The unit features a simple, drop-in replacement cartridge system for easy reel swaps.
