Overview

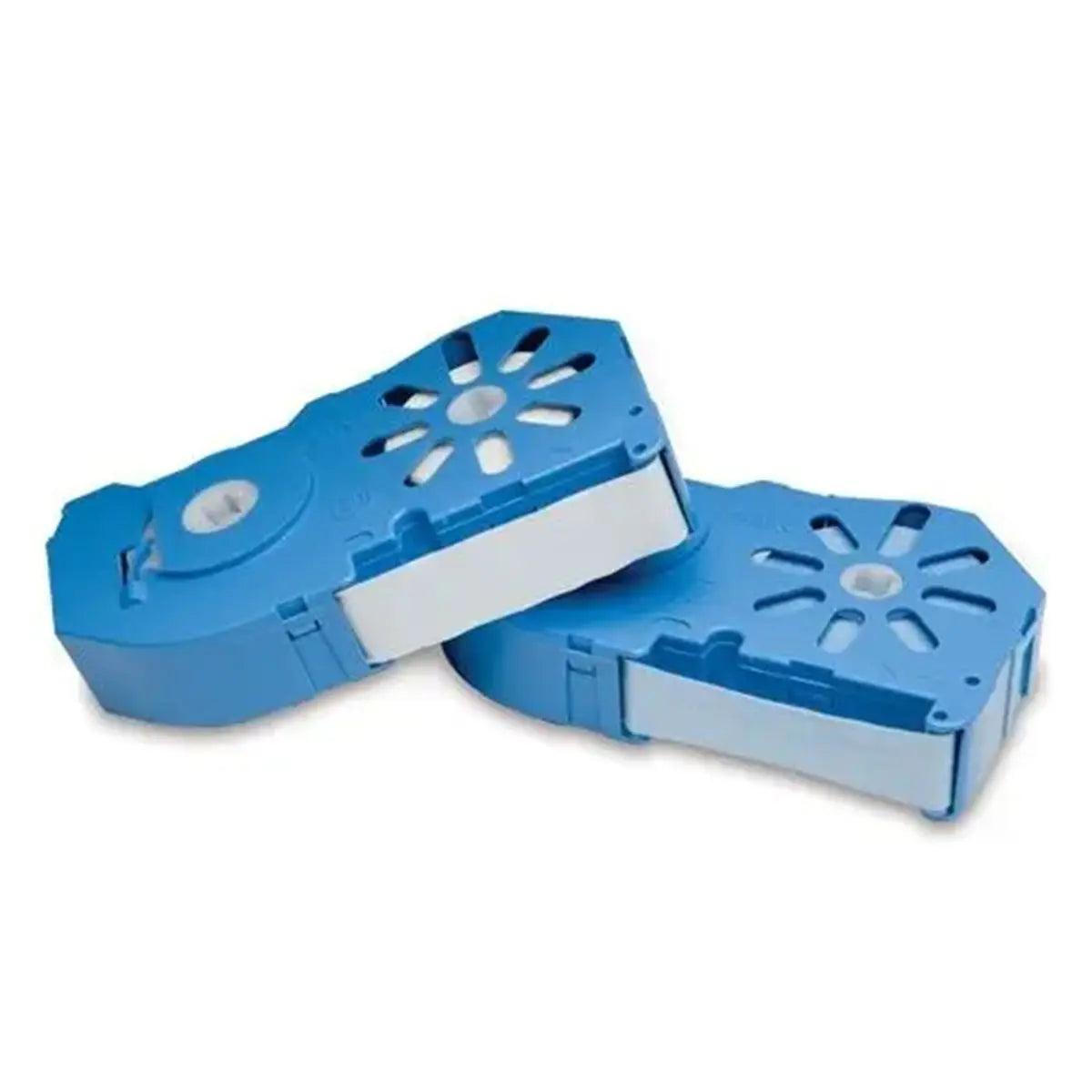

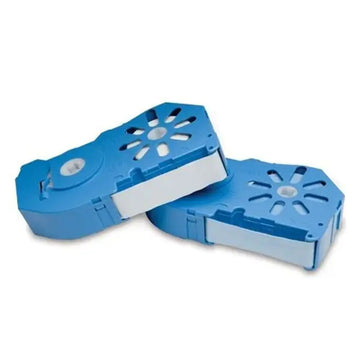

The AFL CLETOP S 8500-10-0021MZ Replacement Reel Cartridge is an essential consumable component designed for use with anti-static CLETOP-S ferrule cleaning cassettes. This replacement reel features a specialized 2-µm coarse-weave dry cleaning tape, specifically engineered to provide effective cleaning for 2.5-mm fiber optic ferrules.
By utilizing a capillary action mechanism, the tape lifts and traps contaminants such as dust, oil, and grease into micro-pockets within the cloth weave, ensuring a thorough clean that prevents transmission loss. This replacement system is designed for quick and easy field installation, maintaining operational efficiency during fiber optic maintenance and installation tasks.
Key Features
-
2-µm Fiber Weave
Specially formulated cloth lifts and traps contaminants into micro-pockets for superior cleaning results. -
Anti-Static Material
Designed for use with anti-static cassettes to minimize the risk of electrostatic discharge during cleaning. -
Blue Tape Design
Color-coded tape indicates a coarse-weave specifically optimized for 2.5-mm connector ferrules. -
High Capacity
One replacement reel provides enough cleaning tape for over 400 individual connector cleaning cycles. -
Dry Cleaning Process
Eliminates the need for solvent-based cleaners, reducing process time and simplifying field operations. -
Easy Replacement
The cartridge design allows for rapid swapping into existing CLETOP-S cassettes to minimize downtime.
Applications
- Fiber optic network maintenance
- Connector ferrule cleaning
- Data center cable infrastructure servicing
- Field installation of fiber optic patch cords
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | 8500-10-0021MZ |
| Product Type | Replacement Reel Cartridge |
| Compatibility | CLETOP-S Ferrule Cleaning Cassettes |
| Ferrule Size | 2.5 mm |
| Tape Color | Blue |
| Cleaning Capacity | 400+ connectors |
| Fiber Weave | 2 µm |
Frequently Asked Questions
Is this reel compatible with standard CLETOP cassettes?
This reel is designed specifically for the CLETOP-S series cassettes.
What ferrule size is this tape intended for?
It is optimized for 2.5-mm ferrules, such as those found on SC, ST, and FC connectors.
How many cleanings can I perform with one replacement?
The reel is rated for over 400 connector cleanings.
Does this tape require the use of cleaning solvents?
No, this is a dry cleaning system designed to lift contaminants without the need for additional chemicals.
Why is the tape blue?
The blue color indicates a coarse-weave tape designed for the specific cleaning requirements of 2.5-mm ferrules.
