Overview

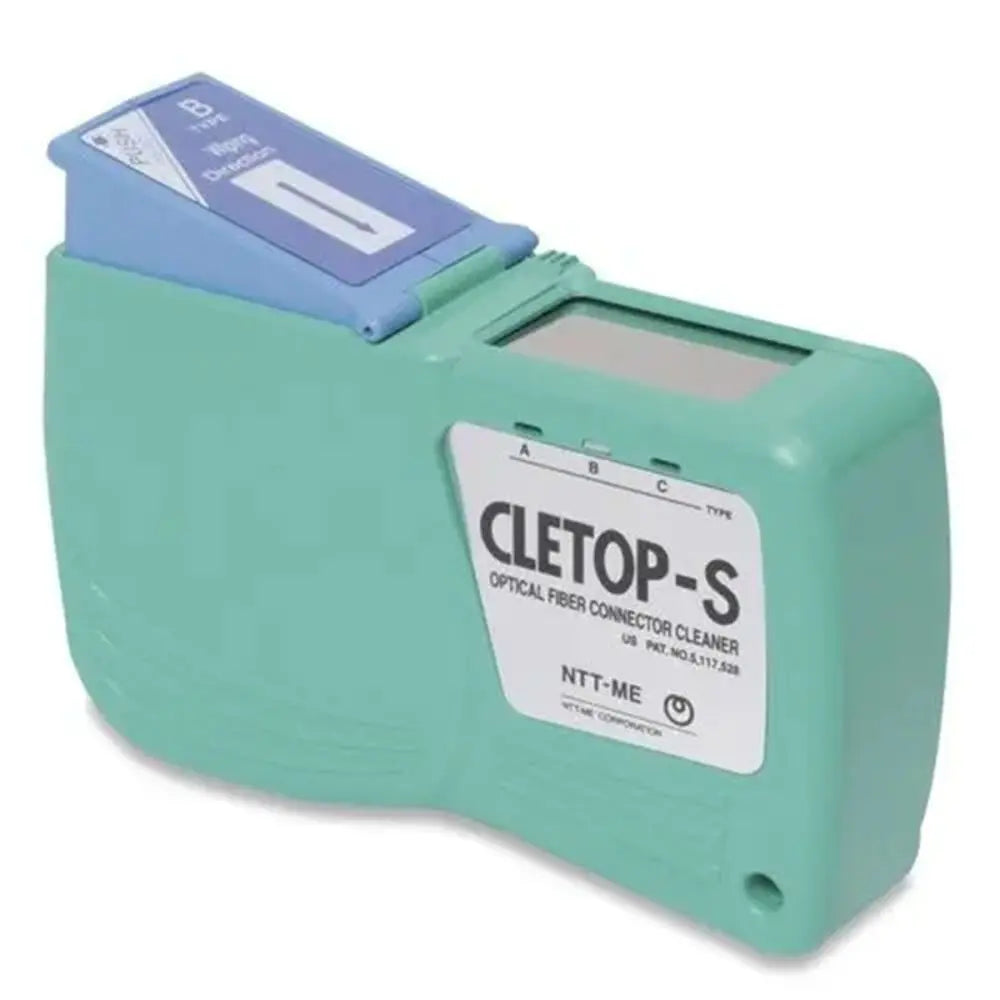

The AFL CLETOP S 8500-10-0029MZ Type B is a high-performance, cassette-style fiber optic connector cleaner designed to provide a consistent, reliable, and solvent-free cleaning solution. This anti-static cleaning tool utilizes a specially formulated 2-µm blue fiber weave dry cloth to effectively remove common contaminants such as oil, grease, and dust from connector end-faces.
Ideal for both field and manufacturing environments, this cleaner is engineered for high-density applications and is widely recognized for its ability to maintain signal integrity. Its compact, rugged design features a large top-mounted lever, allowing for precise control and ease of use in diverse installation and maintenance settings.
Key Features
-
Anti-Static Housing
Features an ESD-compliant case and internal components to prevent static discharge during operation. -
Solvent-Free Cleaning
Uses a dry 2-µm fiber weave cloth, eliminating the need for hazardous or flammable chemicals like IPA or freon. -
High Capacity
Provides over 400 cleanings per individual tape reel for cost-effective, long-term usage. -
Broad Compatibility
Specifically designed for Type B connector interfaces, including LC, MU, MT, MPO/MTP, and Biconic types. -
Capillary Action Technology
The specialized weave traps microscopic contaminants in micro-pockets rather than spreading them across the ferrule surface. -
User-Friendly Design
Includes a large top-mounted lever for efficient, one-handed operation in the field. -
Replaceable Tapes
Modular design allows for quick and easy replacement of cleaning reels to reduce overall maintenance costs.
Applications
- Fiber optic network maintenance
- Data center cable installations
- Telecom manufacturing facilities
- Field-based connector inspection and cleaning
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | 8500-10-0029MZ |
| Series | CLETOP-S |
| Type | Type B |
| Cleaning Capacity | 400+ cleanings per reel |
| Cleaning Method | Dry (No solvents) |
| Connector Compatibility | LC, MU, MT, MPO/MTP, Biconic |
Frequently Asked Questions
Does this cleaner require alcohol?
No, the CLETOP S uses a specialized dry fiber weave to clean and trap contaminants via capillary action, requiring no solvents.
How many times can I clean a connector?
Each cassette reel provides over 400 cleanings before needing a replacement.
Is the unit anti-static?
Yes, both the cleaning cassette and the internal tape materials are constructed from anti-static materials for ESD-sensitive environments.
Can I replace the cleaning tape?
Yes, the unit features a modular design that allows for replacement tape reels to be installed once the original is exhausted.
Which connector types are compatible with Type B?
The Type B cassette is optimized for MU, LC, MT, MPO/MTP (without pins), and Biconic connectors.
