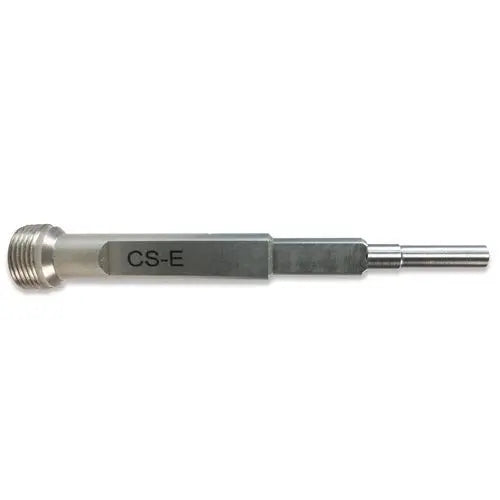

The AFL DFS1-00-0064MR is an extended-reach bulkhead inspection tip designed for use with the DFS1 Digital FiberScope. This precision accessory enables technicians to inspect fiber optic connector end-faces located within recessed or high-density bulkhead adapters on transmission equipment and patch panels.
Engineered for difficult-to-access environments, the extended design ensures compatibility with crowded fiber management systems. It is specifically optimized for CS connectors with a UPC polish, providing a clear high-resolution view of the fiber end-face for critical inspection tasks.
Key Features
-
Extended Reach
Features a lengthened design to access fiber connectors recessed within tight or high-density bulkhead panels. -
Dedicated CS/UPC Compatibility
Precision-engineered specifically for CS connectors featuring a UPC polish for accurate interface alignment. -
High-Resolution Inspection
Maintains the high-resolution imaging capabilities of the DFS1 Digital FiberScope for detailed end-face analysis. -
Durable Construction
Designed for frequent use in the field, ensuring longevity and consistent performance in professional network environments. -
Simple Installation
Allows for rapid attachment and removal from the main fiber inspection unit, minimizing downtime during testing. -
Compact Form Factor
Designed to minimize interference with surrounding equipment during the inspection process.
Applications
- Data center fiber patch panel inspection
- Hard-to-reach bulkhead connector maintenance
- Transmission equipment fiber end-face validation
- High-density fiber optic cable management systems
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | DFS1-00-0064MR |
| Part Number | 812X085 |
| Connector Type | CS |
| Polish Type | UPC |
| Compatibility | AFL DFS1 Digital FiberScope |
Frequently Asked Questions
What is the primary use for this tip?
It is used to inspect CS/UPC connectors that are mounted deep inside bulkhead adapters where a standard length inspection tip cannot reach.
Is this compatible with other fiber scopes?
This tip is specifically designed for the AFL DFS1 Digital FiberScope series.
Does this tip support APC connectors?
No, this model is specifically designed for UPC polished connectors.
What does the MR in the part number stand for?
MR denotes the extended reach/long-reach configuration of the inspection tip.
Is this tip compatible with standard LC bulkhead adapters?
No, it is specifically designed for the CS connector format.
