AFL FAST-LC-SM-6 FASTConnect Single Mode 9um LC Connector, UPC
AFL FAST-LC-SM-6 FASTConnect Single Mode 9um LC Connector, UPC

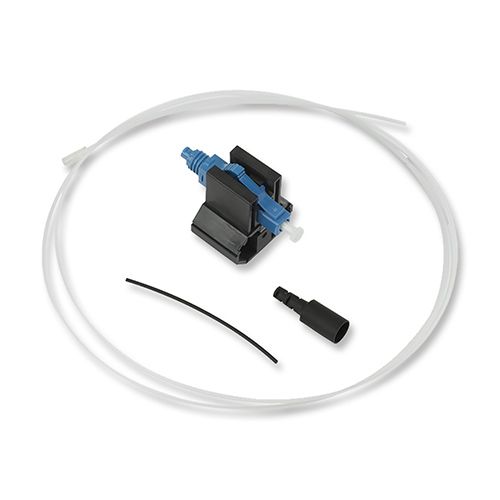

The AFL FAST-LC-SM-6 FASTConnect® LC connector, with a pre-stubbed, factory pre-polished ferrule and BLUE housing, is designed to to be used with single mode 9µm fiber optic cable. It features a precision mechanical alignment, as well as low loss termination (insertion loss: 0.2dB average, 0.5dB maximum, and return loss: -55dB average, -45dB maximum). The connector has a factory-installed wedge clip, which is removed and discarded upon completion of the termination. Fiber can be reinserted up to three times. Use a VFI to test (pass/fail) for proper installation.
The FAST-LC-SM-6 field-installable connectors are supplied 6 pieces per package. They are TIA/EIA-568-C.3 and TIA/EIA-604 FOCIS compliant. No epoxy required.
