Overview

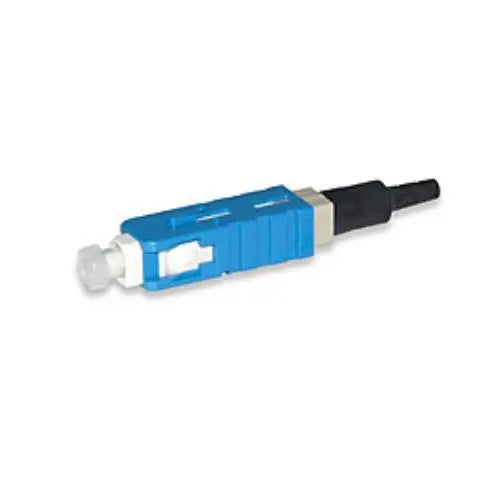

The AFL FAST-SC-SM-100 is a high-performance field-installable connector kit designed for rapid, reliable fiber optic terminations. Featuring a factory pre-polished ferrule, these SC/UPC connectors eliminate the need for field polishing or epoxy, significantly reducing installation time in the field.
These connectors are optimized for use with single-mode 9µm fiber and 900µm cordage. Engineered for precision mechanical alignment, they ensure low-loss signal transmission suitable for critical network infrastructure and data center environments. Each connector includes a factory-installed wedge clip for secure installation, and the assembly allows for up to three reinsertions if necessary.
Key Features
-
Factory Pre-Polished Ferrule
Ensures consistent optical performance without the need for manual polishing in the field. -
No Epoxy Required
Speeds up installation processes and eliminates curing time associated with traditional termination methods. -
Low Insertion Loss
Provides an average insertion loss of 0.2dB, maintaining signal integrity across network links. -
High Return Loss
Delivers an average return loss of -55dB, minimizing back-reflections in high-speed optical systems. -
Re-usable Design
Allows for fiber reinsertion up to three times, reducing waste and cost during installation errors. -
TIA/EIA Compliant
Meets TIA/EIA-568-C.3 and TIA/EIA-604 FOCIS standards for universal compatibility.
Applications
- Fiber-to-the-Premises (FTTP)
- Data Center cabling
- Local Area Network (LAN) repair
- Outside plant maintenance
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FAST-SC-SM-100 |
| Fiber Type | Single Mode 9µm |
| Connector Type | SC/UPC |
| Insertion Loss | 0.2dB average, 0.5dB maximum |
| Return Loss | -55dB average, -45dB maximum |
| Compatibility | 900µm cordage |
| Standards | TIA/EIA-568-C.3, TIA/EIA-604 FOCIS |
Frequently Asked Questions
Are these connectors epoxy-free?
Yes, they are designed for mechanical termination, requiring no epoxy or curing oven.
Can I re-terminate if I make a mistake?
Yes, the fiber can be reinserted up to three times per connector.
What testing is required after installation?
A Visual Fault Locator (VFL) is recommended to perform a pass/fail check on the installation quality.
Are these compatible with multi-mode fiber?
No, these specific connectors (FAST-SC-SM-100) are explicitly for single-mode 9µm fiber applications.
What is the typical insertion loss?
The average insertion loss is 0.2dB.
