Overview

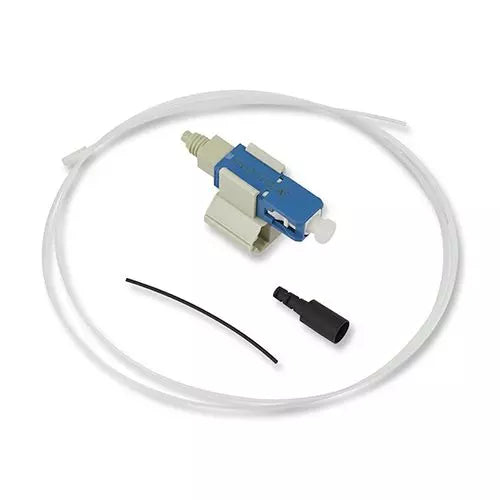

The AFL FAST-SC-SM-6 is a field-installable, single-mode SC fiber optic connector designed for rapid, reliable field termination. It features a factory pre-polished ferrule that eliminates the need for field epoxy or polishing, significantly reducing termination time. These connectors utilize precision mechanical alignment to provide consistent optical performance in various fiber network environments.
Engineered for use with 9µm single-mode fiber, this connector includes a factory-installed wedge clip which is discarded after the fiber is successfully terminated. Its robust design allows for up to three re-insertions, ensuring flexibility during installation or troubleshooting, and is suitable for both premise and outside plant fiber deployments.
Key Features
-
Pre-Polished Ferrule
Factory-terminated and polished ferrule eliminates the need for field adhesive or polishing tools, accelerating deployment. -
Epoxy-Free Termination
Mechanical alignment design removes the requirement for epoxy, reducing chemical handling and curing time. -
Low Insertion Loss
Features an average insertion loss of 0.2dB and a maximum of 0.5dB for high-efficiency signal transmission. -
High Return Loss
Average return loss of -55dB (-45dB maximum) provides strong back-reflection protection for sensitive network electronics. -
Field Reusability
Connector can be re-terminated up to three times, minimizing waste during installation errors. -
Visual Inspection Compatibility
Supports testing for proper installation via a standard Visual Fault Locator (VFL).
Applications
- Enterprise LAN/WAN Networks
- Fiber-to-the-Subscriber (FTTx)
- Data Center Interconnects
- Cable TV (CATV) Networks
- Field restoration and repair
Package Contents
- 6x FASTConnect Single Mode SC Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FAST-SC-SM-6 |
| Connector Type | SC |
| Fiber Type | Single Mode (9µm) |
| Polish | UPC |
| Average Insertion Loss | 0.2dB |
| Maximum Insertion Loss | 0.5dB |
| Average Return Loss | -55dB |
| Maximum Return Loss | -45dB |
| Standards Compliance | TIA/EIA-568-C.3, TIA/EIA-604 FOCIS |
Frequently Asked Questions
Does this connector require epoxy?
No, the FASTConnect system is mechanical and does not require field epoxy or adhesives.
Can I re-use the connector if the installation fails?
Yes, the fiber can be re-inserted and the connector re-terminated up to three times.
Is the installation compatible with VFL testing?
Yes, you can use a Visual Fault Locator to confirm proper termination via a pass/fail visual check.
What type of fiber is this connector designed for?
It is designed for single-mode 9µm fiber optic cable.
What is the standard of the polish?
This connector utilizes a UPC (Ultra Physical Contact) polish.
