Overview

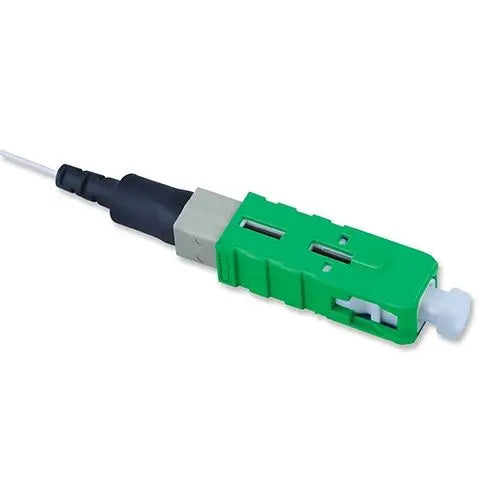

The AFL FAST-SC-SMAU-100 is a field-installable fiber optic connector designed for efficient, reliable termination in the field without the need for epoxy, adhesives, or polishing. These connectors are specifically engineered for single-mode 9µm fiber optic cables and 900µm cordage, featuring a precision mechanical alignment that ensures consistent, low-loss performance.
Each connector features an angle-flat polished (APC) ferrule and is identified by a green housing, making it suitable for applications requiring low back-reflection. The connectors include a factory-installed wedge clip which is easily removed after termination. Designed for field technicians and network operators, these connectors support up to three re-insertions if necessary, providing flexibility during installation in various data center or enterprise environments.
Key Features
-
No-Epoxy Termination
Eliminates the need for epoxy, heating, or polishing, significantly reducing total installation time. -
Precision Mechanical Alignment
Ensures accurate fiber centering for low-loss connectivity in field environments. -
Angle-Flat Polish (APC)
Provides high return loss performance, ideal for networks sensitive to back-reflection. -
Re-usable Design
Allows for up to three re-insertions per connector, minimizing waste if installation adjustments are needed. -
Integrated Wedge Clip
Factory-installed for convenience, it ensures proper tensioning and is discarded after termination is complete. -
Compatibility
Works with standard 9µm single-mode fiber and 900µm buffered fiber cordage.
Applications
- Fiber-to-the-Home (FTTH) networks
- Data center cabling
- Local Area Network (LAN) / Wide Area Network (WAN) installations
- Emergency restoration of fiber optic links
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FAST-SC-SMAU-100 |
| Connector Type | SC/APC |
| Fiber Type | Single-mode (9µm) |
| Average Insertion Loss | 0.3dB |
| Maximum Insertion Loss | 0.6dB |
| Average Return Loss | -55dB |
| Maximum Return Loss | -50dB |
| Package Quantity | 100 |
| Standards Compliance | TIA/EIA-568-C.3, TIA/EIA-604 FOCIS |
Frequently Asked Questions
Are these connectors re-usable?
Yes, the fiber can be reinserted up to three times per connector if needed.
Do I need specialized glue or epoxy to install these?
No, these are field-installable connectors that require no epoxy, polishing, or adhesives.
How do I verify the installation?
It is recommended to use a Visual Fault Locator (VFL) to test the installation with a pass/fail assessment.
What fiber sizes are these compatible with?
These are designed for single-mode 9µm fiber with 900µm cordage.
What do the colors mean?
The green housing indicates that these connectors have an Angle-Flat Polished (APC) ferrule.
