Overview

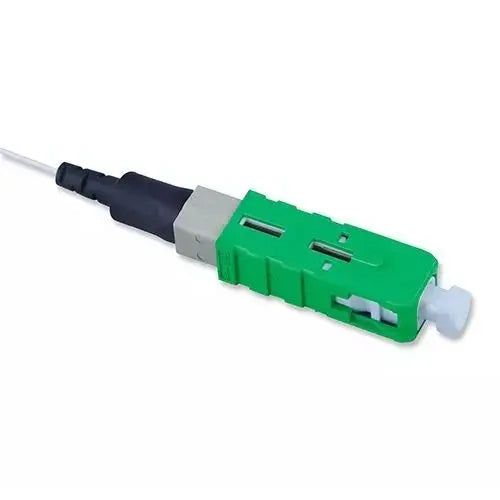

The AFL FAST-SC-SMAU-6 is a set of 6 field-installable SC connectors featuring an angle-flat polished (APC) ferrule. Designed for efficient termination in the field, these connectors are compatible with single-mode 9µm fiber optic cable and 900µm cordage. Their mechanical design eliminates the need for epoxy, polishing, or power-consuming curing ovens, facilitating rapid deployment in diverse network environments.
Engineered for consistent performance, these connectors utilize precision mechanical alignment to ensure reliable signal integrity. The connectors incorporate a green housing, standard for APC identification, and include a factory-installed wedge clip that simplifies the installation process. The fiber can be reinserted up to three times, supporting field flexibility and error correction during installation.
Key Features
-
No Epoxy Termination
Eliminates the need for adhesive curing, reducing tool requirements and installation time. -
Field-Installable Design
Enables rapid, on-site fiber termination without specialized factory equipment. -
Precision Alignment
Ensures accurate fiber core contact for optimal signal transmission. -
Reusable Design
Fiber can be reinserted up to three times, allowing for minor installation adjustments. -
Integrated Wedge Clip
Provides a simplified installation process through a pre-installed component that is discarded after completion. -
TIA/EIA Compliant
Meets TIA/EIA-568-C.3 and TIA/EIA-604 FOCIS standards for network compatibility.
Applications
- Data center fiber management
- Telecommunications network maintenance
- Fiber-to-the-X (FTTX) installations
- Premises cabling systems
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FAST-SC-SMAU-6 |
| Fiber Type | Single Mode 9µm |
| Connector Type | SC/APC |
| Average Insertion Loss | 0.3dB |
| Maximum Insertion Loss | 0.6dB |
| Average Return Loss | -55dB |
| Maximum Return Loss | -50dB |
| Package Quantity | 6 |
Frequently Asked Questions
Are these connectors reusable?
Yes, the fiber can be reinserted up to three times if an installation needs to be adjusted.
Is epoxy required to install these?
No, these are field-installable connectors that do not require epoxy, polishing, or a curing oven.
How do I verify the installation?
A Visual Fault Locator (VFL) should be used to perform a pass/fail test after installation.
What does the green housing signify?
The green housing identifies the connector as an APC (Angle-Flat Polished) type.
Are these compliant with industry standards?
Yes, these connectors are TIA/EIA-568-C.3 and TIA/EIA-604 FOCIS compliant.
