Overview

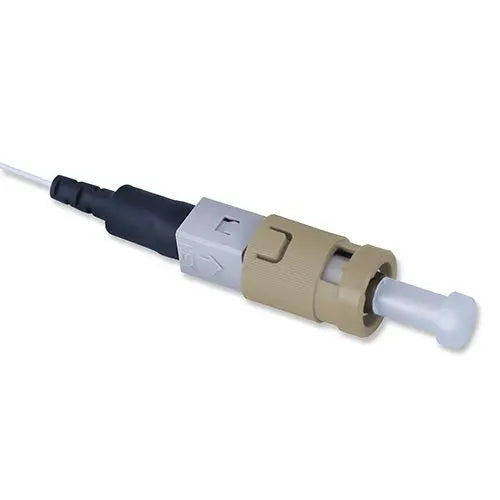

The AFL FAST-ST-MM62.5-100 is a professional-grade kit containing 100 field-installable ST connectors designed for 62.5µm OM1 multimode fiber optic cable. These connectors utilize a pre-stubbed, factory pre-polished ferrule to eliminate the need for field epoxy or polishing, significantly reducing installation time in data center and premise environments.
These connectors are engineered for high-precision mechanical alignment with 900µm cordage. They feature a factory-installed wedge clip system that ensures reliable termination, with the flexibility to allow fiber reinsertion up to three times per connector. These components are fully compliant with TIA/EIA-568-C.3 and TIA/EIA-604 FOCIS standards.
Key Features
-
Factory Pre-Polished Ferrule
Ensures consistent optical performance and removes the requirement for field polishing. -
No-Epoxy Termination
Speeds up the installation process and removes the need for curing ovens. -
Reinsertion Capability
Allows for up to three reinsertions of the fiber, reducing potential waste during setup. -
Precision Mechanical Alignment
Provides consistent low-loss connectivity across all installed links. -
TIA/EIA Compliant
Meets established industry standards for 568-C.3 and 604 FOCIS performance. -
Standard 62.5µm Compatibility
Optimized specifically for OM1 multimode fiber network infrastructures.
Applications
- Data center patch panels
- Premise network installations
- Fiber-to-the-desk (FTTD)
- Fiber optic patch cords
- Rapid network restoration and repairs
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FAST-STMM62.5100 |
| Connector Type | ST |
| Fiber Type | Multimode (OM1) |
| Core Diameter | 62.5µm |
| Compatible Cordage | 900µm |
| Average Insertion Loss | 0.1dB |
| Maximum Insertion Loss | 0.5dB |
| Average Return Loss | -25dB |
| Maximum Return Loss | -20dB |
| Standards | TIA/EIA-568-C.3, TIA/EIA-604 FOCIS |
| Quantity | 100 Pack |
Frequently Asked Questions
Are these connectors reusable?
The fiber can be reinserted up to three times during the installation process.
Do I need an epoxy kit or curing oven?
No, these are mechanical connectors and do not require epoxy or specialized polishing tools.
How can I verify the installation?
A Visual Fault Locator (VFL) is recommended to test for pass/fail compliance after installation.
What fiber types are these compatible with?
They are designed for 62.5µm OM1 multimode fiber.
Are the housings color-coded?
Yes, these units feature a beige housing, standard for OM1 multimode applications.
