Overview

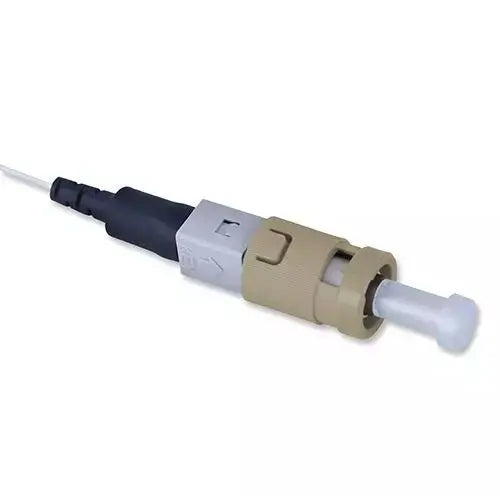

The AFL FAST-ST-MM62.5-6 is a set of 6 field-installable ST connectors designed for multimode 62.5µm OM1 fiber optic cabling. These connectors feature a pre-stubbed, factory-polished ferrule, which eliminates the need for field epoxy application, polishing, or extensive training during termination. They are ideal for quick, high-performance repairs and installations in premise environments.
Engineered for precision, these connectors utilize a mechanical alignment system to ensure low insertion loss. Each connector includes a factory-installed wedge clip that is removed upon termination completion, and the design allows for re-insertion of the fiber up to three times, providing flexibility during field maintenance.
Key Features
-
Factory-Polished Ferrule
Eliminates the need for field epoxy or polishing, significantly reducing installation time. -
Precision Mechanical Alignment
Ensures consistent, low-loss connections for reliable network performance. -
Reusable Design
Fiber can be reinserted up to three times, minimizing waste during installation errors. -
No-Epoxy Termination
Streamlines the termination process, making it suitable for tight-space environments. -
Integrated Wedge Clip
Simplifies the assembly process and ensures proper fiber alignment upon installation. -
Beige Housing
Standardized color-coding for OM1 multimode fiber identification.
Applications
- Premise fiber network installations
- Rapid field restoration of broken fiber links
- LAN/WAN environments
- Fiber-to-the-Desk (FTTD) connectivity
Package Contents
- 6 x FASTConnect ST Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FAST-ST-MM62.5-6 |
| Connector Type | ST |
| Fiber Type | Multimode (OM1) |
| Fiber Size | 62.5µm |
| Cordage Size | 900µm |
| Insertion Loss (Average) | 0.1dB |
| Insertion Loss (Maximum) | 0.5dB |
| Return Loss (Average) | -25dB |
| Return Loss (Maximum) | -20dB |
| Compliance | TIA/EIA-568-C.3, TIA/EIA-604 FOCIS |
| Package Quantity | 6 |
Frequently Asked Questions
Are these connectors suitable for 50µm fiber?
No, these are specific to 62.5µm OM1 multimode fiber.
Do I need a polishing kit to install these?
No, these connectors arrive pre-polished from the factory.
Can I reuse the connector if I make a mistake?
Yes, the fiber can be reinserted up to three times.
How do I verify the installation?
You can use a Visual Fault Locator (VFL) to perform a pass/fail test.
Do these come with the required boots?
These typically use 900µm cordage; ensure you have the appropriate boot or support kit for your cable type.
