Overview

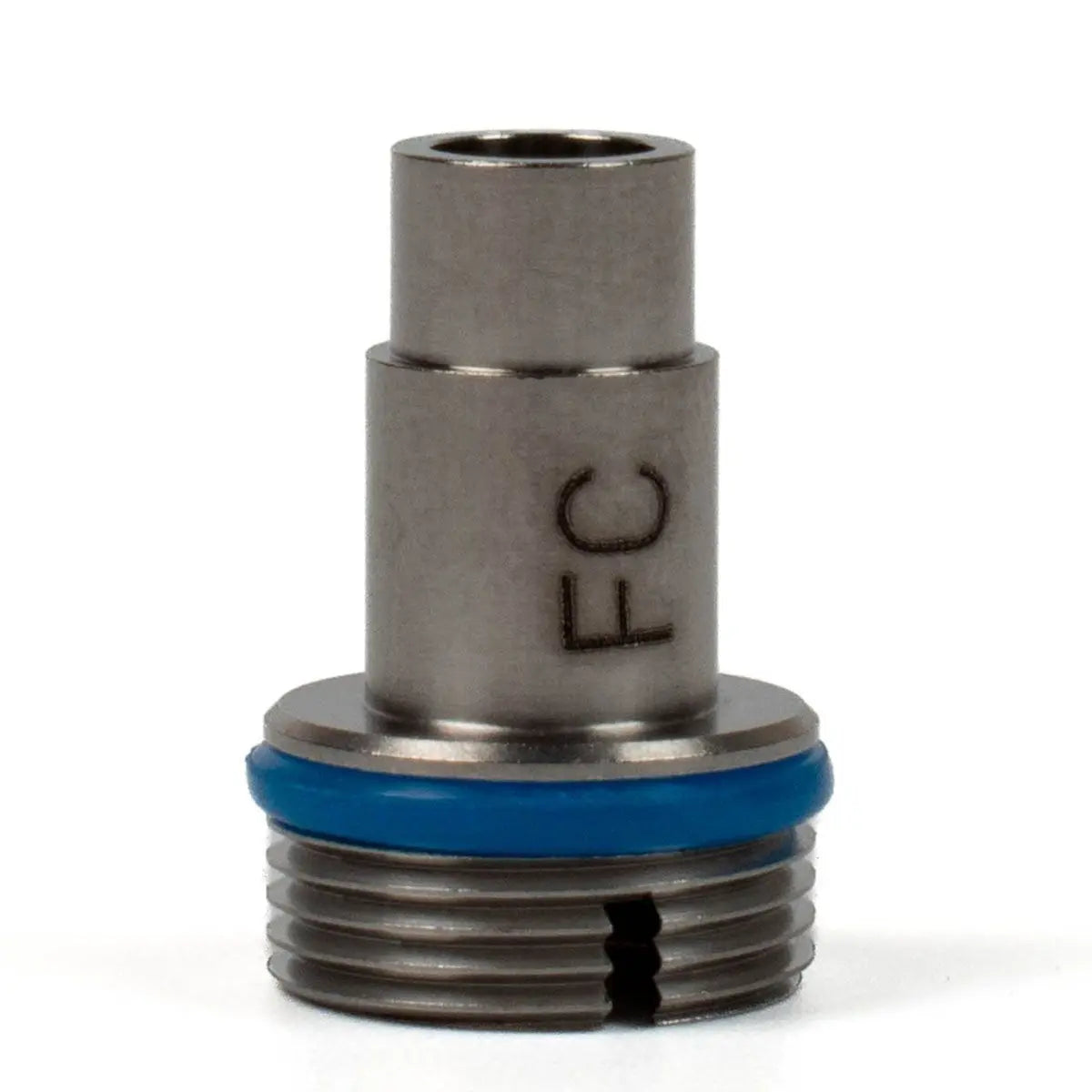

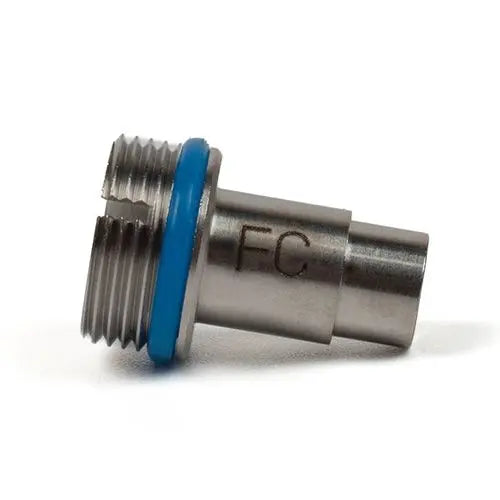

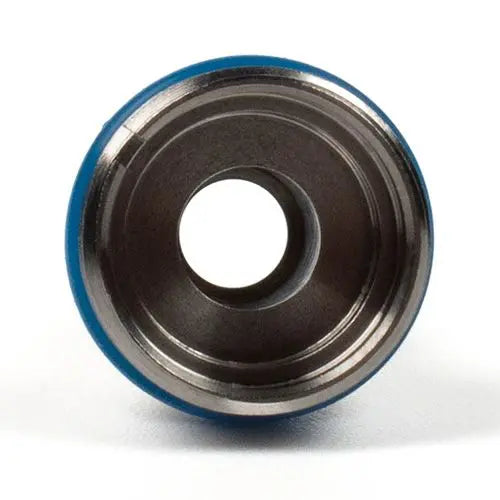

The AFL FFLX-01-FC is a precision-engineered bulkhead adapter tip designed specifically for use with the FOCIS Flex Fiber Connector Inspection System. This accessory allows technicians to securely mount and inspect FC/UPC connectors, ensuring accurate end-face analysis and verification of fiber health.
Designed for field environments, this adapter provides the stability required for consistent image capture when inspecting bulkhead-mounted connections. By facilitating proper alignment between the connector and the FOCIS Flex inspection port, it helps operators quickly identify contamination or damage that could compromise network performance.
Key Features
-
Precision Fit
Specifically designed for FC/UPC bulkhead connectors to ensure accurate centering and focus. -
Easy Installation
Threads directly into the FOCIS Flex inspection port for quick setup during field testing. -
Consistent Imaging
Provides stable support to prevent motion blur during high-resolution fiber inspection. -
Rugged Construction
Built to withstand the demands of frequent handling in professional network installation environments. -
Clear Analysis
Supports detailed, repeatable inspection results for rapid troubleshooting. -
Compact Design
Minimal footprint allows for easy storage in standard fiber tool kits.
Applications
- Fiber optic network maintenance and troubleshooting
- Data center fiber link inspection
- Telecommunications infrastructure verification
- FC/UPC connector quality control
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Part Number | 812X317 |
| Model | FFLX-01-FC |
| Connector Type | FC/UPC |
| Compatibility | FOCIS Flex Fiber Inspection System |
Frequently Asked Questions
What is the primary function of this adapter tip?
It enables the FOCIS Flex inspection scope to connect with and image the end-face of FC/UPC bulkhead-mounted connectors.
Is this compatible with APC connectors?
No, this model is specifically for UPC (ultra-polished) connectors. Using it with APC connectors will not provide accurate imaging.
How do I install the adapter?
The tip screws directly into the inspection port located on the front of the FOCIS Flex unit.
Is the inspection tool included?
No, the FOCIS Flex inspection tool is sold separately.
Can I use this for non-bulkhead connectors?
This specific model is designed for bulkhead inspection. Other tips are available for patch cord (ferrule) inspection.
