Overview

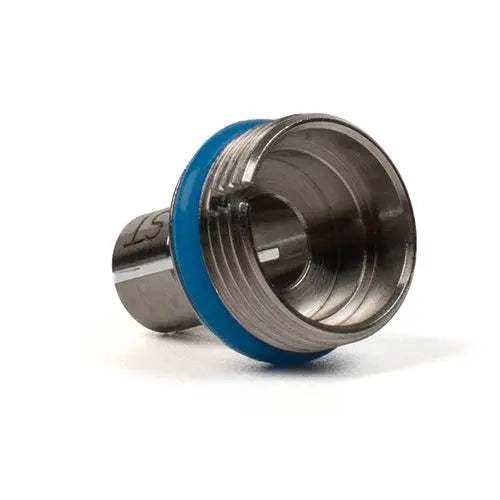

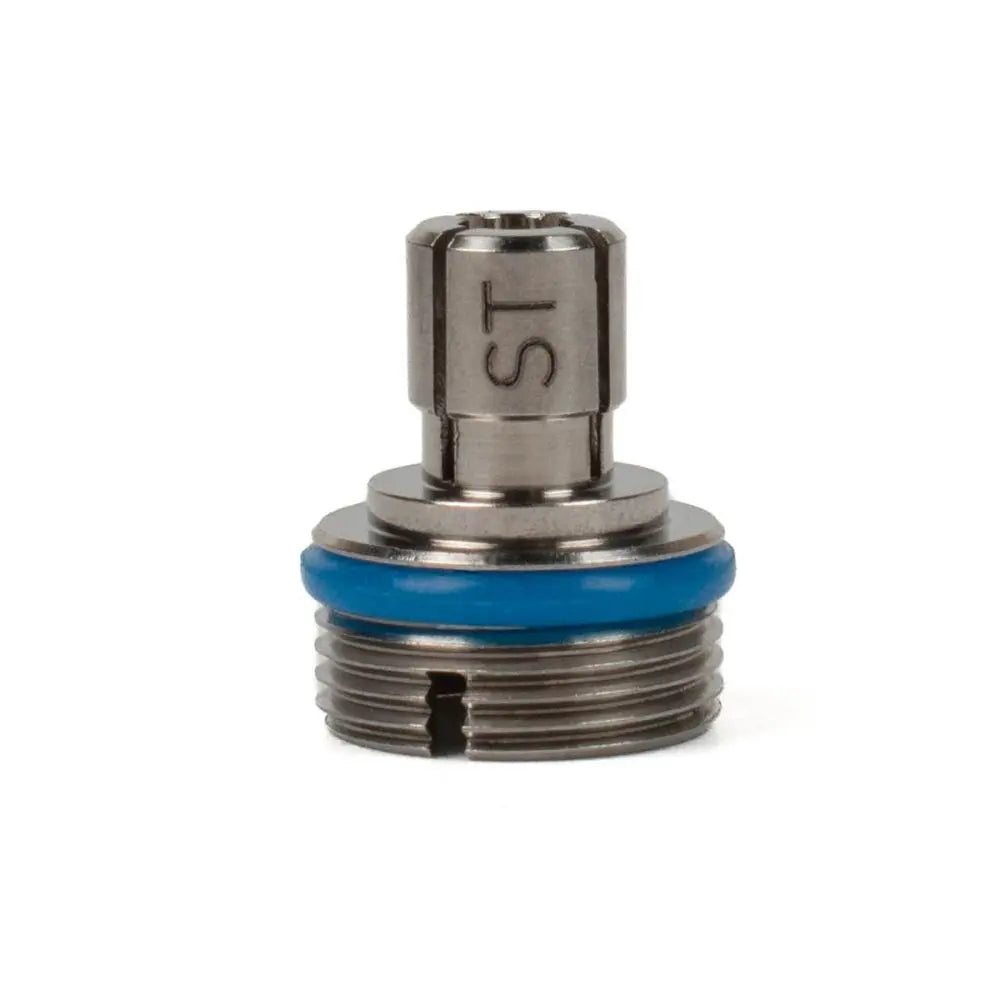

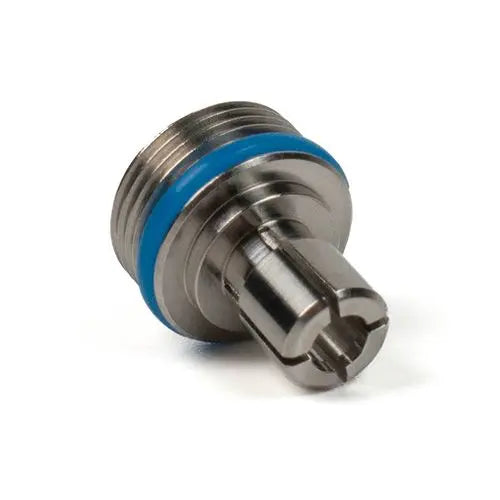

The AFL FFLX-01-ST Bulkhead Adapter Tip is a specialized precision accessory designed for use with the FOCIS Flex Fiber Connector Inspection System. This adapter tip enables the inspection of fiber optic connector end-faces specifically for ST-style bulkhead connectors with UPC (Ultra Physical Contact) polish.
Engineered for high-performance field inspection, this adapter facilitates rapid alignment and clear imaging within the FOCIS Flex system, ensuring that network technicians can accurately identify contamination or damage on connector interfaces. Its ruggedized construction is intended for demanding field environments, supporting reliable connectivity and consistent inspection results in data center and telecommunications applications.
Key Features
-
ST/UPC Connector Compatibility
Designed specifically for ST bulkhead connectors with an Ultra Physical Contact polish for precise end-face imaging. -
Rapid Installation
Features a quick-change design allowing technicians to swap adapter tips on the FOCIS Flex system in seconds. -
High-Resolution Imaging Support
Maintains the optical path integrity of the FOCIS Flex unit for clear, detailed inspection of fiber tips. -
Durable Construction
Built to withstand the rigors of field use and repeated connections in maintenance environments. -
Consistent Alignment
Ensures the connector is perfectly centered within the field of view for accurate pass/fail analysis. -
Field Essential Accessory
Provides the necessary interface to expand inspection capabilities to legacy and active ST-based infrastructure.
Applications
- Data center fiber inspection
- Telecom field network maintenance
- ST connector end-face verification
- Fiber optic installation and troubleshooting
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FFLX-01-ST |
| Part Number | 812X321 |
| Connector Type | ST |
| Polish Type | UPC |
Frequently Asked Questions
What is this adapter tip used for?
It is used with the AFL FOCIS Flex system to inspect the end-face of ST/UPC connectors located in bulkheads.
Is this compatible with APC connectors?
No, this model is designed specifically for UPC polished connectors.
Can I use this with other inspection probes?
This tip is specifically designed for the AFL FOCIS Flex series and may not be compatible with other inspection probes.
How do I change the adapter tip on the FOCIS Flex?
The tip is designed for a quick-release mechanism on the inspection port; simply unscrew or unclip the existing tip and attach the FFLX-01-ST.
Does this item include the inspection probe?
No, the inspection probe (FOCIS Flex) is sold separately.
