Overview

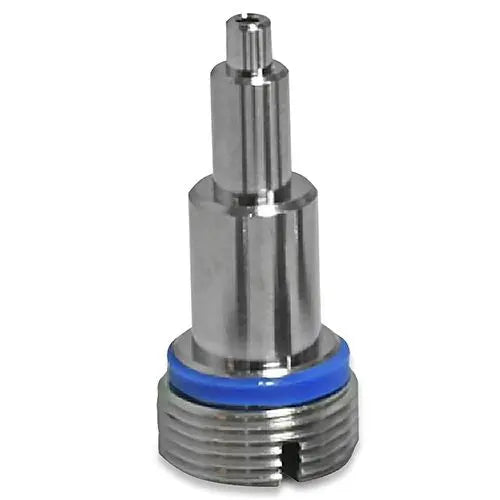

The AFL FFLX-01-U125 is a precision-engineered ferrule adapter tip designed for use with the FOCIS Flex Fiber Connector Inspection System. This universal 1.25mm UPC adapter allows technicians to quickly and accurately inspect the end-faces of LC connectors and other 1.25mm ferrule-based fiber assemblies.
Designed for rapid deployment in field environments, this adapter tip ensures consistent optical alignment, allowing for reliable connector verification and fault detection. It is an essential accessory for network operators and field technicians managing high-density fiber networks who require precise, rapid pass/fail analysis of critical connection points.
Key Features
-
Universal 1.25mm Compatibility
Designed specifically for 1.25mm ferrules, ensuring a secure fit and accurate centering for LC and similar connectors. -
UPC Polish Support
Optimized for Ultra Physical Contact (UPC) connectors, facilitating precise inspection of fiber end-faces. -
Quick-Connect Interface
Enables rapid switching of inspection tips on the FOCIS Flex unit, minimizing downtime during testing. -
High-Precision Alignment
Maintains the critical alignment required for high-resolution digital fiber inspection systems. -
Rugged Design
Built to withstand the demands of frequent field use in data centers and outside plant environments. -
Accurate Analysis
Supports the automated IEC pass/fail analysis capability of the FOCIS Flex platform.
Applications
- Fiber optic network installation and commissioning
- Data center cabling inspection
- Routine maintenance of LC-based fiber connectivity
- Verification of fiber connector cleanliness and integrity
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FFLX-01-U125 |
| Ferrule Size | 1.25 mm |
| Polish Type | UPC |
| Compatibility | FOCIS Flex Inspection System |
Frequently Asked Questions
Is this tip compatible with APC connectors?
No, this adapter tip is specifically designed for UPC (Ultra Physical Contact) connectors. Use of the incorrect polish type may result in inaccurate inspection results.
Which fiber scopes does this adapter fit?
This tip is designed for the AFL FOCIS Flex family of inspection tools.
Can this be used for 2.5mm connectors?
No, this is a 1.25mm adapter. A 2.5mm adapter tip is required for SC, ST, and FC connector ferrule inspection.
Does this require special tools to install?
No, the FOCIS Flex adapter tips are designed for tool-less removal and installation by hand.
Does this item include the inspection scope?
No, this is an adapter tip accessory only. The FOCIS Flex inspection unit is sold separately.
