Overview

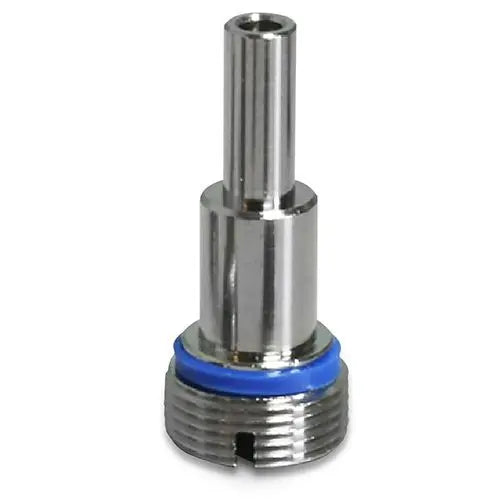

The AFL FFLX-01-U25 Universal 2.5 mm UPC Ferrule Adapter Tip is a precision inspection accessory designed for use with the FOCIS Flex fiber connector inspection system. It allows technicians to securely mount and inspect 2.5 mm UPC-polished fiber connectors, including SC, FC, and ST types, ensuring fast and accurate end-face analysis.
By providing a stable interface, this adapter tip ensures consistent results when checking fiber cleanliness and condition. It is an essential tool for network engineers and fiber technicians tasked with verifying the health of optical connections in high-density data centers, telecommunications infrastructure, and enterprise fiber networks.
Key Features
-
Precision Engineering
Designed for exact alignment with the FOCIS Flex inspection port to ensure sharp, clear images. -
2.5 mm UPC Compatibility
Optimized for standard 2.5 mm UPC-polished ferrules commonly found in SC, FC, and ST connector systems. -
Easy Installation
Attaches quickly to the FOCIS Flex inspection probe for seamless transitions between testing different connector types. -
Optical Inspection Support
Facilitates rapid end-face analysis to detect contamination or damage before patching. -
Compact Form Factor
Lightweight design that integrates easily into standard field inspection kits. -
Durable Construction
Built to withstand the rigors of frequent field use in diverse operating environments.
Applications
- Fiber network troubleshooting and maintenance
- Data center connector end-face inspection
- Telecom field service verification
- Enterprise fiber optic link certification
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FFLX-01-U25 |
| Part Number | 812X325 |
| Compatible Ferrule Size | 2.5 mm |
| Polish Type | UPC |
| Supported Connectors | SC, FC, ST |
Frequently Asked Questions
What is the primary function of this adapter tip?
It allows the FOCIS Flex inspection probe to accept and accurately image 2.5 mm UPC fiber connectors.
Which connector types are supported?
It supports SC, FC, and ST connectors with a 2.5 mm ferrule polished to a UPC finish.
Is this compatible with APC connectors?
No, this model is for UPC connectors. APC connectors require a different, dedicated adapter tip.
Can I use this with non-AFL equipment?
This adapter is specifically designed for the AFL FOCIS Flex series inspection systems.
How do I install the tip?
The tip installs directly into the optical inspection port of the FOCIS Flex device.
