Overview

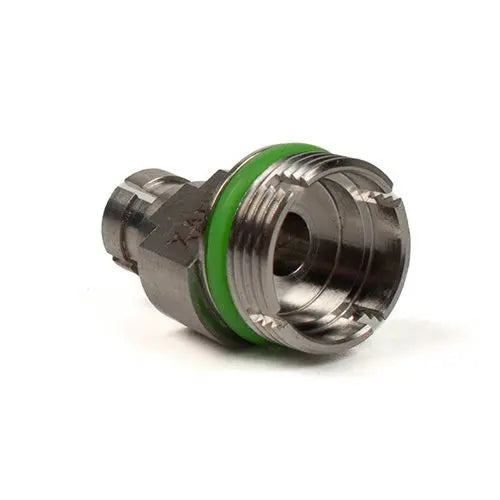

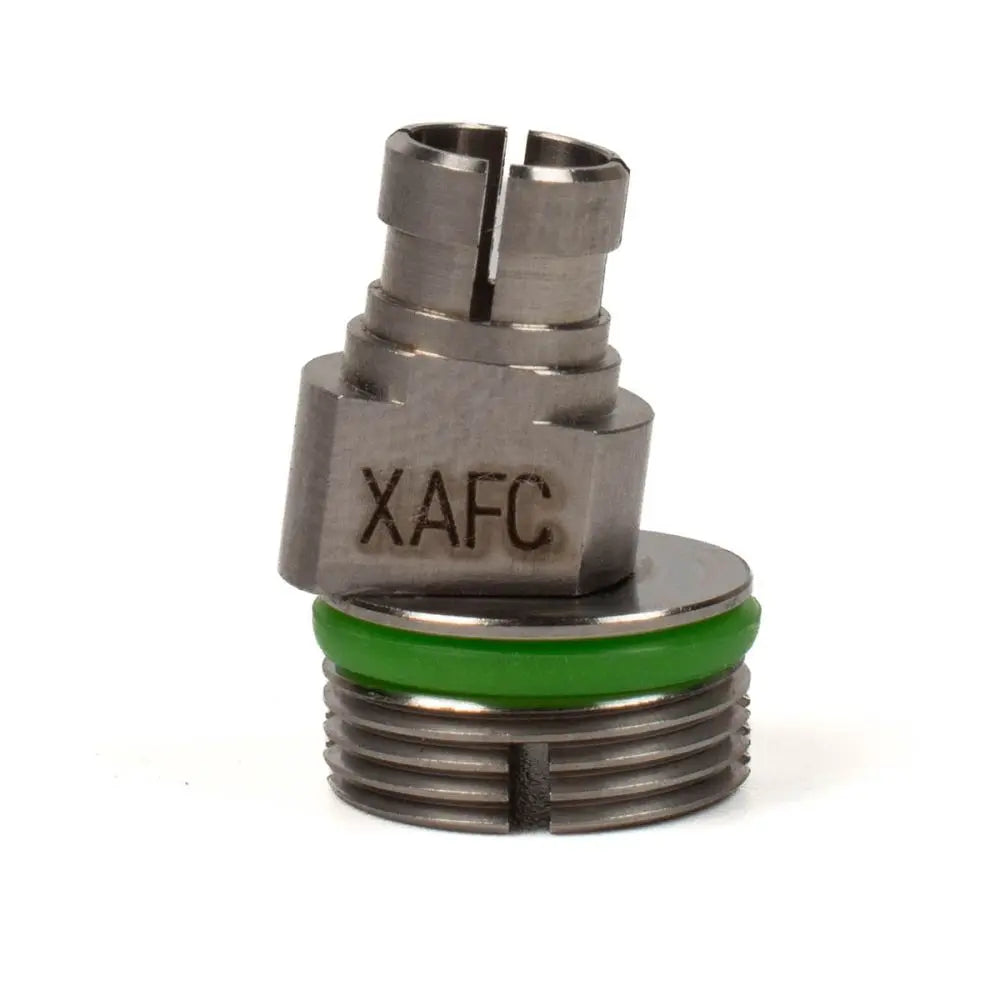

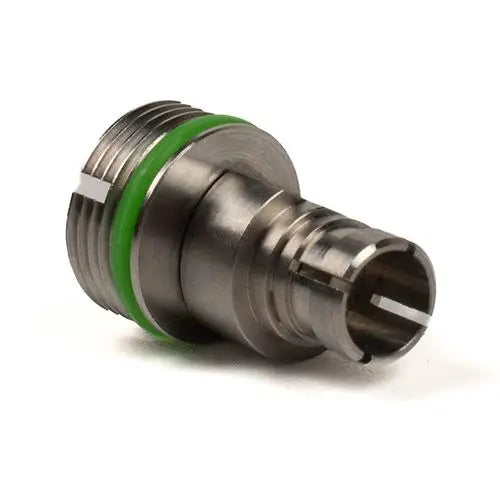

The AFL FFLX-4S-AFC FC-APC Bulkhead Adapter Tip is a specialized accessory designed for use with Port 1 of the FOCIS Duel fiber optic connector inspection probe. Its primary purpose is to provide a secure and stable connection when inspecting bulkhead-mounted FC-APC fiber optic connectors.
Engineered for precision and operational efficiency, this adapter tip features a quad-slotted design. This configuration allows for clear visibility during the inspection process, ensuring that the probe screen remains unobstructed. A physical key on the probe snout integrates with a slot on the adapter tip to prevent accidental loosening during use, ensuring consistent performance in demanding field environments.
Key Features
-
Precision Interface
Specifically designed for FC-APC bulkhead connector inspection, ensuring accurate alignment and reliable imaging. -
Quad-Slotted Design
Provides an unobstructed view of the inspection screen, allowing technicians to monitor the fiber end-face without visual interference. -
Integrated Locking Key
Features a key-and-slot mechanism between the adapter tip and the probe snout to prevent accidental rotation or loosening during operation. -
Secure Fitment
Designed for a stable connection to the FOCIS Duel inspection probe, facilitating rapid and efficient field inspections. -
Rugged Construction
Built for durability in typical field and data center operating environments.
Applications
- Bulkhead-mounted FC-APC connector inspection
- Data center fiber infrastructure maintenance
- Field-based fiber optic network troubleshooting
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FFLX-4S-AFC |
| Connector Type | FC-APC |
| Design | Quad-Slotted |
| Compatibility | FOCIS Duel (Port 1) |
Frequently Asked Questions
What is the primary function of the FFLX-4S-AFC adapter?
It is used to adapt the FOCIS Duel inspection probe to inspect bulkhead-mounted FC-APC fiber optic connectors.
What does the "quad-slotted" design offer?
The design prevents the adapter from blocking the inspection screen, ensuring a clear view of the fiber end-face.
Does this adapter fit all FOCIS Duel ports?
This specific model is designed for use with Port 1 of the FOCIS Duel probe.
How does it prevent loosening?
It utilizes a keyed design on the probe snout that matches a slot on the adapter tip to lock it firmly in place.
What type of fiber connector is this for?
This adapter is designed for FC-APC (Angled Physical Contact) connectors.
