Overview

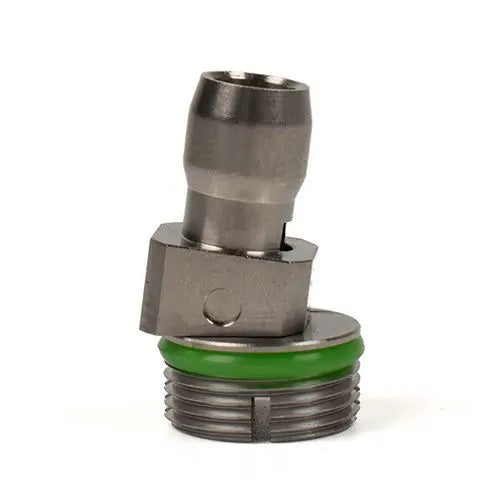

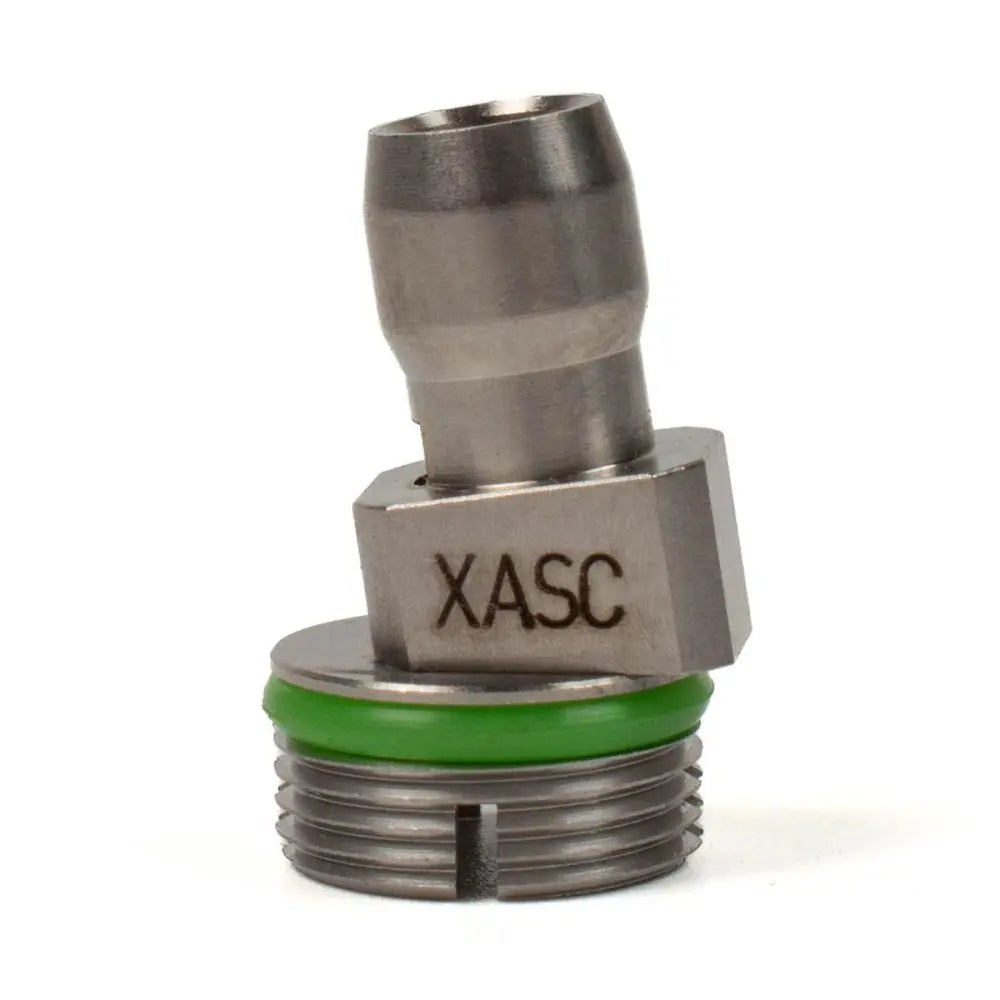

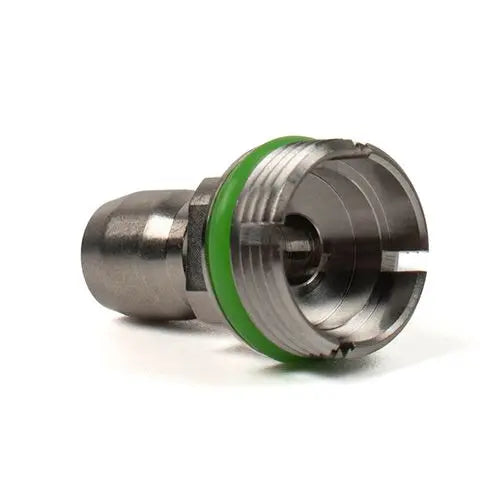

The AFL FFLX-4S-ASC SC-APC Bulkhead Adapter Tip is designed for use with the Port 1 of the FOCIS Duel fiber optic connector inspection probe. This specialized adapter tip facilitates the precise inspection of fiber optic connectors mounted in bulkhead panels.
The unit features a quad-slotted design that ensures compatibility and a secure fit while keeping the probe's screen unobstructed during operation. A key on the probe snout integrates with the slot on the adapter tip to prevent accidental loosening, providing stable, reliable alignment during critical inspection tasks.
Key Features
-
Quad-Slotted Design
Allows for unobstructed views of the inspection screen during bulkhead connector analysis. -
Secure Locking Mechanism
Features a key-and-slot design that prevents the adapter from loosening during use. -
Optimized for SC-APC
Engineered specifically for the geometry of SC-APC bulkhead connectors. -
FOCIS Duel Compatible
Designed specifically for integration with Port 1 of the FOCIS Duel inspection system. -
Precision Alignment
Ensures consistent positioning for accurate fiber end-face inspection. -
Durable Construction
Built to withstand the rigors of field inspection environments.
Applications
- Fiber optic network inspection
- Bulkhead connector troubleshooting
- Data center cable maintenance
- Field fiber end-face validation
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FFLX-4S-ASC |
| Part Number | FFLX-4S-ASC |
| Connector Type | SC-APC |
| Design | Quad-Slotted |
| Compatibility | FOCIS Duel Port 1 |
Frequently Asked Questions
What is the primary function of this adapter?
It is used to adapt the FOCIS Duel probe tip for inspection of SC-APC bulkhead-mounted fiber optic connectors.
Does the quad-slotted design block the probe screen?
No, the quad-slotted design is specifically engineered to ensure the screen remains unobstructed during the inspection process.
How does the adapter stay secure on the probe?
It uses a key on the probe snout that matches a slot on the adapter tip to lock it into place and prevent loosening.
Is this compatible with all FOCIS probes?
This model is specifically designed for the FOCIS Duel probe.
Can I use this for non-bulkhead connectors?
This adapter is optimized for bulkhead-mounted connectors.
