Overview

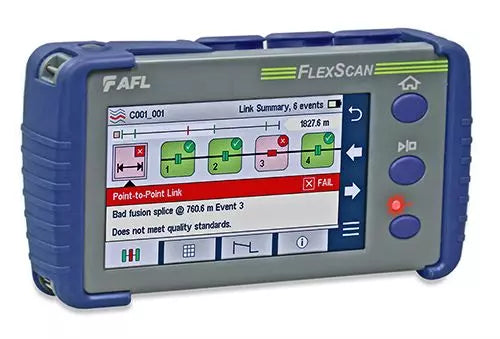

The AFL FlexScan 1310/1550nm OTDR (FS200-100) is a comprehensive test solution designed for characterizing single-mode optical networks. It allows technicians to differentiate between splices and macro-bends, while verifying network performance at both 1310 nm and 1550 nm operating wavelengths.
Equipped with an integrated VFL, optical light source, and power meter, this device simplifies field testing by combining multiple diagnostic tools into one unit. It features SmartAuto and icon-based LinkMap technology to accelerate network scans, fault location, and pass/fail analysis. The unit is housed in a rugged design with a 4.3" LCD touchscreen and connectivity options including USB, Bluetooth, and Wi-Fi for efficient data management.
Key Features
-
Dual Wavelength Testing
Supports both 1310 nm and 1550 nm testing for complete single-mode network characterization. -
Integrated Test Tools
Includes a built-in VFL, optical light source, and power meter to reduce the number of tools required in the field. -
LinkMap Technology
Provides icon-based visual representations of network events for intuitive fault location. -
SmartAuto Mode
Automates test parameters to ensure consistent and accurate measurements. -
Connectivity
Features built-in Bluetooth and Wi-Fi for seamless data transfer and device integration. -
Touchscreen Interface
4.3" LCD interface provides a user-friendly way to manage settings and review results. -
Standard Compliance
Built-in pass/fail criteria enable quick validation against user-defined or industry standards.
Applications
- Single-mode optical network characterization
- Fiber fault location and identification
- Insertion loss and reflectance testing
- Fiber network certification

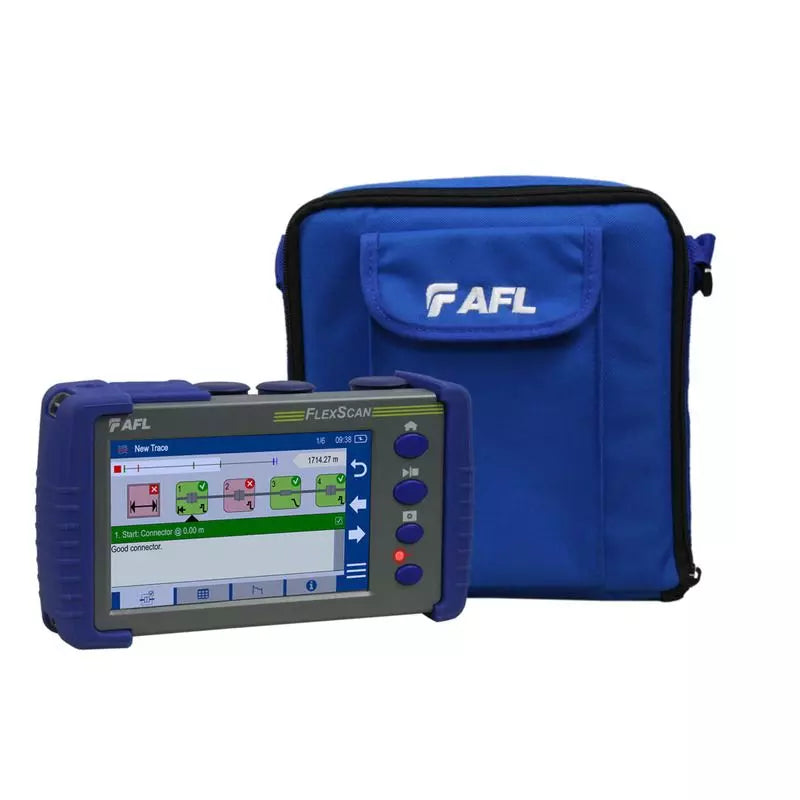

Package Contents
- FlexScan 1310/1550nm OTDR
- AC Charger
- Battery (Internal)
- USB Cable
- SC/UPC Connector Adapters
- Wrist Strap
- Soft Carry Case
- Quick Reference Guide

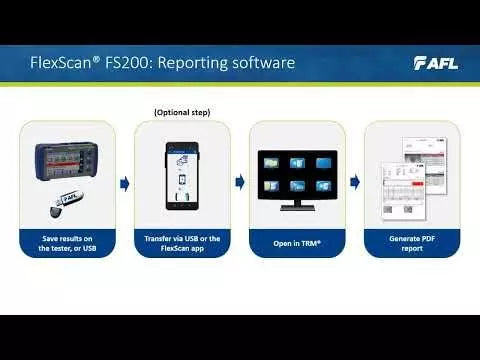

- TRM 2.0 Basic Test Results Manager Software
Compatibility
Inspection Tools- FOCIS Series
Technical Specifications
| Specification | Value |
|---|---|
| Model | FS200-100 |
| Part Number | FS200100BASP1W1U |
| Wavelengths | 1310/1550 nm |
| Connector Type | UPC |
| Display | 4.3" LCD Touchscreen |
| Connectivity | USB, Bluetooth, Wi-Fi |
Frequently Asked Questions
Is the battery user-replaceable?
No, the internal battery is not user-replaceable and must be returned to the factory for service.
What connector type does this unit support?
This specific model is configured for UPC connectors.
Does it support FOCIS inspection?
Yes, it is fully compatible with AFL FOCIS inspection systems.
What is included in the basic kit?
The kit includes the OTDR, charger, battery, cables, SC/UPC adapters, soft case, and test management software.
Can I test multi-mode fiber with this unit?
No, this model is designed for single-mode optical networks.
