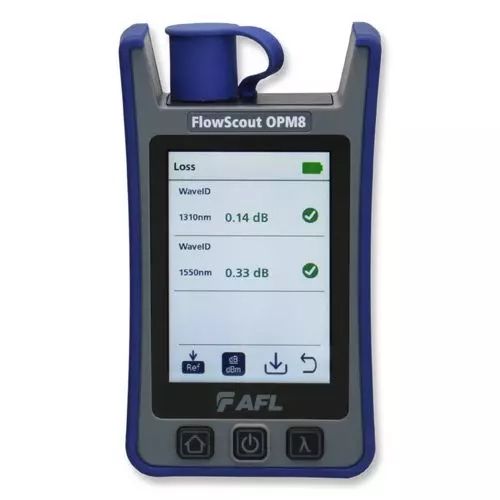

AFL FlowScout OPM8-L Basic Kit Optical Power Meter
The AFL FlowScout OPM8-L Basic Kit is a rugged, handheld optical power meter engineered for field-ready fiber installation, maintenance, and troubleshooting. Designed for high-precision link loss verification and network commissioning, this kit provides N.I.S.T. traceable results for both singlemode and multimode environments.
Built for the demands of field service, the OPM8-L features a compact, durable design and a 5-year warranty, ensuring long-term reliability for telecom and enterprise technicians.
Technical Specifications
| Feature | Specification (OPM8-L) |
| Calibrated Wavelengths | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1610, 1625, 1650 nm |
| Detector Type | InGaAs |
| Measurement Range | +10 to -70 dBm |
| Tone Detect Range | +10 to -50 dBm (+10 to -45 dBm for 850 nm) |
| Wavelength ID Range | +10 to -50 dBm (+10 to -45 dBm for 850 nm) |
| Measurement Accuracy | ± 0.25 dB |
| Display Resolution | 0.01 dB/dBm |
| Measurement Units | dB, dBm |
| Tone Detection | 270 Hz, 330 Hz, 1 kHz, 2 kHz |
| Data Storage | > 1000 results in AFL .ATD (XML) format |
| Display | 3.5 in. color backlit LCD; capacitive touchscreen; 320 x 480 pixels |
| Battery Life | 16 hours continuous use (typical) |
| Recharge Time | 3 hours via USB-C |
| Operating Temp | -10 °C to +50 °C |
| IP Rating | IP54 |
| Dimensions | 14.0 x 8.0 x 3.3 cm (5.5 x 3.1 x 1.3 in) |
| Weight | ≤300 g (≤0.66 lb) |
| Warranty | 5 years |

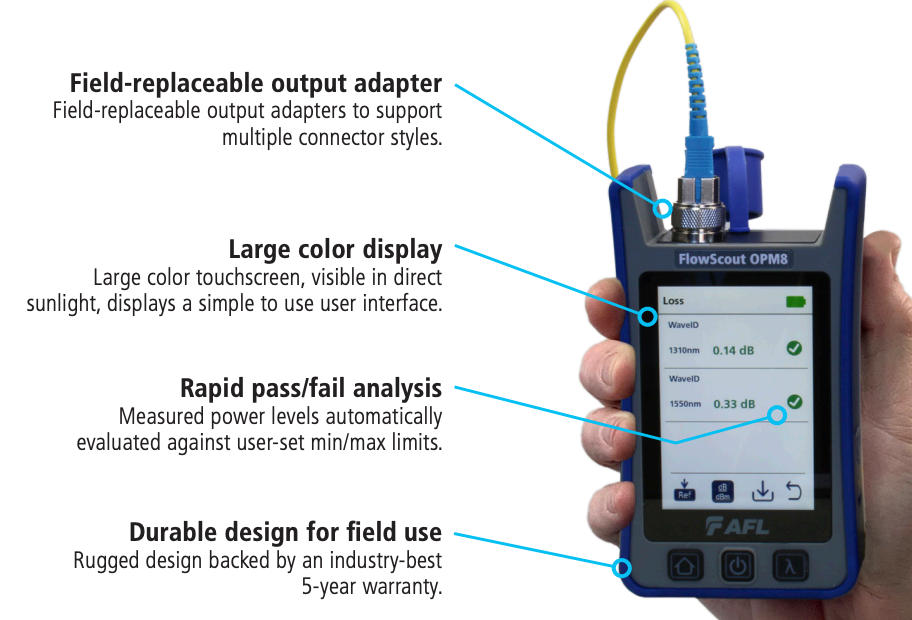

Key Benefits
-
Field-Ready Durability: Rugged handheld design with IP54 rating for protection against dust and water.
-
High Precision: N.I.S.T. traceable accuracy of $\pm$ 0.25 dB across 11 calibrated wavelengths.
-
Streamlined Workflow: Automatic Wave ID and Tone Detection for faster troubleshooting.
-
Comprehensive Kit: Includes 2.5 mm universal adapter, soft carry case, and AC charger to begin testing immediately.
Applications
-
Fiber optic link verification and commissioning.
-
Network maintenance and troubleshooting.
-
Telecom, data center, and enterprise fiber environments.
Kit Includes
- FlowScout OPM8-L Optical Power Meter
- 2.5 mm Universal Adapter
- AC Charger
- Power Cable
- Quick Reference Guide
- Soft Carry Case
