Overview

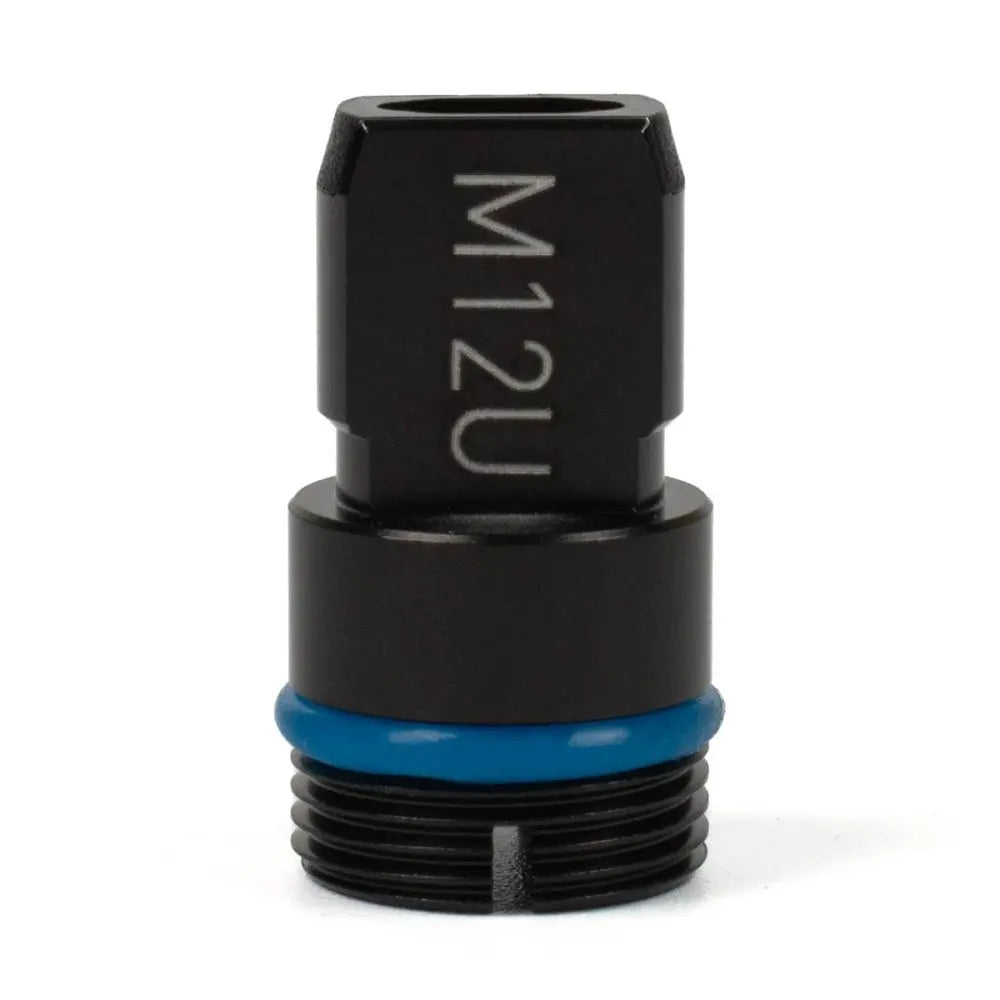

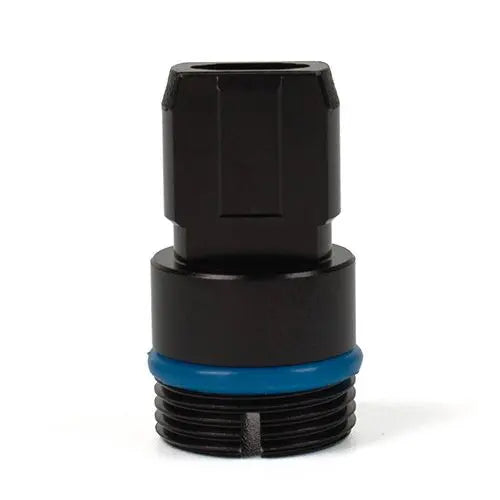

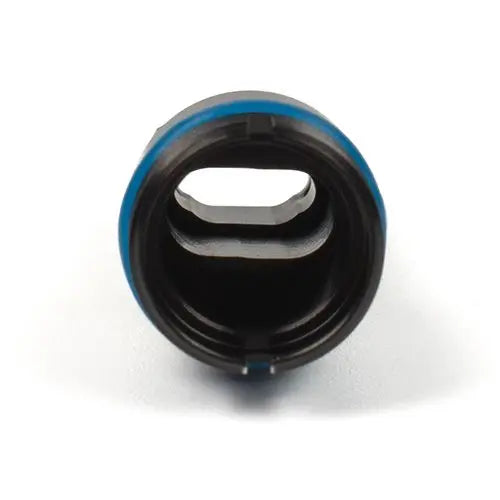

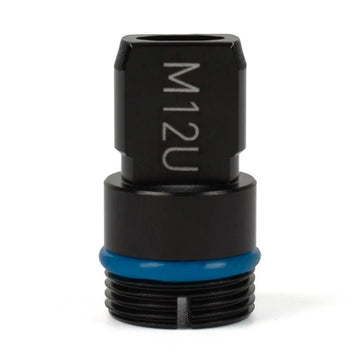

The AFL FLTNG-01-M12U is a specialized adapter tip designed for use with the FOCIS Lightning fiber optic inspection system. It provides a precision interface for inspecting MPO-12 and MPO-24 connectors with a UPC polish.
Engineered for high-density fiber environments, this keyed adapter tip ensures correct alignment during the inspection process. It is an essential component for technicians and network operators requiring accurate, repeatable verification of fiber end-face conditions in data centers and high-speed network infrastructures.
Key Features
-
MPO/MTP Compatibility
Designed specifically for 12 and 24-fiber MPO UPC connector types, ensuring specialized interface support. -
Keyed Alignment
Features an integrated key mechanism for precise orientation and consistent inspection results. -
FOCIS Lightning Integration
Optimized for seamless installation and performance with the AFL FOCIS Lightning inspection platform. -
UPC Polish Support
Configured for UPC (Ultra Physical Contact) end-face geometries to ensure accurate analysis. -
Rugged Construction
Built for field use to maintain optical integrity during repeated connections. -
Simplified Inspection
Facilitates quick swapping of tips in the field, reducing downtime during multi-fiber cable testing.
Applications
- Data Center fiber inspection
- MPO/MTP trunk cable testing
- High-density fiber optic network maintenance
- Enterprise LAN/WAN infrastructure verification
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FLTNG-01-M12U |
| Fiber Type | MPO-12, MPO-24 |
| Polish | UPC |
| Keyed | Yes |
Frequently Asked Questions
What is this adapter tip used for?
This tip is used with the FOCIS Lightning fiber scope to inspect MPO-12 or MPO-24 UPC connectors.
Is this compatible with APC connectors?
No, this model is specifically for UPC-polished connectors. An APC-specific version is required for APC connectors.
Does it support both 12 and 24 fiber counts?
Yes, it is designed to support both 12 and 24-fiber MPO interfaces.
Is the tip keyed?
Yes, it features an integrated key to ensure proper connector orientation.
What system is this compatible with?
It is designed for the AFL FOCIS Lightning inspection system.
