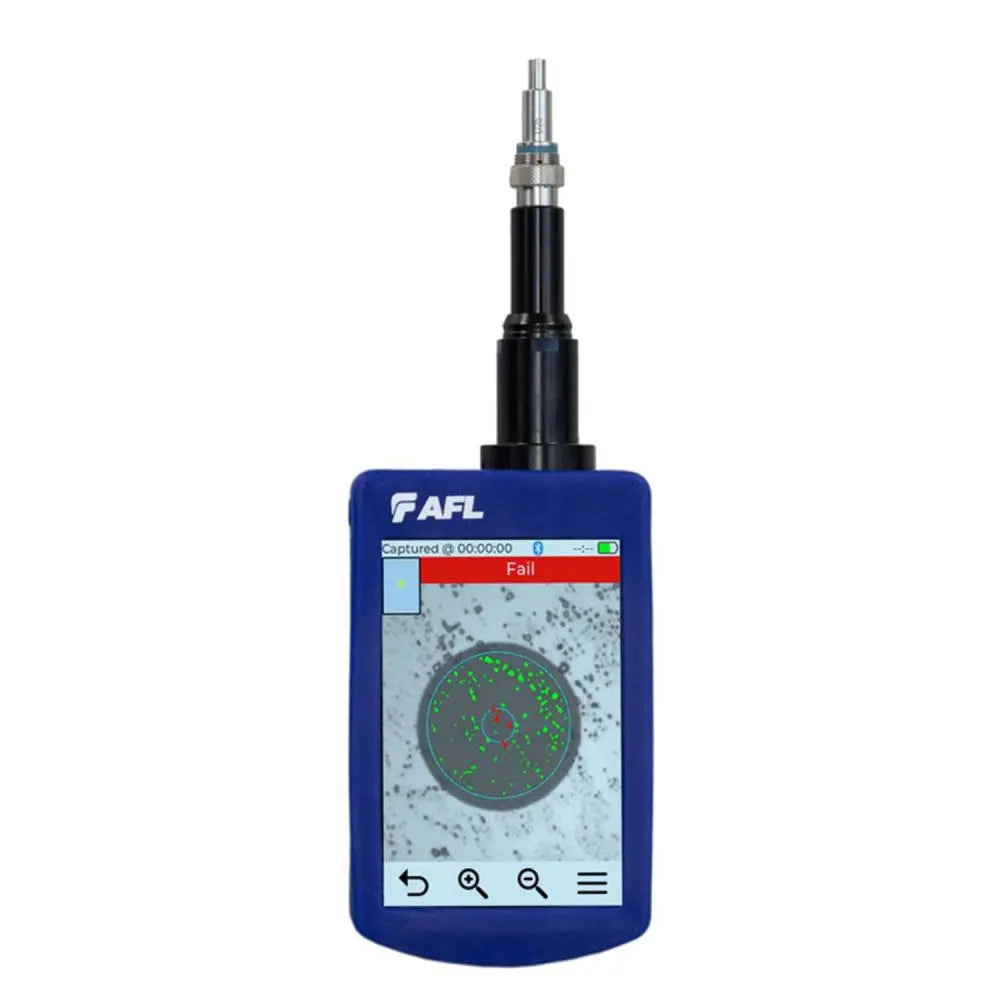

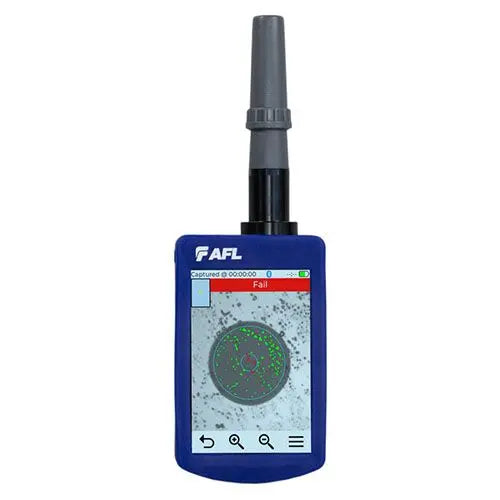

The AFL FOCIS-FLEX3-N is a self-contained, handheld fiber optic connector inspection system designed for technicians who perform installation, troubleshooting, and maintenance of optical networks. By providing automated end-face analysis, it allows for 100% connector inspection without compromising workflow efficiency.
This system features a high-resolution touchscreen for immediate visualization of fiber end-faces. It supports both auto-focus and manual focus, and enables users to capture, analyze, and save results to industry standards like IEC 61300-3-35, IPC-8497-1, and AT&T TP-76461. The unit operates in a tether-free configuration, eliminating the need for external displays or OTDRs, while offering robust file management and data transfer capabilities.
Key Features
-
Automated Pass/Fail Analysis
Performs analysis based on industry-standard criteria like IEC 61300-3-35, ensuring consistent and objective connector quality assessment. -
Integrated Touchscreen
Features a 3.5-inch color TFT touchscreen for clear visualization, intuitive operation, and direct viewing of inspection results. -
Tether-Free Design
Self-contained handheld unit that does not require an external OTDR or display, facilitating easier field maneuverability. -
Bluetooth Connectivity
Pairs wirelessly with AFL test instruments and mobile devices via FlexApp to streamline reporting and data sharing. -
High-Resolution Imaging
Captures detailed end-face images at 2560 x 1920 (JPG) and 678 x 678 (GIF) for comprehensive documentation. -
Auto-Centering
Automatically centers single-fiber images during capture to improve consistency across inspections. -
Long Battery Life
Operates for approximately 8 hours typically, with a low-battery alert at 15 minutes of remaining life. -
Field Durability
Tested to withstand transit drops of 300 mm without a case and 460 mm within the provided soft carry case.
Applications
- Inspection of patch cords and bulkhead-mounted connectors.
- Installation and maintenance of optical fiber infrastructure.
- Verifying connector cleanliness after cleaning procedures.
- Troubleshooting connectivity issues in optical networks.
Package Contents
- FOCIS Flex3 Inspection Scope
- Soft Carry Case

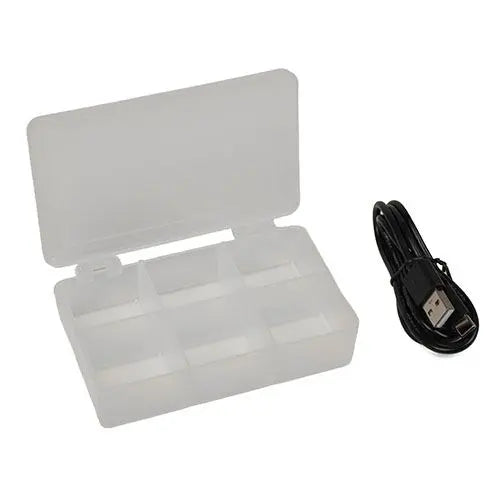

- USB Cable
- AC Charger
- FlexReports Basic Software
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FOCIS-FLEX3-N |
| Part Number | 812X149 |
| Display | 3.5-inch color TFT touchscreen, 320 x 480 |
| Image Storage | Up to 10,000 files (JPG/GIF) |
| Connectivity | Bluetooth, USB-C |
| Dimensions | 67 x 32 x 225 mm |
| Weight | 280 g (0.62 lb) |
| Operating Temperature | 0°C to +50°C |
| Certifications | UL, CE, FCC |
Frequently Asked Questions
Are adapter tips included in the FOCIS-FLEX3-N kit?
No, the FOCIS-FLEX3-N configuration is provided without adapter tips, allowing users to purchase only the specific tips required for their applications.
Can I view images of live fibers?
The unit withstands live fiber power up to +20 dBm without damage, but the end-face images cannot be viewed while the fiber is live.
How are inspection results reported?
The kit includes FlexReports Basic software for report generation. Results can be transferred from the unit to a PC or shared via the mobile FlexApp.
What is the typical battery life?
The unit provides approximately 8 hours of typical operation on a single charge.
Does it support wireless data transfer?
Yes, it supports Bluetooth connectivity to send images and analysis results to compatible AFL test instruments, as well as iOS and Android devices.
