Overview

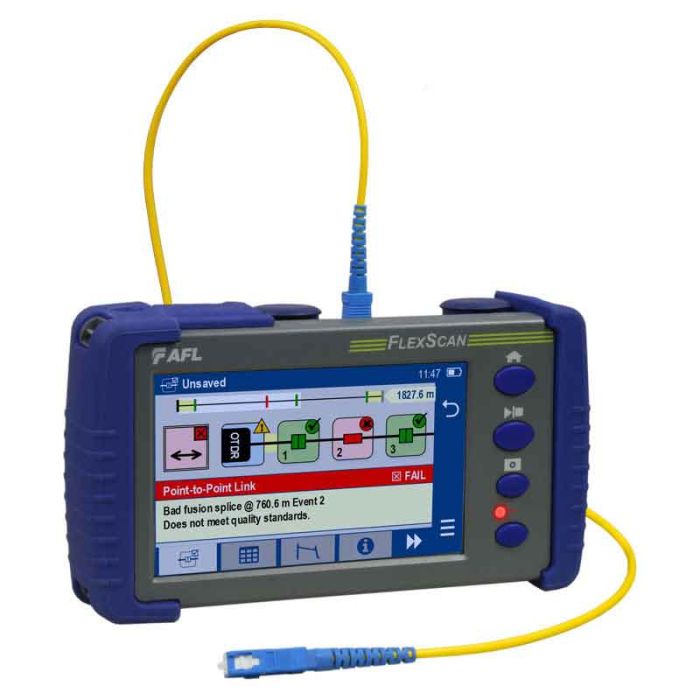

The AFL FS300 FlexScan Quad OTDR is a high-performance, pocket-sized test solution designed for both expert and novice technicians. It facilitates efficient testing of multimode and single-mode networks, including FTTH PON and POLAN architectures, by utilizing SmartAuto multi-pulse acquisition and LinkMap icon-based results.
This kit includes 150-meter single-mode and multimode fiber rings, making it a comprehensive setup for point-to-point and PON characterization. With integrated light source, power meter, and VFL capabilities, it provides an all-in-one approach to locating and resolving network faults while ensuring industry-standard compliance.
Key Features
-
SmartAuto Multi-Pulse
Automates test parameters to ensure accurate event detection in complex networks. -
LinkMap Results
Uses intuitive icons to clearly identify event types and pass/fail status for rapid interpretation. -
High Dynamic Range
Features a 37 dB dynamic range, supporting testing of splitters up to 1:64 ratio. -
PON Dead Zone
Best-in-class 20 meter PON dead zone allows for testing of closely spaced events. -
Integrated Test Tools
Combines OTDR, power meter, light source, and VFL in a single portable device. -
Connectivity Options
Built-in Bluetooth and WiFi allow for wireless data transfer and connection to inspection scopes.
Applications
- FTTH PON network testing
- POLAN network testing
- Multimode and single-mode fiber characterization
- Point-to-point network installation and maintenance
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Series | FlexScan FS300 |
| Part Number | FS300325PLUSP1W1AS1ENGUSASCASCUSCUSC1 |
| Dynamic Range | 37 dB |
| PON Dead Zone | 20 meters |
| Display | 5-inch, 800x480 color touchscreen |
| Connectivity | WiFi, Bluetooth, USB |
Frequently Asked Questions
What is the maximum PON split ratio supported?
The FS300 supports PON testing with split ratios up to 1:64.
Does this unit test both multimode and single-mode fiber?
Yes, this is a Quad OTDR capable of testing both fiber types.
Is report generation software included?
Yes, the kit includes TRM 3.0 Test Results Manager software for Windows.
Can I use this for connector inspection?
Yes, it supports tether-free connector inspection when paired with compatible FOCIS scopes.
How long is the battery life?
The device is designed for all-day battery operation.
