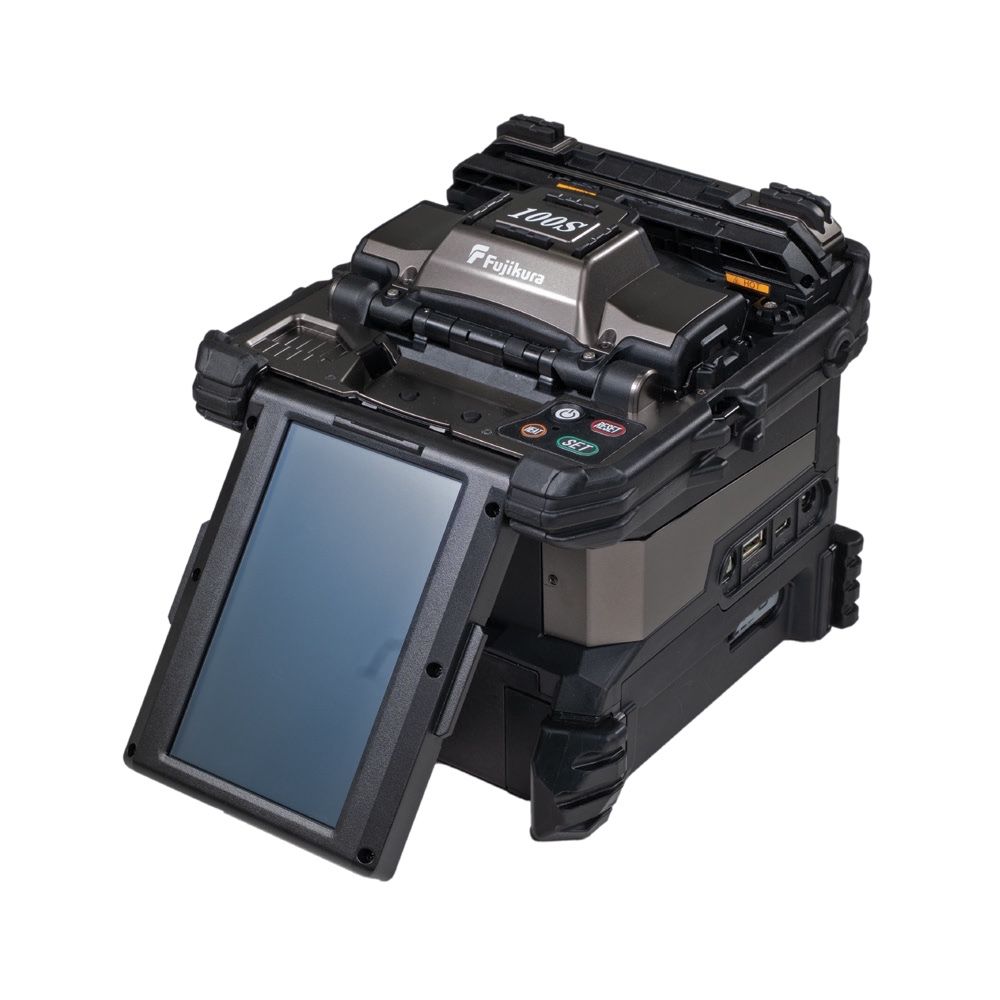

Fujikura 100S Fusion Splicer (No Bluetooth) – Machine Only

The Fujikura 100S is engineered to meet the rigorous demands of modern fiber installation by combining intelligent automation with a user-centric design. This splicer streamlines daily operations through faster fiber preparation and smart adjustments that eliminate manual guesswork, allowing technicians to work with greater efficiency and confidence. Its robust engineering ensures consistent, high-quality core-alignment splices in any environment.

Download product spec sheet

Key Features and Automation

• Dual Fiber Preparation: Supports simultaneous loading of two prepared fibers, which can reduce splicing time by up to 30%.

• Intelligent Fiber Positioning: Automatically adjusts fiber length by pulling more fiber through or retracting excess to ensure optimal positioning for a perfect splice every time.

• Automated Operation: Features an automated wind protector, tube heater, and sheath clamps to accelerate the splicing workflow.

• Splice Coach: A built-in virtual mentor that guides technicians through new techniques, improving productivity and reinforcing best practices.

• Intuitive User Interface: Equipped with a 5-inch TFT touch screen and a customizable menu with visual diagrams that explain how parameter adjustments affect the splicing process.

Security and Portability

• Location-Based Security: Define a GPS-based "Secure Zone." If the unit is moved outside this area, it automatically locks to prevent unauthorized use or theft.

• GPS Splice Stamping: Automatically records the specific location of every splice for comprehensive project tracking and record-keeping.

• Fast USB-C Recharging: Supports quick charging (approximately 4–6 hours) and external battery support for extended field use.

• Rugged Transport: The included multi-function transit case is designed for stability and integrates with modern job-site transport systems.

Technical Specifications

• Alignment Method: Active Core Alignment

• Splice Time: 7 to 9 seconds (SM FAST mode)

• Heat Time: 8 to 10 seconds (60mm slim mode)

• Electrode Life: Approximately 6,000 splices

• Battery Capacity: Approximately 300 splice and heat cycles

• Weight: Approximately 2.8 kg (including battery)

Package Includes

This configuration (AFL No. 5018657) is the version without Bluetooth and includes:

• Fujikura 100S Fusion Splicer

• ADC-22 AC Adapter and ACC-19 AC Power Cord

• BTR-19 Battery Pack

• ELCT2-16C Spare Electrodes (pair)

• Sheath Clamps and SP-05 Fiber Holder Set Plates

• SS03 Single Fiber Stripper

• CC39 Transit Case with Carrying Strap

• USB-02 Cable and Alcohol Dispenser

• Quick Reference Guide and TS-03 Tripod Screw

• Work Tray J-Plate

• Two-Year Warranty
