Overview

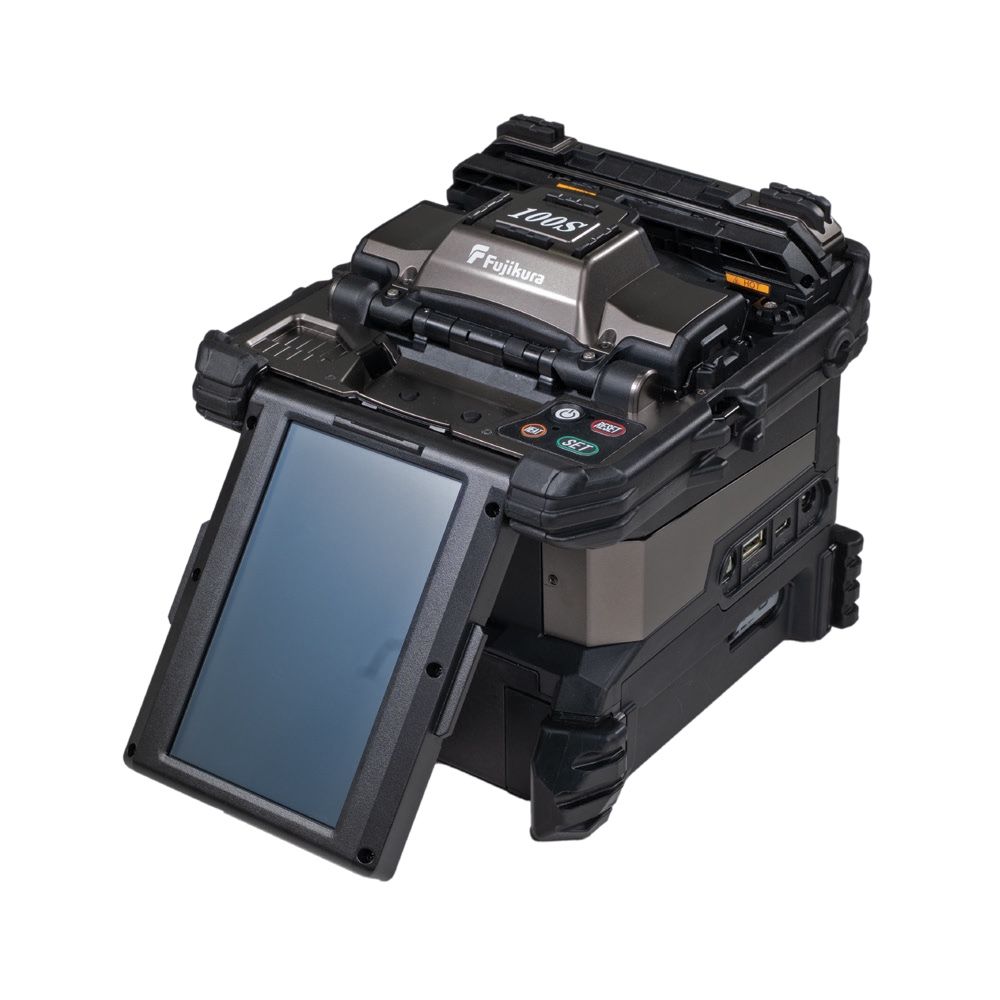

The AFL Fujikura 100S is an active core alignment fusion splicer designed for high-performance fiber installation and repair. By leveraging intelligent automation, this unit streamlines the splicing process, reducing manual intervention through automated wind protection, tube heating, and precision fiber positioning. It is engineered to provide consistent, high-quality splices in demanding field environments, including long-haul and access network installations.
Key technological advancements include an integrated Splice Coach virtual mentor, GPS-based location tracking, and an intuitive 5-inch touch interface. The system supports dual fiber loading for improved efficiency and offers a ruggedized design suitable for professional contractors and data center operators requiring high reliability and rapid, error-free deployment.
Downloads
Key Features
-
Active Core Alignment
Ensures precise fiber positioning for low-loss splicing, critical for high-bandwidth single-mode networks. -
Automated Operation
Automates the wind protector, tube heater, and splicing sequence to increase technician productivity. -
Dual Fiber Loading
Allows two fibers to be loaded simultaneously, reducing overall preparation and splicing time. -
Splice Coach Integration
Provides a built-in virtual guide that helps technicians learn and apply best practices for improved results. -
Location-Based Security
Features GPS-enabled locking to prevent unauthorized use or theft when the unit is moved outside designated areas. -
USB-C Connectivity
Facilitates modern data transfer and fast charging capabilities for improved field utility.
Applications
- Distribution fiber repair
- Long-haul network installation
- Field termination with splice-on connectors
- Access network installation
- Fanout kits, pigtails, and splice cassettes
- OSP cable installation and maintenance
- Optical modules (splitters, couplers, MUXs, EDFAs, and attenuators)
Package Contents
- Fujikura 100S Fusion Splicer (Machine Only)
- ADC-22 AC Adapter
- ACC-19 AC Cord
- BTR-19 Battery
- ELCT2-16C Spare Electrodes (Pair)
- Sheath Clamps
- SP-05 Fiber Holder Set Plates
- USB-02 Cable
- Alcohol Dispenser
- Splicer Carrying Strap
- Quick Reference Guide
- TS-04A Tripod Screw
- Work Tray J-Plate
- SS05 Single Fiber Stripper
- CC-48 Transit Case with Carrying Strap
Technical Specifications
| Specification | Value |
|---|---|
| Alignment Method | Active core alignment |
| Applicable Fiber | Single-mode, Multimode |
| Cladding Diameter | 80 to 150 μm |
| Cleave Length | 5 to 16 mm |
| Splice Time (SM FAST) | 7 to 9 seconds (avg) |
| Electrode Life | 6,000 splices |
| Weight | 2.8 kg (with battery) |
| Display | 5-inch TFT Touchscreen |
| Magnification | 320x |
| Operating Temperature | -10 to 50°C |
| Battery Life | Approx. 300 cycles |
| Wireless | Bluetooth 5.2 LE |
Frequently Asked Questions
Does the kit include a cleaver?
Yes, the kit is configured as a standard fusion splicer kit including the necessary accessories and cleaver for field use.
What is the typical splice time?
In SM FAST mode, the average splice time is approximately 7 to 9 seconds.
Can this splicer be used in extreme temperatures?
The device is rated for operation between -10°C and 50°C.
How long does the battery take to charge?
The battery typically charges from empty in approximately 4 to 6 hours.
Is the electrode replaceable by the user?
Yes, the electrodes are designed to be replaced in the field without the need for specialized tools.
