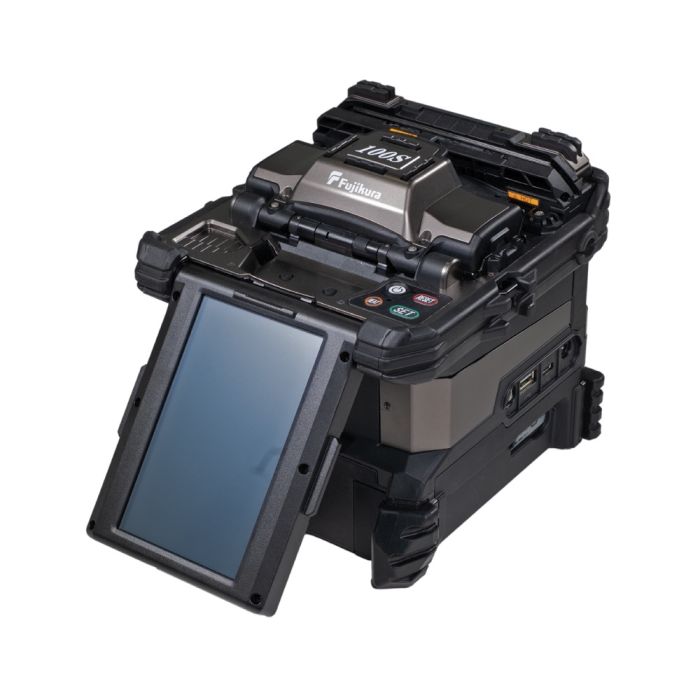

AFL Fujikura SpliceReady 100S Splicer Kit
Overview
The Fujikura 100S is a core-alignment fusion splicer designed for high-precision fiber optic installation. It integrates automated systems for fiber positioning, heating, and splicing, intended for use in environments where consistent splice quality and operational speed are required.
Key Features
- Automated Splicing and Heating: The unit includes an automated wind protector, splice operation, and tube heater, reducing the number of manual steps required during the splicing process.
- Dual Fiber Loading: Supports simultaneous loading of two prepared fibers, which is designed to reduce total preparation time for the operator.
- Embedded Fiber Guide: Features an integrated guide system for fiber positioning, which helps ensure fibers are correctly placed within the machine for alignment.
- Location-Based Security: Includes GPS-based locking to restrict the splicer's operation to predefined geographic zones, providing a method for theft prevention.
- USB-C Connectivity: Equipped with a USB-C port for data transfer and high-speed battery charging, supporting field operations where power access may be limited.
Technical Specifications
| Feature | Specification |
|---|---|
| Compatible Fiber Types | Single fiber, SMF (G.652/G.657), MMF (G.651), DSF (G.653), NZDSF (G.655) |
| Splice Method | Core alignment (PAS system) |
| Interface | USB-C (Charging and Data) |
| Operating Conditions | GPS-locked secure zone functionality |
| Battery Charging | 4-6 hours via USB-C |
| Included Components | ADC-22 AC Adapter, BTR-19 Battery, Electrodes (ELCT2-16C), Sheath Clamps, SP-05 Fiber Holder Set, SS05 Stripper, CC-48 Transit Case |
