Overview
The AFL FUSEConnect FUSE2-LC2SMA-6 is a set of six high-performance, field-installable single mode LC/APC fiber optic connectors designed for 2.0mm jacketed cable. By utilizing fusion splicing technology, these connectors provide a permanent, low-loss connection that is ideal for demanding environments where reliability is critical, such as data centers, central offices, and outside plant installations.
These connectors feature factory-pre-polished ferrules, eliminating the need for field polishing, adhesives, or crimping. Designed for versatility and speed, they are compatible with most standard fusion splicer platforms that utilize fiber holders, simplifying the termination process for technicians in the field.
Key Features
-
Fusion Spliced Termination
Provides a robust and permanent connection superior to mechanical connectors. -
Factory Pre-Polished
Saves significant time in the field by removing the need for manual polishing. -
Low Insertion Loss
Features an average insertion loss of 0.15dB, ensuring high signal integrity. -
High Return Loss
Rated at ≤-65dB, ideal for sensitive applications like RF-overlay and video distribution. -
Easy Assembly

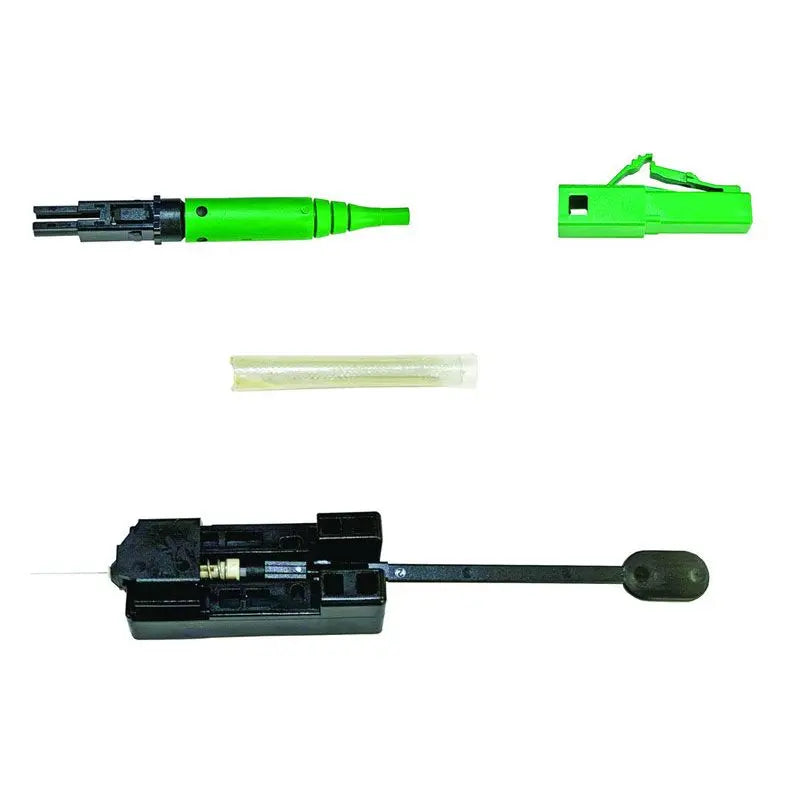

Consists of only 4 components to streamline installation for technicians. -
Broad Compatibility
Works with most fiber holder-based fusion splicing platforms.
Applications
- RF-overlay FTTP networks
- Cable TV backbone networks
- Outside plant (OSP) and FTTx
- MDU FTTP cabling
- Central office and data center installations
- Network repairs and restoration
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FUSE2-LC2SMA-6 |
| Fiber Type | Single Mode (9µm) |
| Connector Type | LC/APC |
| Cable Compatibility | 2.0mm |
| Average Insertion Loss | 0.15 dB |
| Maximum Insertion Loss | 0.25 dB |
| Return Loss | ≤-65 dB |
| Standards | ANSI/TIA-568.3 |
Frequently Asked Questions
Are these connectors reusable?
No, FUSEConnect splice-on connectors are designed for permanent installation.
Do I need specialized tools to terminate these?
Yes, you require a fusion splicer compatible with fiber-holder based connectors, as well as standard fiber preparation tools.
Is polishing required?
No, these connectors feature factory-pre-polished ferrules for immediate use.
What is the typical return loss?
The return loss is ≤-65dB, making them suitable for high-performance networks.
Are they compatible with non-AFL splicers?
Yes, they are compatible with most fiber holder-based fusion splicing platforms.
