Overview

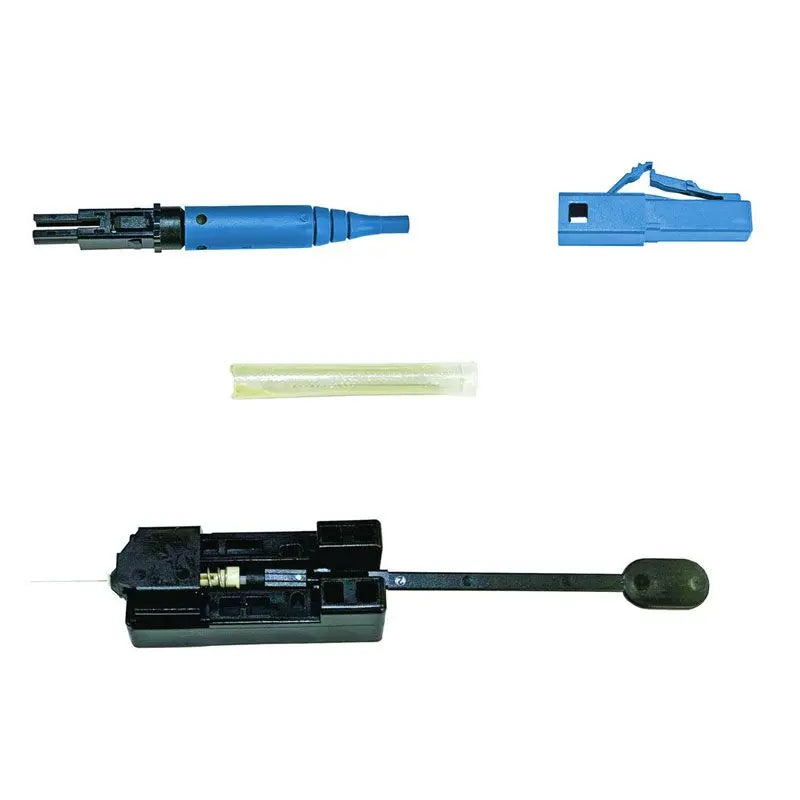

The AFL FUSEConnect FUSE2-LC2SMU-6 is a pack of six next-generation, splice-on single-mode LC/UPC fiber connectors designed for 2.0mm jacketed fiber. These field-installable connectors utilize fusion splicing technology, ensuring a permanent, low-loss connection that integrates directly into the fiber cable without the need for mechanical adhesives or field polishing.
These connectors are engineered for a variety of demanding environments, including FTTP networks, cable TV backbones, data centers, and MDU installations. Featuring a factory pre-polished ferrule, they provide consistent optical performance and ease of assembly for technicians in the field, reducing the time and complexity of network repairs and restoration.
Key Features
-
Fusion-Spliced Termination
Provides a high-strength, permanent connection via fusion splicing, eliminating concerns over mechanical splice degradation. -
Factory Pre-Polished Ferrule
Ensures high-quality optical performance out of the box with no field polishing required. -
Field-Installable Design
Features a 4-component design that simplifies the assembly process for rapid network deployment and repairs. -
Broad Compatibility
Designed to work seamlessly with most fiber holder-based fusion splicing platforms, including Fujikura equipment. -
Low Insertion Loss
Delivers an average insertion loss of 0.15dB (0.25dB max) for minimal signal degradation. -
Standard Compliance
Meets ANSI/TIA-568.3 requirements for reliability in telecommunications cabling.
Applications
- FTTP (Fiber to the Premises) RF-overlay networks
- Cable TV backbone networks
- FTTD (Fiber to the Desk) and FTTx deployments
- MDU (Multi-Dwelling Unit) FTTP cabling
- Central office and data center installations
- Network repair and restoration
Package Contents
- 6 x FUSEConnect LC/UPC Connectors
- 2mm Boot Assemblies
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FUSE2-LC2SMU-6 |
| Fiber Type | Single Mode (SM) |
| Connector Type | LC/UPC |
| Fiber Diameter | 9µm |
| Cable Compatibility | 2.0mm |
| Insertion Loss | 0.15dB (Avg), 0.25dB (Max) |
| Return Loss | ≤ -55dB |
| Compliance | ANSI/TIA-568.3 |
| Color | Blue |
Frequently Asked Questions
Are these connectors reusable?
No, these are permanent field-installable splice-on connectors designed for single-use termination.
Do I need specialized tools for installation?
Yes, these connectors require a compatible fusion splicer to perform the termination.
Is polishing required in the field?
No, the ferrules come pre-polished from the factory.
Are these compatible with non-Fujikura splicers?
Yes, they are compatible with most fiber holder-based fusion splicing platforms.
Can I use these on 900µm cable?
No, this specific part number is designed for 2.0mm jacketed fiber.
