Overview
The AFL FUSEConnect FUSE2-LC9M62-6 is a precision-engineered, field-installable multimode fiber connector designed for rapid and efficient termination. By utilizing fusion splicing technology, these connectors ensure a permanent, high-performance connection that eliminates the need for field adhesives, crimping, or manual polishing.
These connectors feature a factory pre-polished ferrule, significantly reducing installation time while maintaining consistent optical performance. They are designed for 62.5µm multimode fiber with 900µm buffered cable, making them ideal for a wide range of environments including data centers, central offices, and FTTx networks.
Key Features
-
Fusion-Spliced Termination
Ensures a robust, permanent fiber connection suitable for demanding network environments. -
Factory Pre-Polished Ferrule
Eliminates the requirement for time-consuming field polishing and epoxy curing. -
High-Precision Performance
Features an average insertion loss of 0.1dB and a maximum of 0.25dB for optimized signal integrity. -
Field Installable
Simplifies onsite repairs and restoration, reducing downtime in critical infrastructure. -

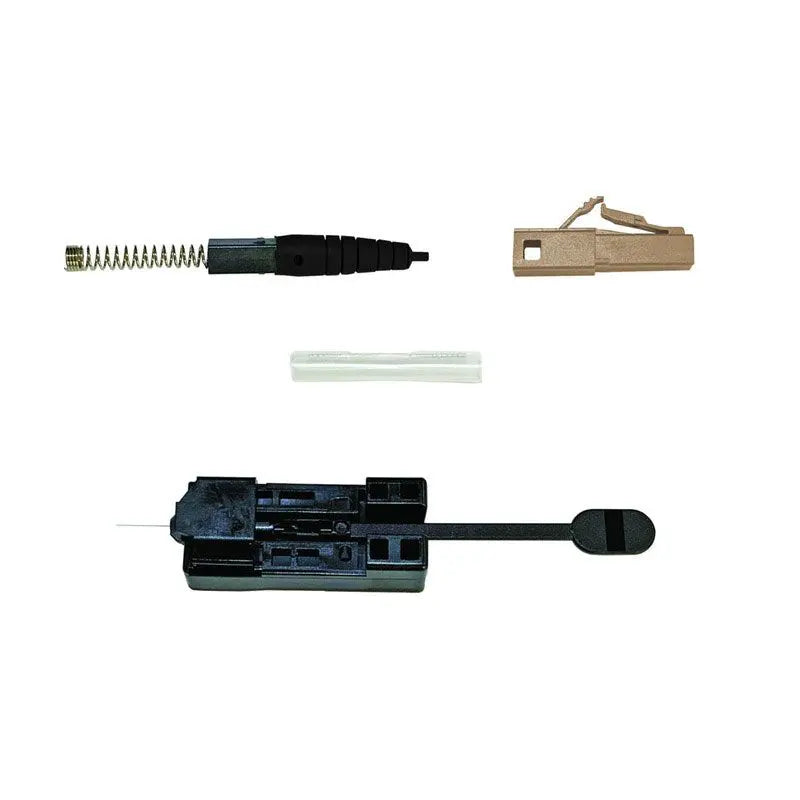

4-Component Assembly
Streamlined design allows for quick and accurate manual assembly in the field. -
Broad Compatibility
Compatible with most fiber holder-based fusion splicing platforms, including standard Fujikura equipment.
Applications
- FTTP Networks (RF-Overlay)
- Cable TV Backbone Networks
- Data Center Installations
- FTTx and FTTD Deployments
- MDU FTTP Cabling
- Central Office Upgrades
- Emergency Fiber Repairs and Restorations
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FUSE2-LC9M62-6 |
| Connector Type | LC/PC |
| Fiber Type | Multimode 62.5µm |
| Cable Compatibility | 900µm |
| Average Insertion Loss | 0.1dB |
| Maximum Insertion Loss | 0.25dB |
| Return Loss | ≤-35dB |
| Compliance | ANSI/TIA-568.3 |
| Color | Beige |
| Quantity | 6-Pack |
Frequently Asked Questions
Are these connectors suitable for single-mode fiber?
No, this model is specifically designed for 62.5µm multimode fiber applications.
Do I need specialized tools to terminate these?
Yes, a fusion splicer compatible with fiber holder-based connectors is required for termination.
Does this kit include adhesive?
No, because these are fusion-spliced connectors, no adhesives, crimps, or polishing films are required.
Are they TAA compliant?
No, this product is non-TAA compliant.
Can these be reused if a mistake is made during installation?
These are intended for permanent fusion-spliced installation and are generally not designed for field re-termination.
