Overview
The AFL FUSEConnect FUSE2-LC9SMA-6 is a set of six field-installable, splice-on LC/APC fiber connectors designed for single-mode 9µm applications. These connectors feature a factory pre-polished ferrule, eliminating the need for field polishing, adhesives, or crimping. By utilizing a fusion splicer for termination, they provide a consistent, high-performance connection suitable for demanding network environments.
Engineered for versatility, these connectors are ideal for RF-overlay FTTP networks, cable TV backbones, outside plant (OSP) deployments, and data center installations. Their robust construction supports rapid repair and restoration in the field, ensuring minimal downtime during network maintenance or expansion.
Key Features
-
Factory Pre-Polished Ferrule
Eliminates the requirement for manual polishing in the field, reducing installation time and complexity. -
Fusion Splicing Termination
Uses a fusion splicer for permanent, low-loss termination without the need for adhesives or mechanical crimps. -
High Optical Performance
Delivers an average insertion loss of 0.15dB and a return loss of ≤-65dB for signal integrity. -

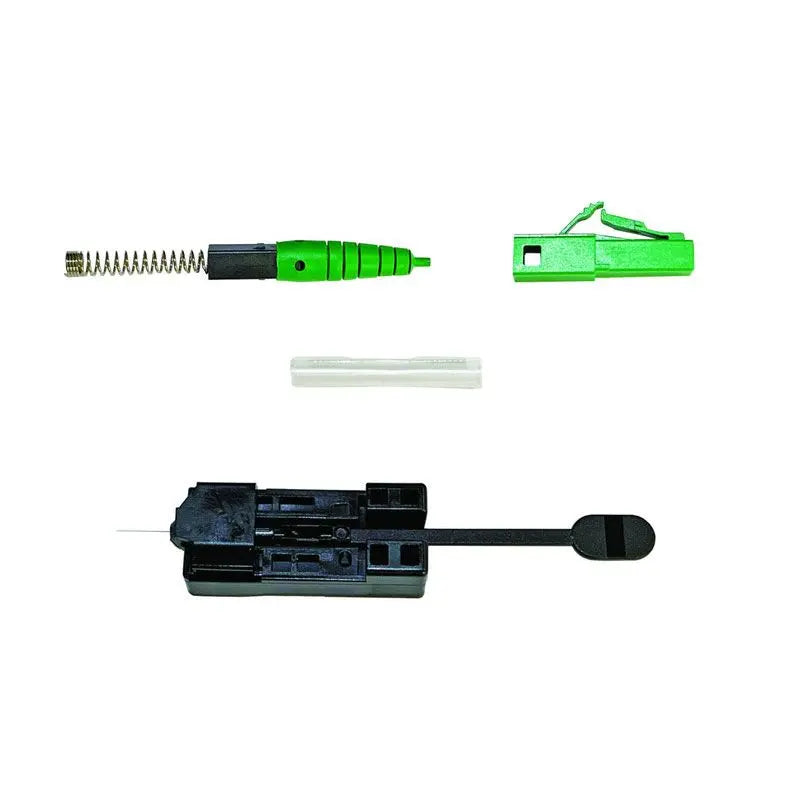

Compact 4-Component Design
Simplifies the assembly process for field technicians, promoting efficiency during deployment. -
Field Installable
Enables rapid connectorization and repair in outdoor or centralized environments, increasing operational flexibility. -
Standardized Compliance
Meets ANSI/TIA-568.3 requirements, ensuring compatibility with standard network architectures.
Applications
- RF-overlay FTTP networks
- Cable TV backbone networks
- Outside plant (OSP) and FTTx cabling
- FTTD (Fiber to the Desk)
- MDU FTTP installations
- Central office and data center maintenance
- Emergency restoration and repair
Compatibility
Fusion Splicers- Fujikura fusion splicers
- Most fiber holder-based fusion splicing platforms
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FUSE2-LC9SMA-6 |
| Part Number | 151X406 |
| Connector Type | LC/APC |
| Fiber Type | Single Mode (9µm) |
| Cable Compatibility | 900µm |
| Insertion Loss | 0.15dB (Avg), 0.25dB (Max) |
| Return Loss | ≤-65dB |
| Standards Compliance | ANSI/TIA-568.3 |
| Color | Green |
Frequently Asked Questions
Do these connectors require field polishing?
No, these connectors arrive with a factory pre-polished ferrule, which eliminates the need for field polishing.
Are adhesives or crimping tools required?
No, these connectors are terminated using a fusion splicer, removing the need for adhesives or mechanical crimping.
What kind of fiber are these connectors compatible with?
They are designed for 9µm single-mode fiber with 900µm boots.
Are they compatible with all fusion splicers?
They are compatible with Fujikura fusion splicers and most other platforms that utilize fiber holders.
What is the typical insertion loss for this connector?
The average insertion loss is 0.15dB, with a maximum of 0.25dB.
