Overview

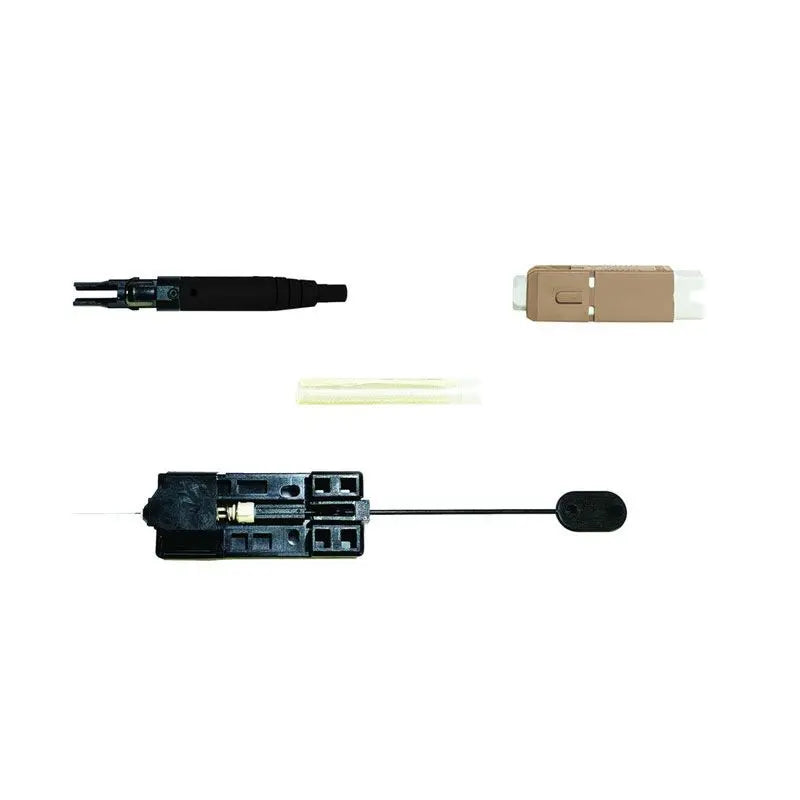

The AFL FUSEConnect FUSE2-SC3M62-6 is a set of six next-generation, field-installable multimode SC/PC connectors designed for 62.5µm fiber. Engineered for rapid termination, these splice-on connectors eliminate the need for adhesives, crimping, or manual polishing in the field. By utilizing a standard fusion splicer for termination, they provide a consistent, high-performance connection suitable for critical network environments.
These connectors are optimized for a variety of applications including data center installations, MDU FTTP cabling, enterprise backbone repairs, and FTTx deployments. The 4-component assembly ensures ease of use, while the factory-pre-polished ferrule maintains low insertion loss and reliable optical performance in demanding network configurations.
Key Features
-
Fusion-Splice Termination
Uses a fusion splicer for termination, eliminating the requirement for messy adhesives or manual crimping. -
Factory Pre-Polished Ferrule
Features a factory-polished end face that removes the need for field polishing, ensuring consistent results. -
4-Component Assembly
Simplified design allows for quick, reliable, and easy field installation. -
Low Insertion Loss
Delivers an average insertion loss of 0.1dB, with a maximum of 0.25dB for high-efficiency signal transmission. -
Broad Compatibility
Works with most fiber holder-based fusion splicing platforms, including Fujikura equipment. -
Standard Compliance
Meets ANSI/TIA-568.3 requirements for optical fiber cabling standards.
Applications
- RF-overlay FTTP networks
- Cable TV backbone networks
- FTTx and MDU FTTP cabling
- Central office and data center installations
- Fiber network repairs and restoration
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FUSE2-SC3M62-6 |
| Connector Type | SC/PC |
| Fiber Type | Multimode (62.5µm) |
| Boot Size | 3.0mm |
| Average Insertion Loss | 0.1dB |
| Maximum Insertion Loss | 0.25dB |
| Return Loss | ≤-35dB |
| Quantity | 6-Pack |
| Color | Beige |
| Standards | ANSI/TIA-568.3 |
Frequently Asked Questions
Do these connectors require epoxy?
No, these are splice-on connectors that terminate via a fusion splicer, eliminating the need for adhesives or crimping.
Are these compatible with non-Fujikura splicers?
Yes, they are compatible with most fiber holder-based fusion splicing platforms.
What is the typical insertion loss?
The average insertion loss is 0.1dB, with a maximum specification of 0.25dB.
Does this require manual polishing?
No, the ferrules come factory-pre-polished.
What boot size are these connectors for?
These specific connectors include 3.0mm boots.
