Overview

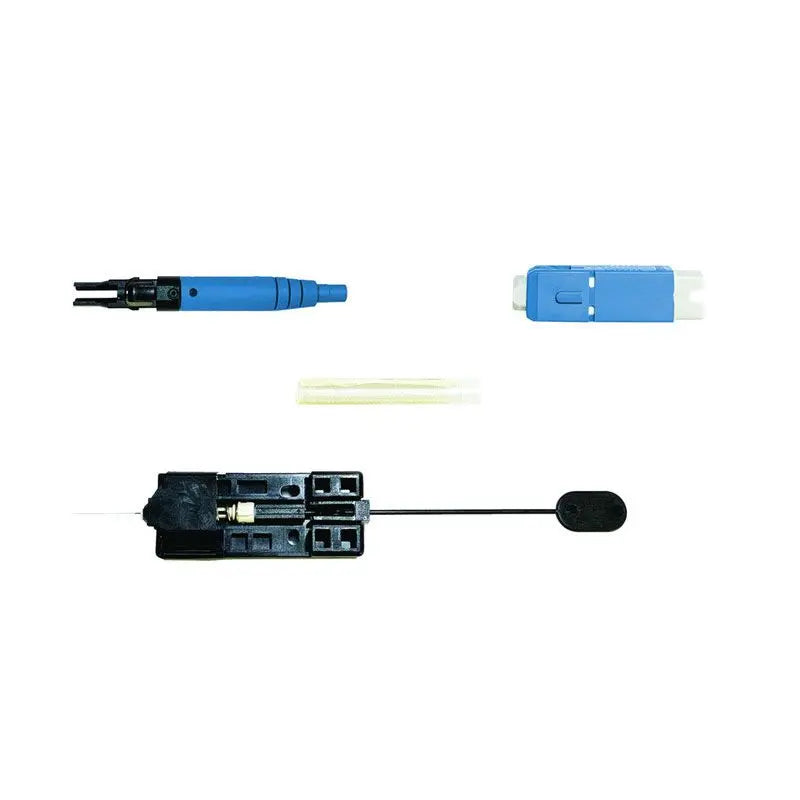

The AFL FUSEConnect FUSE2-SC3SMU-6 is a set of six next-generation, fusion-spliced, field-installable single-mode fiber optic connectors. Designed with a 9µm SC/UPC interface and 3mm boots, these connectors are engineered for high-precision termination in demanding field environments. They utilize factory pre-polished ferrules, eliminating the need for field polishing, adhesives, or crimping.
These connectors are suitable for a wide range of applications including RF-overlay FTTP networks, cable TV backbones, outside plant (OSP), FTTx, MDU FTTP, and data center installations, repairs, or restoration. They are designed for compatibility with standard fusion splicers and fiber holder-based platforms, offering a streamlined assembly process with only four main components.
Key Features
-
Fusion-Spliced Termination
Ensures permanent, low-loss connections by utilizing a fusion splicer rather than mechanical methods. -
Factory Pre-Polished Ferrules
Eliminates the time-consuming field polishing process for faster installation. -
Field-Installable Design
Four-component design allows for simple and efficient assembly on-site. -
Adhesive-Free Assembly
Reduces installation steps and potential failure points caused by epoxy curing. -
Industry Compliance
Fully meets ANSI/TIA-568.3 standards for fiber connectivity. -
High Compatibility
Works with Fujikura fusion splicers and various fiber holder-based splicing platforms.
Applications
- RF-overlay FTTP networks
- Cable TV backbone networks
- Outside plant (OSP) and FTTx deployments
- MDU FTTP cabling
- Central office and data center installations
- Fiber network repairs and restoration
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FUSE2-SC3SMU-6 |
| Fiber Type | Single Mode (9µm) |
| Connector Type | SC/UPC |
| Cable Compatibility | 3mm |
| Quantity | 6 |
| Average Insertion Loss | 0.15 dB |
| Maximum Insertion Loss | 0.25 dB |
| Return Loss | ≤ -55 dB |
| Standards | ANSI/TIA-568.3 |
Frequently Asked Questions
Does this connector require epoxy or polishing in the field?
No, these are fusion-spliced connectors with factory pre-polished ferrules, eliminating the need for adhesives or manual polishing.
Are these connectors compatible with my existing fusion splicer?
They are designed for compatibility with Fujikura fusion splicers and most fiber holder-based fusion splicing platforms.
What is the typical insertion loss for this connector?
The average insertion loss is 0.15 dB, with a maximum specification of 0.25 dB.
What does the package contain?
The package includes six single-mode SC/UPC fiber connectors with 3mm boots.
What fiber type are these connectors for?
These are designed for single-mode fiber (9µm).
