Overview
The AFL FUSEConnect FUSE2-SC9SMA-6 is a set of six field-installable splice-on single-mode SC/APC fiber optic connectors. Engineered for efficient field termination, these connectors utilize fusion splicing technology to provide a secure and durable connection without the need for traditional adhesives, crimping, or manual polishing.
These connectors are designed to support a wide range of network environments, including FTTP, FTTD, data centers, and MDU cabling. Their factory pre-polished ferrules ensure consistent optical performance, making them ideal for high-precision repairs, restoration projects, and initial installations where speed and reliability are required.
Key Features
-
Fusion Splice Technology
Ensures a permanent, low-loss connection by fusion splicing the fiber directly to the connector ferrule. -
Factory Pre-Polished
Eliminates the requirement for field polishing, saving time and ensuring consistent optical geometry. -
Simplified Assembly

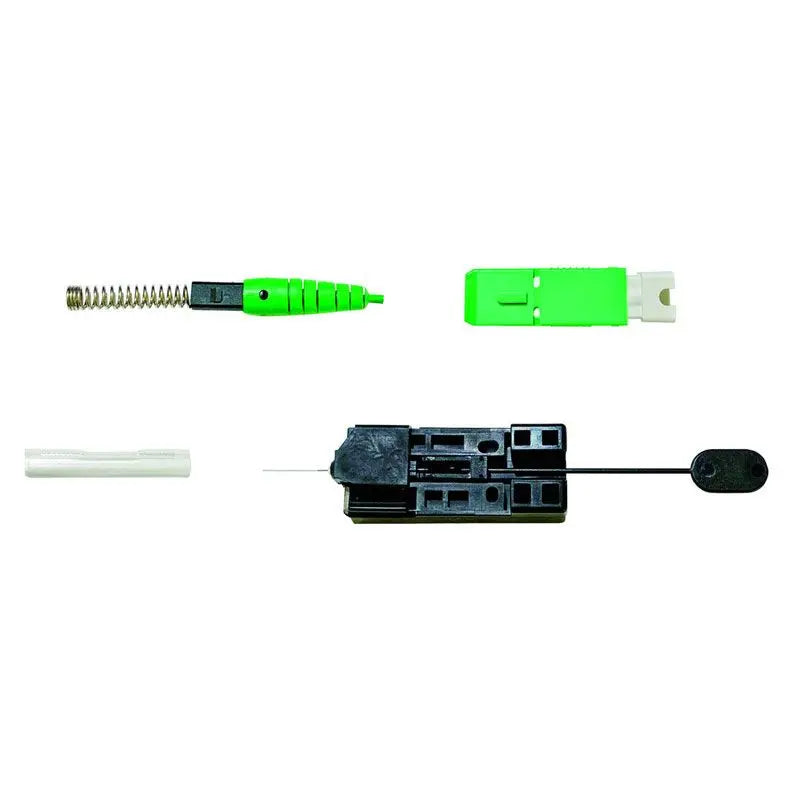

Utilizes a four-component design for rapid, straightforward field installation. -
High Optical Performance
Provides an average insertion loss of 0.15dB and a return loss of ≤-65dB for demanding network requirements. -
Broad Compatibility
Designed to work with most standard fiber holder-based fusion splicing platforms. -
Durable 900um Boots
Optimized for tight-buffered fiber applications in high-density environments.
Applications
- FTTx (Fiber to the x) and MDU FTTP cabling
- RF-overlay FTTP network installations
- Cable TV (CATV) backbone infrastructure
- Data center installations and maintenance
- Central office network restoration and repair
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FUSE2-SC9SMA-6 |
| Fiber Type | Single Mode (SM) |
| Connector Type | SC/APC |
| Fiber Diameter | 9µm |
| Boot Size | 900µm |
| Average Insertion Loss | 0.15 dB |
| Maximum Insertion Loss | 0.25 dB |
| Return Loss | ≤-65 dB |
| Standards | ANSI/TIA-568.3 |
| Package Quantity | 6 connectors |
Frequently Asked Questions
Are these connectors pre-polished?
Yes, all FUSEConnectors come with factory pre-polished ferrules, requiring no additional polishing in the field.
What kind of equipment is needed for installation?
These connectors require a compatible fusion splicer to perform the termination.
Are they compatible with Fujikura splicers?
Yes, they are compatible with Fujikura fusion splicers and most other fiber holder-based splicing platforms.
Is adhesive required for assembly?
No, these are fusion-spliced connectors and do not require adhesives or crimping.
What is the primary application for the APC polish?
The SC/APC (Angled Physical Contact) connectors are designed to minimize back-reflection, commonly used in RF-overlay and high-bandwidth optical networks.
