Overview

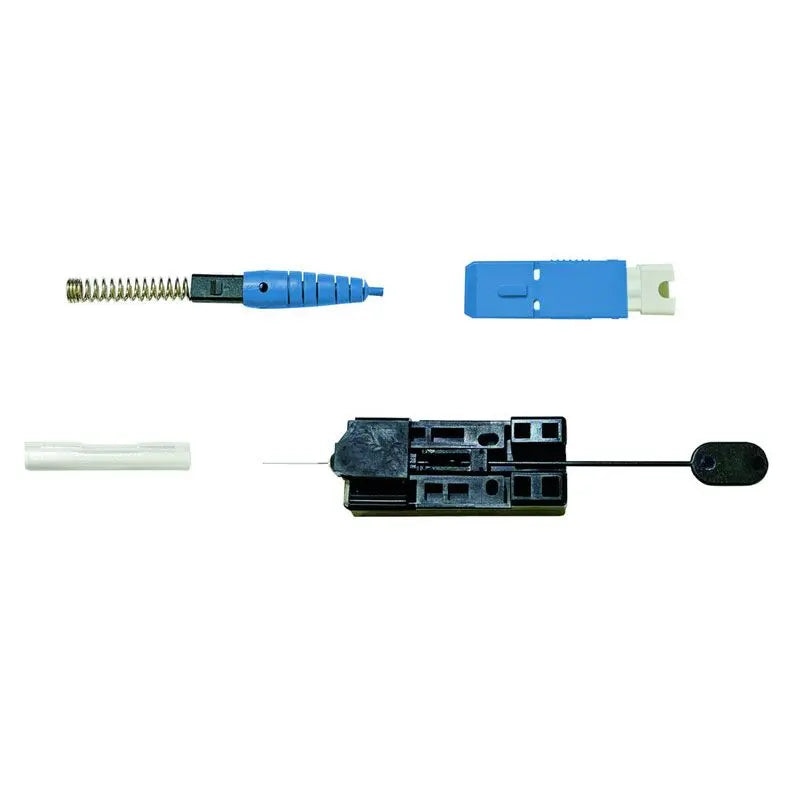

The AFL FUSEConnect FUSE2-SC9SMU-6 consists of a package of six factory-pre-polished, field-installable SC/UPC single-mode fiber connectors. These splice-on connectors are designed for 900µm buffered fiber, providing a fusion-spliced termination that eliminates the need for adhesives, crimping, or manual polishing in the field.
Engineered for high-performance optical networks, these connectors support applications in FTTP, cable TV backbones, data centers, and outside plant installations. The four-component design ensures efficient assembly, while factory-controlled polishing guarantees consistent optical performance suitable for professional network restoration and installation environments.
Key Features
-
Fusion-Spliced Termination
Ensures a permanent, low-loss connection compatible with standard fusion splicing platforms. -
Factory Pre-Polished Ferrule
Eliminates time-consuming field polishing and ensures consistent UPC reflectance. -
900µm Compatibility
Optimized for tight-buffered fiber applications in central offices and data centers. -
Simplified Assembly
Four-component design reduces technician assembly time and potential errors. -
Low Insertion Loss
Features an average insertion loss of 0.15dB, supporting high-integrity signal transmission. -
High Return Loss
Maintains a return loss of ≤-55dB for reliable operation in sensitive optical networks.
Applications
- RF-overlay FTTP networks
- Cable TV backbone networks
- Outside plant and FTTx
- FTTD (Fiber-to-the-Desk)
- MDU FTTP cabling
- Central office and data center installations
- Fiber network repairs and restoration
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | FUSE2-SC9SMU-6 |
| Connector Type | SC/UPC |
| Fiber Type | Single-mode (9µm) |
| Cable Compatibility | 900µm |
| Average Insertion Loss | 0.15dB |
| Maximum Insertion Loss | 0.25dB |
| Return Loss | ≤-55dB |
| Standards Compliance | ANSI/TIA-568.3 |
Frequently Asked Questions
Are these connectors pre-polished?
Yes, FUSEConnect connectors feature factory pre-polished ferrules, requiring no additional polishing in the field.
Can I use these with any fusion splicer?
These are compatible with Fujikura fusion splicers and most other fiber holder-based fusion splicing platforms.
What is the primary benefit of this design?
The splice-on design provides a fusion-spliced connection that is more reliable than mechanical connectors and faster than traditional epoxy-and-polish field termination.
What fiber type are these for?
These are specific to 9µm single-mode fiber with 900µm buffer jackets.
How many connectors are included in the package?
This package includes 6 individual connectors.
