Overview

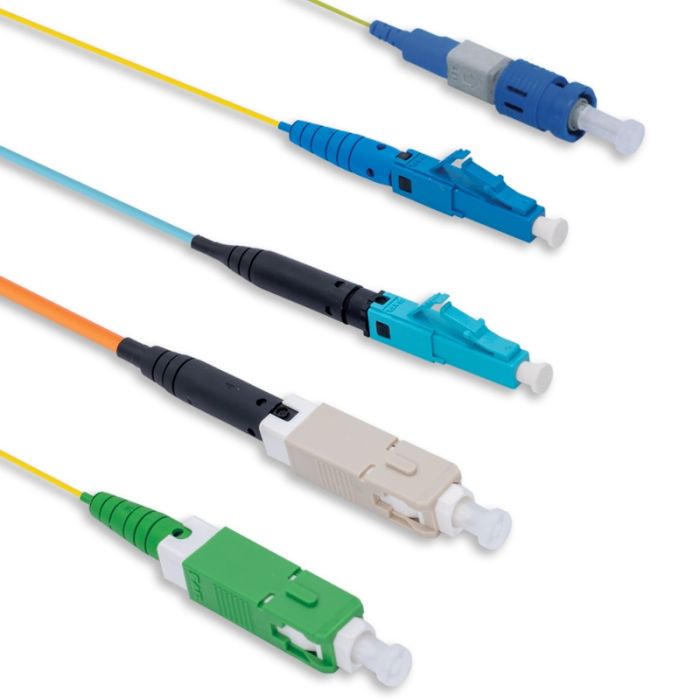

The AFL FUSEConnect is a field-installable, fusion-spliced connector designed for high-performance singlemode optical networks. By utilizing a fusion splicer to terminate the connector in the field, this solution eliminates the need for adhesives, crimping, or index-matching gels. This process minimizes the risk of operator error and reduces expensive connector scrap, providing a consistent, high-quality termination.
Engineered for demanding analog optical networks, the FUSEConnect LC APC series ensures true APC return loss performance. This next-generation design features simplified installation procedures and is fully compatible with most standard fiber holder-based fusion splicing platforms, including those from Fujikura.
Key Features
-
Fusion Splicing Technology
Uses a fusion splicer for termination, ensuring permanent, low-loss connections. -
No-Polish Design
Eliminates the time and mess associated with field polishing. -
Adhesive-Free
Removes the need for epoxies, speeding up the installation process. -
True APC Performance
Designed to meet strict return loss requirements for analog optical networks. -
Industry Compatibility
Intermateable with standard industry SC and LC interfaces. -
Splice Platform Versatility
Compatible with Fujikura and most common fusion splicer models. -
Simplified Installation
Next-generation Gen 5 design improves ease-of-use for technicians. -
Compliance
Meets ANSI/TIA-568.3 standards for fiber optic connectivity.
Applications
- Field restoration of fiber optic links
- Analog optical networks requiring high return loss
- FTTX and premise network deployments
- Enterprise and data center cabling
Package Contents
- 6 x LC APC Singlemode 900um FUSEConnect Gen 5 Connectors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Part Number | FUSE2LC9SMA6 |
| Connector Type | LC APC |
| Fiber Type | Singlemode |
| Fiber Size | 900um |
| Generation | Gen 5 |
| Standards | ANSI/TIA-568.3 |
Frequently Asked Questions
Are these connectors reusable?
No, these are field-installable splice-on connectors intended for permanent termination.
Do I need a specific splicer?
They are compatible with Fujikura and most fiber holder-based fusion splicing platforms.
Does this kit include adhesives?
No, these connectors are fusion-spliced and do not require any adhesives or epoxies.
What is the return loss performance?
The FUSEConnect design provides true APC return loss performance suitable for analog optical networks.
How many connectors are in a pack?
This package includes 6 connectors.
