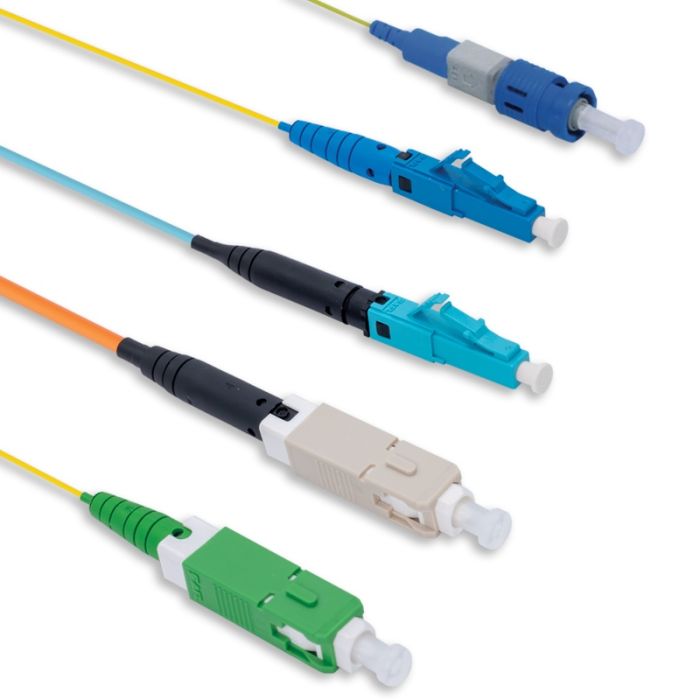

AFL FUSECONNECT LC UPC Singlemode 900um Gen 5 (Pack of 6)

Overview

The AFL FUSEConnect LC UPC Singlemode connectors are field-installable, splice-on connectors designed for high-performance optical networks. By utilizing a fusion splicer to terminate the fiber in the field, these connectors eliminate the need for adhesives, crimping, or manual polishing. This advanced termination process significantly reduces the potential for operator error and material waste.

Engineered for efficiency, the Gen 5 design features a simplified, user-friendly interface that facilitates faster installations. These connectors are specifically built to address stringent return loss requirements common in analog optical networks, providing a robust and reliable connection for 900um fiber applications.

Key Features

• Field Installable
  Designed for direct termination in the field using a fusion splicer, reducing the need for pre-terminated pigtails.
• Fusion-Spliced Termination
  Ensures a permanent, low-loss connection by fusing the fiber directly to the connector ferrule.
• No Adhesives or Polishing
  Simplifies the termination process and eliminates the need for messy glues or time-consuming polishing steps.
• Next-Gen Design
  Features improved, simplified components for easier handling and faster installation speeds.
• High Return Loss Performance
  Engineered to meet the strict return loss requirements of analog optical and high-performance networks.
• Wide Compatibility
  Compatible with Fujikura field fusion splicers and most common fiber holder-based splicing platforms.

Applications

• Analog optical networks
• Field fiber repairs and restoration
• FTTH and premise installations
• High-density data center cabling

Package Contents

• 6 x LC UPC Singlemode 900um Connectors

Technical Specifications

Frequently Asked Questions

Are these connectors compatible with non-Fujikura splicers?
Yes, they are designed to be compatible with Fujikura fusion splicers as well as most other common fiber holder-based fusion splicing platforms.

Do these require index-matching gel?
No, the FUSEConnect design eliminates the need for adhesives, crimping, or index-matching gels.

Is polishing required in the field?
No, these are splice-on connectors that eliminate the need for manual field polishing.

How many connectors are included?
This product is sold as a pack containing 6 connectors.

Are these connectors suitable for analog networks?
Yes, they are specifically designed to address return loss concerns common in analog optical networks.

Downloads

• Product PDF
