Overview

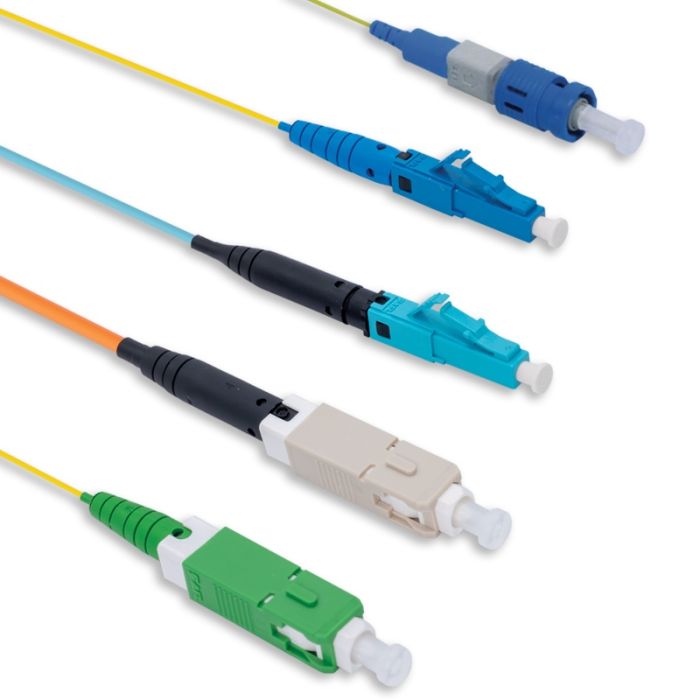

The AFL FuseConnect SC APC connector is a field-installable, fusion-spliced connector designed to deliver high-performance fiber termination without the need for adhesives, crimping, or manual polishing. By utilizing a fusion splicer to terminate the connector, this system minimizes potential operator error and significantly reduces the risk of connector scrap compared to traditional mechanical methods.
This Gen 5 series features a simplified design for improved ease of installation and updated packaging. Engineered for applications requiring high return loss performance, it is an ideal solution for analog optical networks and high-density fiber deployments. The design is compatible with a wide range of industry-standard fusion splicing platforms.
Key Features
-
Field-Installable
Designed for efficient, on-site termination to reduce installation time and complexity. -
No Adhesives or Polishing
Eliminates the use of epoxies and polishing film, minimizing waste and potential for errors. -
True APC Performance
Provides low return loss suitable for demanding analog optical networks. -
Industry Intermateable
Fully compatible with standard SC-style mating adapters and enclosures. -
Gen 5 Design
Features an improved, simplified architecture for faster and more consistent installations. -
Multi-Platform Compatibility
Compatible with Fujikura and other major fiber holder-based fusion splicers.
Applications
- Analog optical networks
- FTTX networks
- Field termination where factory-terminated patch cords are not viable
- Data center fiber management
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Connector Type | SC |
| Polish | APC |
| Fiber Type | Singlemode |
| Cable Compatibility | 900µm |
| Series | Gen 5 |
| Compliance | ANSI/TIA-568.3 |
| Quantity | Pack of 6 |
Frequently Asked Questions
Are these connectors reusable?
No, these are permanent, fusion-spliced, field-installable connectors designed for single-use termination.
Do I need a special tool to install these?
Yes, an appropriate fusion splicer with the correct fiber holder is required to terminate these connectors.
Does this require polishing?
No, the fusion splicing process eliminates the need for field polishing.
Are these compatible with my existing adapter panels?
Yes, they are intermateable with all standard industry SC adapter interfaces.
What does the pack include?
The package contains 6 connectors.
