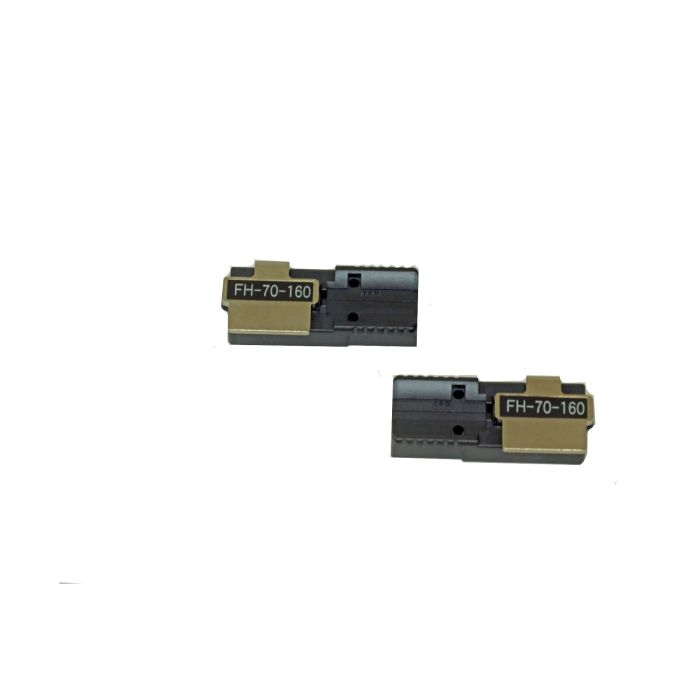

AFL Fusion Splicer Fiber Holders FH-70-160 160um Coated Fiber (Pair)

Overview

The AFL FH-70-160 fiber holders are precision-engineered components designed to secure and align 160μm coated optical fiber during the fusion splicing process. These holders ensure the fiber is held firmly in the correct position relative to the electrodes, promoting consistent splice performance and reducing the likelihood of fiber movement or misalignment during the arc discharge.

Engineered for use in a variety of industrial and field environments, these fiber holders are essential for technicians performing high-precision splicing on specific fiber types. Their robust construction allows for repeated use in demanding field conditions while maintaining the strict tolerances required for reliable, low-loss fusion splicing.

Key Features

• Precision Clamping Mechanism
  Ensures the 160μm coated fiber is held securely, preventing shifting during the alignment and fusion cycles.
• Optimized Alignment
  Designed specifically for 160μm diameter fibers to ensure accurate fiber-to-fiber alignment within the splicer.
• Durable Construction
  Built to withstand frequent handling and the environmental rigors of field splicing operations.
• Consistent Splicing Results
  Facilitates repeatable, low-loss splices by maintaining the fiber at the correct height and orientation.
• Easy Installation
  Enables quick and simple swapping of holders within the compatible fusion splicer platforms.
• Set of Two
  Provided as a pair to allow for both the left and right sides of the fusion splicer to be properly equipped.

Applications

• Fiber optic network installation
• Data center cabling and maintenance
• Telecommunications infrastructure repair
• Precision fusion splicing for specialized fiber types

Technical Specifications

Frequently Asked Questions

What does the FH-70-160 holder pair include?
It includes two fiber holders designed for use on both the left and right sides of a compatible fusion splicer.

What is the primary purpose of these holders?
They secure 160μm coated fiber during the fusion splicing process to ensure stable and accurate alignment.

Are these holders compatible with all fusion splicers?
These are specific to the AFL 70 series and compatible platforms; please verify your specific fusion splicer model before use.

How do I clean the fiber holders?
Use a lint-free cloth and high-purity isopropyl alcohol to keep the fiber grooves and clamping surfaces clean for optimal performance.

What happens if the wrong fiber holder is used?
Using an incorrect holder size can result in fiber misalignment, increased splice loss, or potential damage to the fiber coating.
