AFL LC Connector Multimode 62.5µm 900µm (6 Pack)

Overview

The AFL FAST Connector is a field-installable, multimode LC connector designed to eliminate the need for manual polishing during fiber termination. Utilizing proven mechanical splice technology, this connector features a factory-polished ferrule and a pre-cleaved fiber stub, ensuring precision alignment and consistent, low-loss performance in the field.

Engineered for versatility, the connector is compatible with 900µm buffered fiber and utilizes proprietary index-matching gel to facilitate rapid, high-quality terminations. It is ideal for premise LAN environments, direct equipment termination, and various enterprise network applications where efficient, tool-minimized installation is required.

Key Features

• Factory-Polished Ferrule
  Features a pre-stubbed, factory-polished design that removes the requirement for field polishing, significantly reducing termination time.
• No Epoxy Required
  Eliminates the need for adhesives, messy cleanups, and curing times, accelerating the installation process.
• Precision Mechanical Alignment
  Utilizes advanced mechanical splice technology to ensure consistent, low-loss fiber connectivity.
• Reusable Termination
  The fiber can be successfully reseated if required, providing flexibility during the installation process.
• Visual Fault Indicator (VFI) Compatible
  Incorporates a translucent wedge that allows for a "pass/fail" signal verification when used with a standard VFI.
• Industry-Standard Color Coding
  Color-coded components simplify identification during and after the installation process.

Applications

• LAN/WAN environments
• Premise wiring
• Direct equipment termination
• Data center fiber management

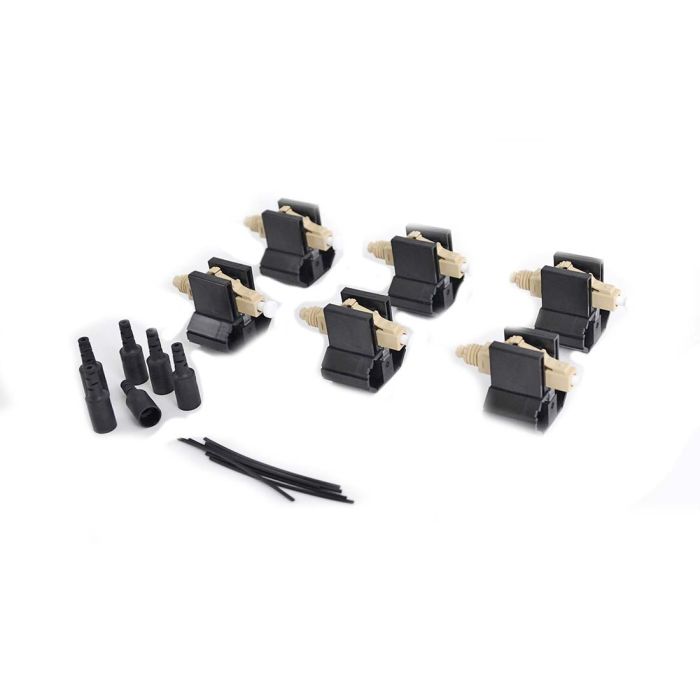

Package Contents

• 6x AFL Multimode LC FAST Connectors
• 6x Installation Wedge Clips

Technical Specifications

Frequently Asked Questions

Are these connectors suitable for single-mode fiber?
No, this specific part number (FASTLCMM6256) is intended for multimode 62.5µm fiber applications only.

Do I need specialized polishing tools for these connectors?
No. The connectors feature a factory-pre-polished ferrule, eliminating the need for any field polishing tools.

How can I verify the quality of the termination?
The connector includes a translucent wedge compatible with standard Visual Fault Indicators (VFI) to provide a simple pass/fail signal upon installation.

Can I remove the connector if the installation is not correct?
Yes, the design allows the fiber to be reseated during the installation process.

What buffer sizes are compatible with these connectors?
This model is specifically designed for 900µm buffered optical fiber.
